Installation Procedure
Install the instrument panel compartment door lock cylinder (1) at the 12 o'clock position while holding the retainer tumbler (2) depressed into the instrument panel compartment door latch (3).
- Return the instrument panel compartment door latch (3) to the close position.
- Ensure proper operation of the instrument panel compartment door lock cylinder (1).
Instrument Panel Compartment Door (1) - Install

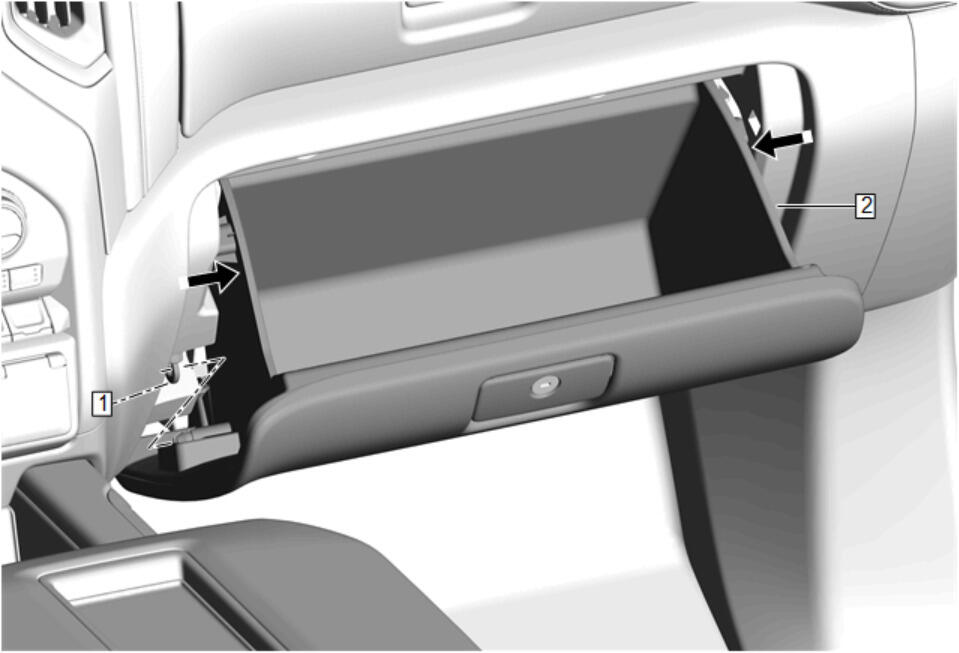

Squeeze the sides of the compartment door (2) and install the compartment door past the stops.
- Connect the instrument panel compartment door dampener (1) to the instrument panel compartment door (2).
- Close the door.
