Installation Procedure

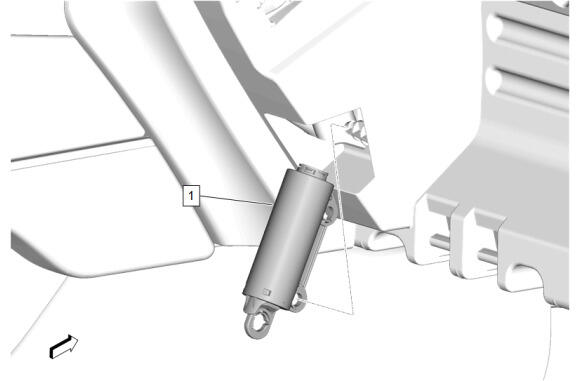

  1. GM5571759Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install

  2. GM5023989Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

  3. GM5023988Courtesy of GENERAL MOTORS COMPANY

    Squeeze the sides of the compartment door (2) and install the compartment door past the stops.

  4. Connect the instrument panel compartment door dampener (1) to the instrument panel compartment door (2).
  5. Close the door.
