Installation Procedure

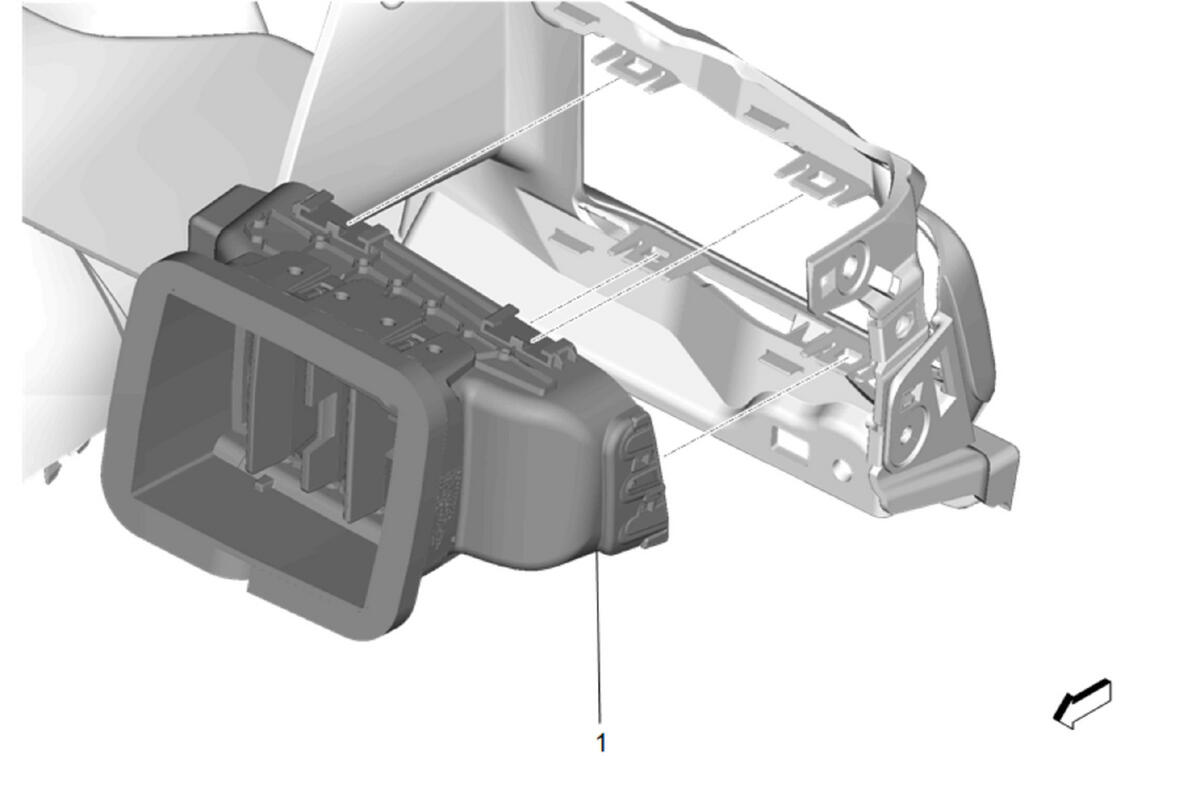

  1. GM5601003Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Install

  2. Ensure that the retaining tabs are fully secured.

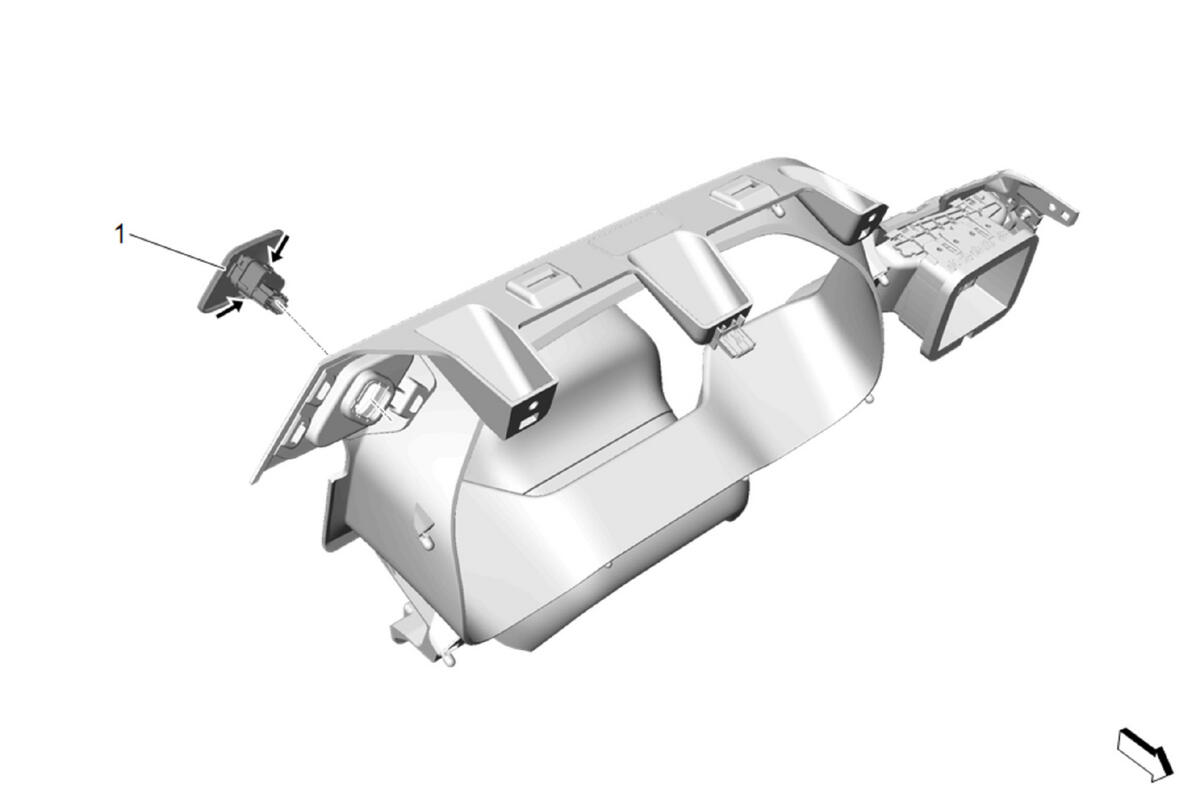

  3. GM5607366Courtesy of GENERAL MOTORS COMPANY

    Hazard Warning Switch (1) - Install

  4. Ensure that the retaining tabs are fully secured.

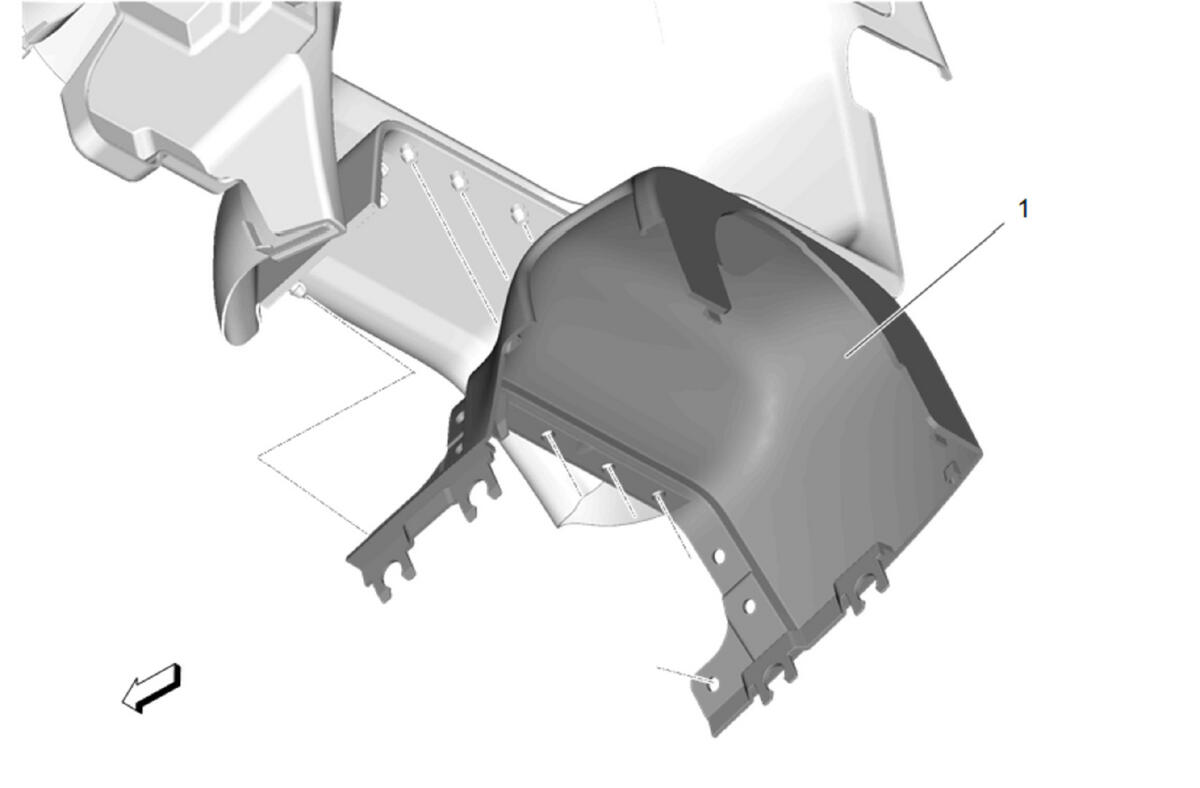

  5. GM5600996Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout to the instrument panel steering column upper trim cover (1).

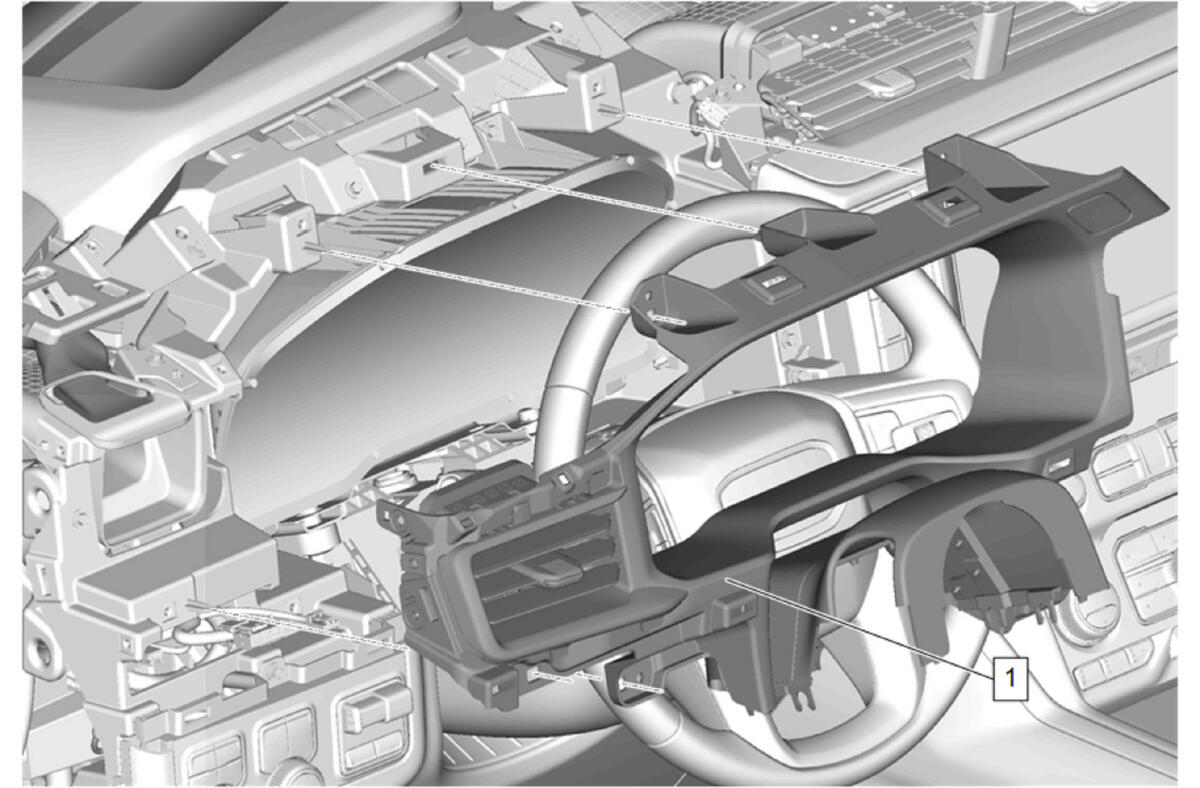

  6. GM5601001Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  7. Instrument Panel Cluster Trim Plate (1) - Install

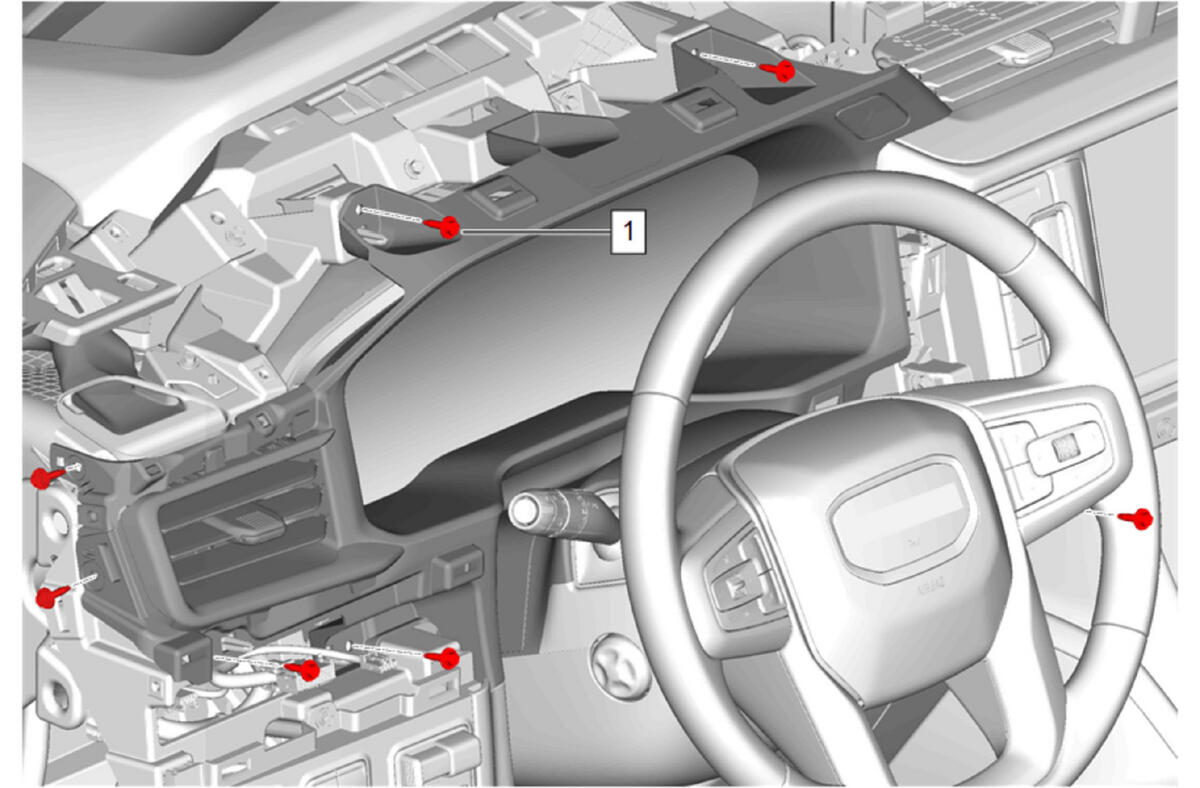

  8. GM5600999Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 7x ] - Fastener Specifications

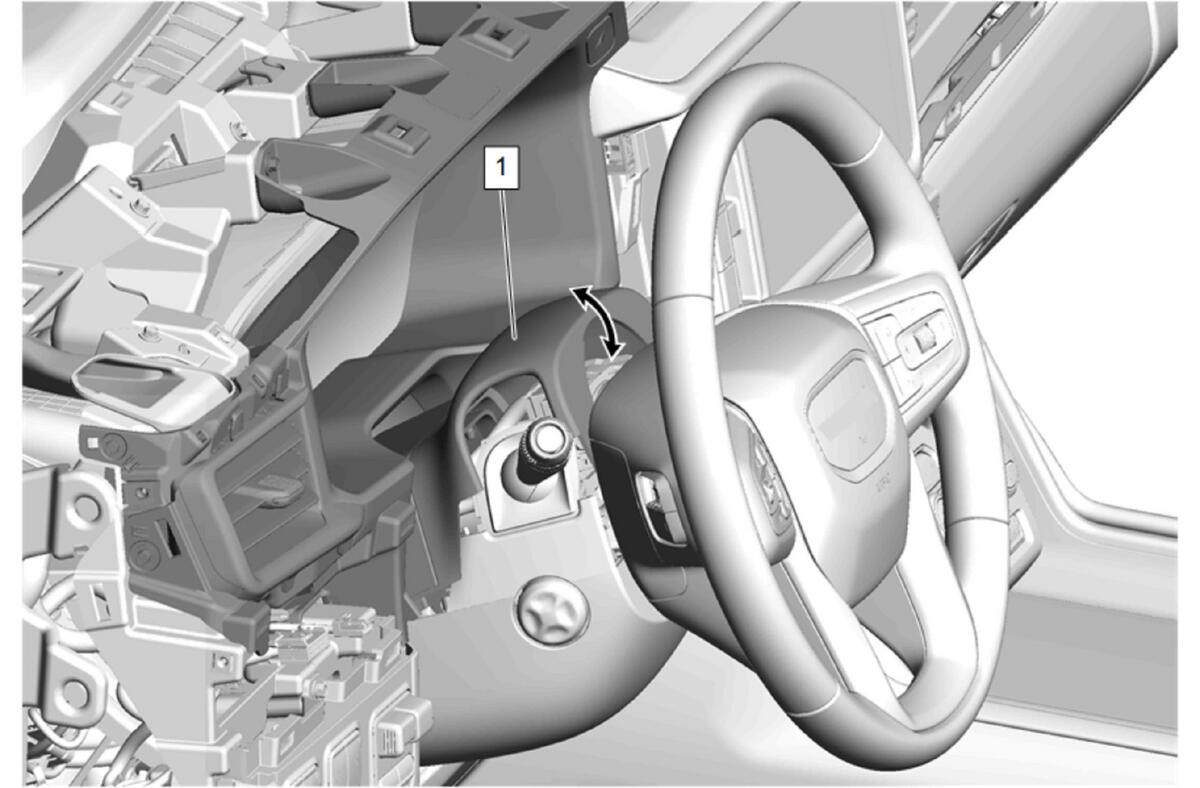

  9. GM5600995Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  10. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Trim Pad (2) - Install
  12. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  13. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  14. Instrument Panel Trim Pad (2) - Install
  15. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  16. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

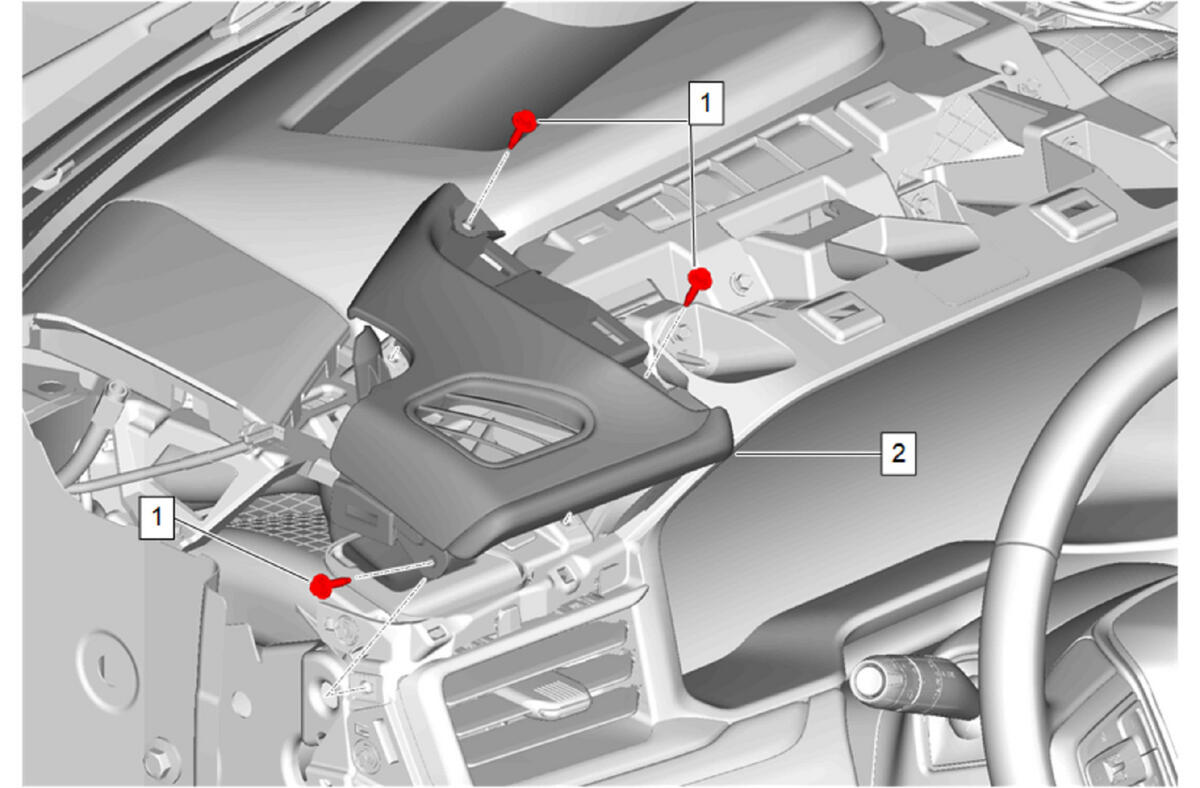

  17. GM5596404Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (2) - Install

  18. Instrument Panel Upper Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  19. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  20. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

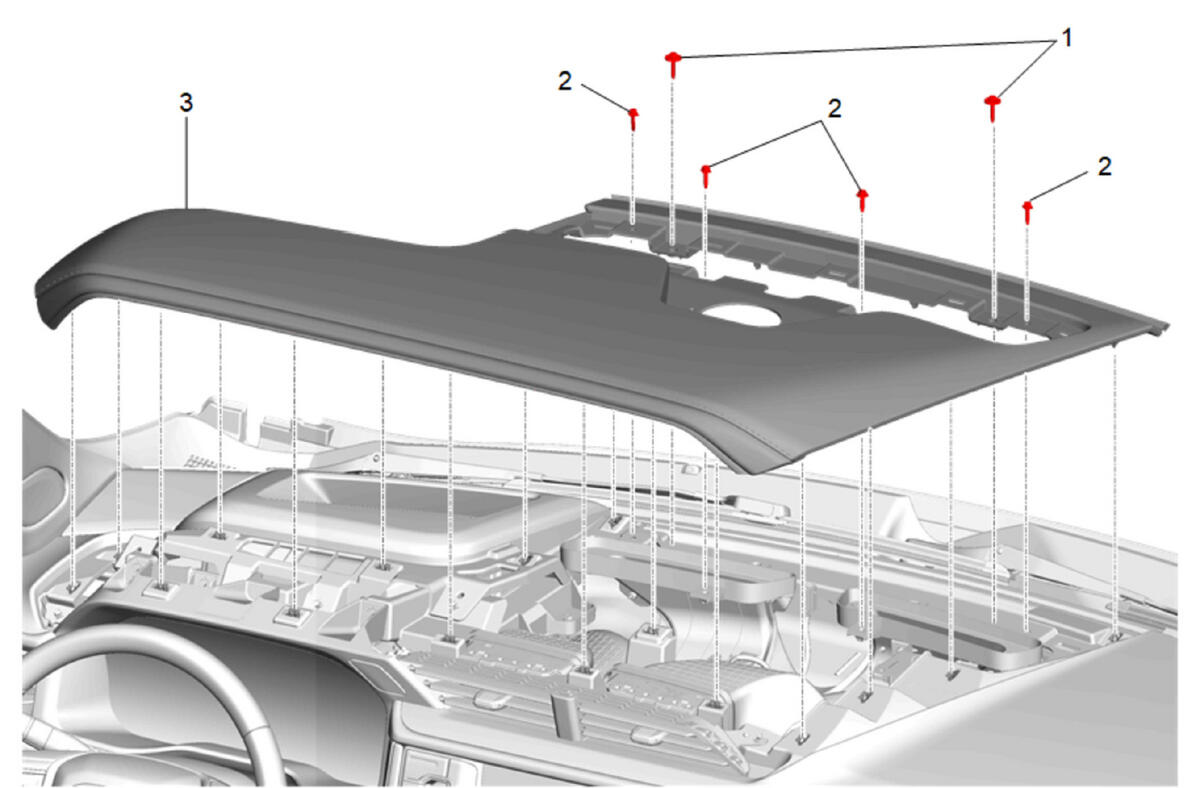

  21. GM5591131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (3) - Install

  22. Instrument Panel Upper Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
  23. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

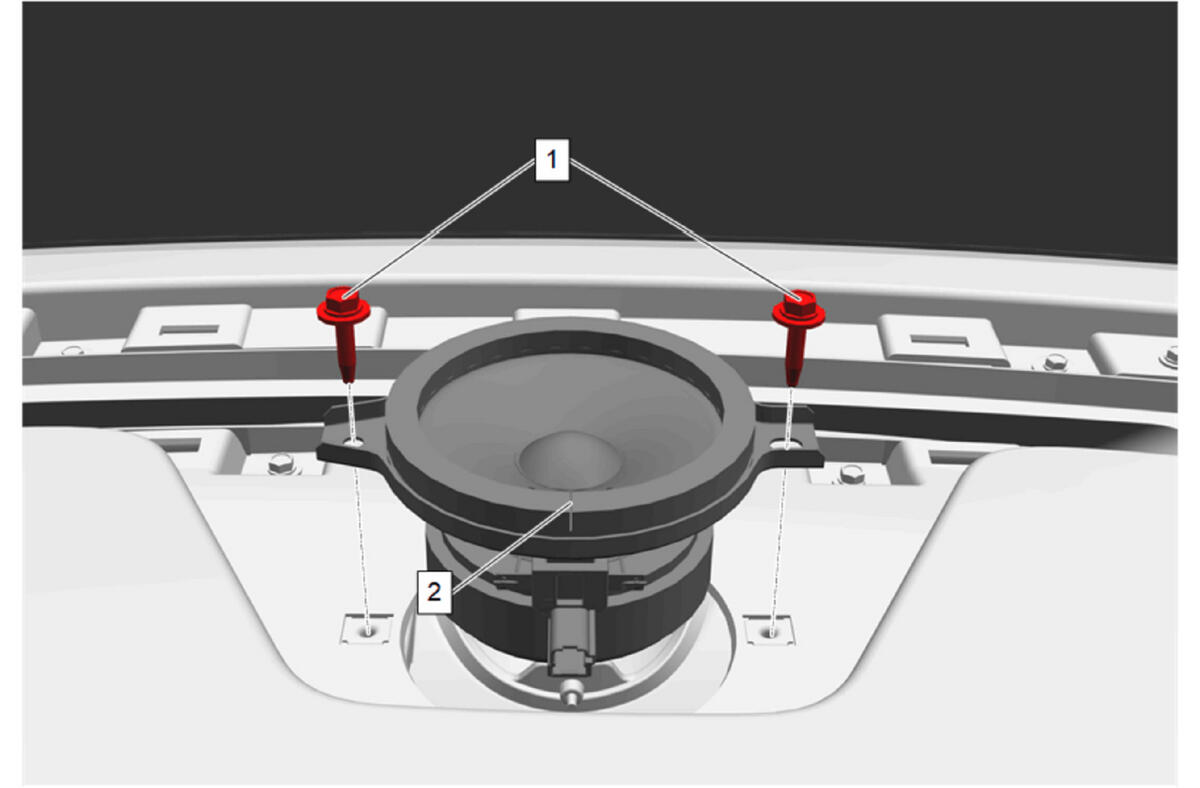

  24. GM5605303Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  25. Radio Front Center Speaker (2) - Install
  26. Radio Front Center Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  27. GM5590605Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  28. Instrument Panel Extension (1) - Install

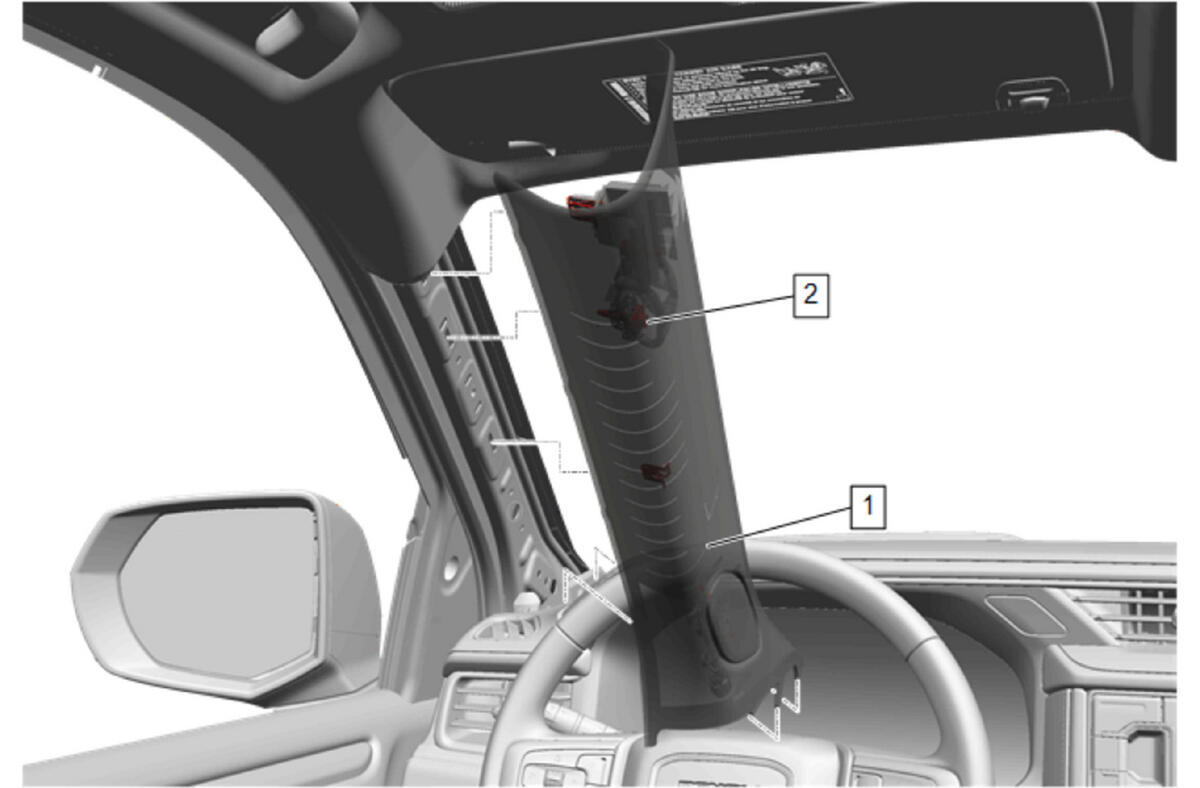

  29. GM5589207Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

  30. Connect the electrical connector.
  31. Windshield Garnish Molding (1) - Install
  32. Enable the SIR System. SIR Disabling and Enabling
