Installation Procedure

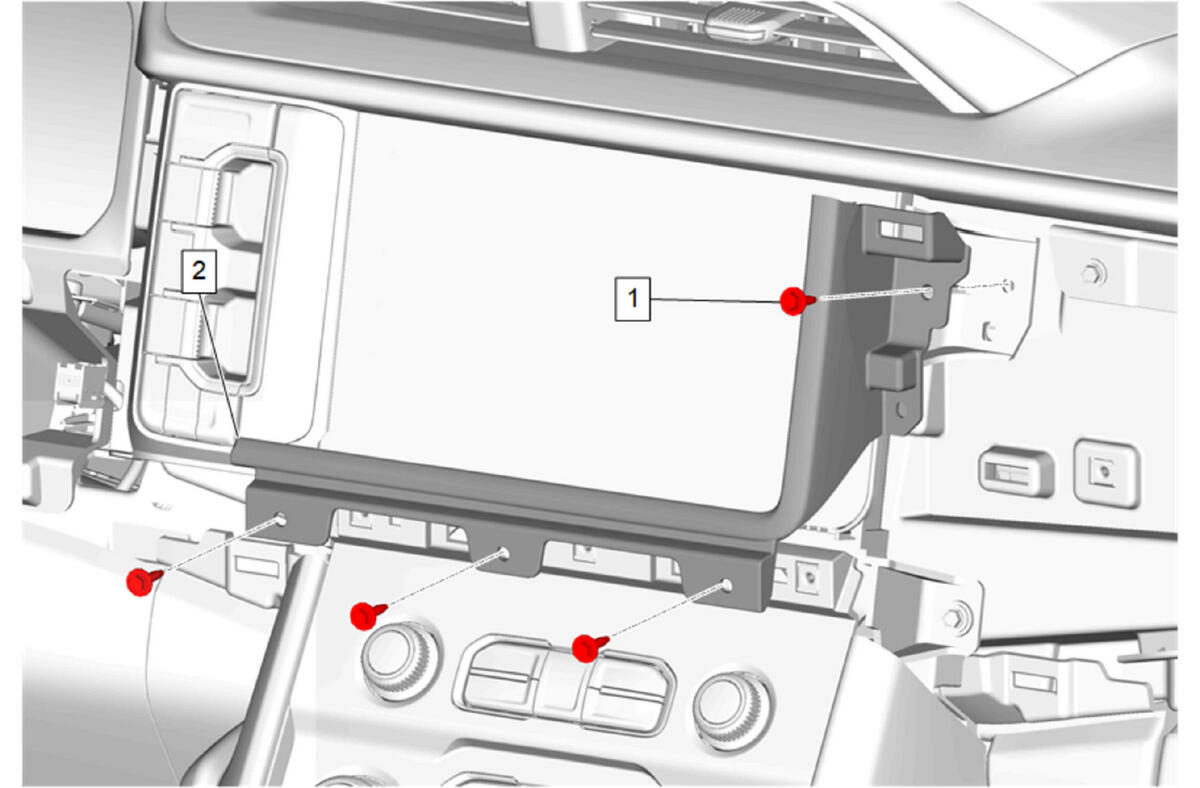

  1. GM5605290Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Accessory Trim Plate Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

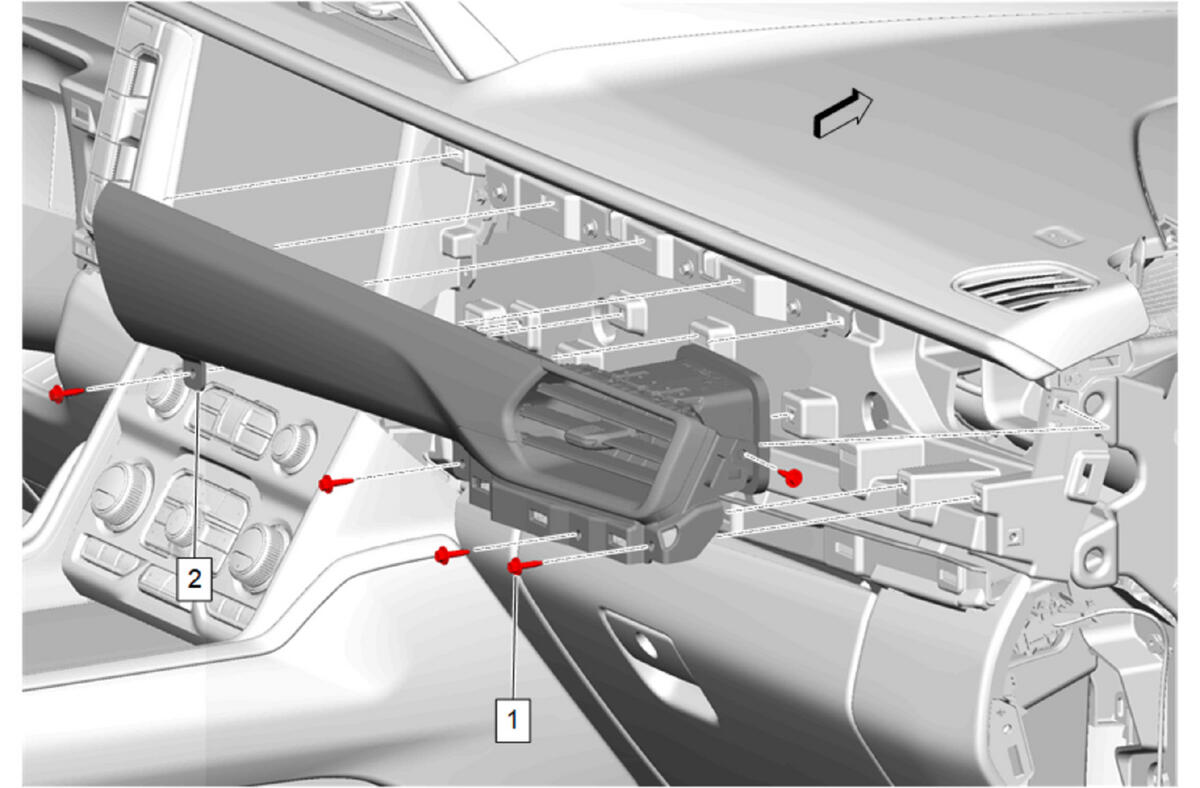

  3. GM5599068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install

  4. Instrument Panel Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
  5. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Instrument Panel Trim Pad (2) - Install
  7. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  8. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install
