Installation Procedure

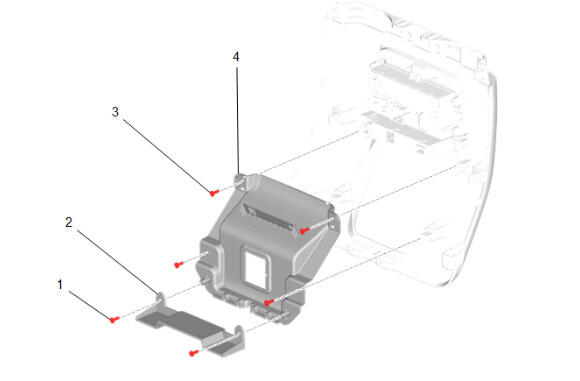

  1. GM5697000Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Trim Plate (4) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Floor Compartment Bolt (3) - Install and tighten [ 4x ] - Fastener Specifications
  3. Front Floor Console Opening Protector (2) - Install
  4. Front Floor Lower Console Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

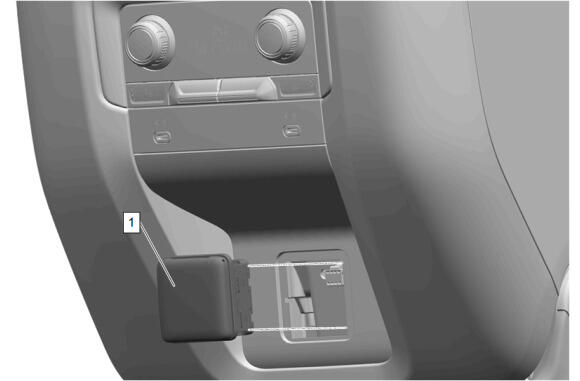

  5. GM5572440Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Power Rear Receptacle (1) - Install

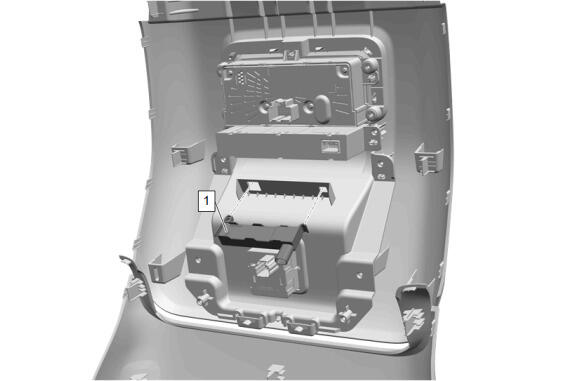

  6. GM5575867Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Number 2 Antenna (1) - Install

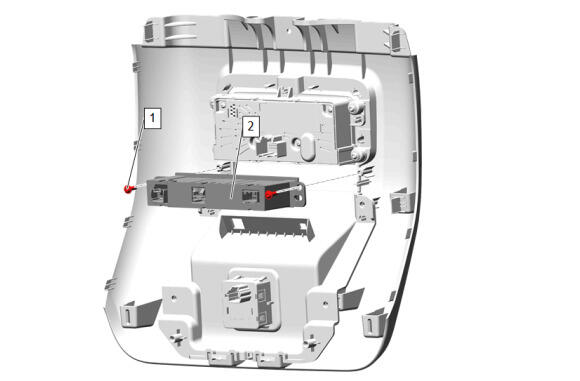

  7. GM5539282Courtesy of GENERAL MOTORS COMPANY

    Audio/Video Receptacle (2) - Install

    8. CAUTION:

    Refer to Fastener Caution .

  8. Front Floor Console Armrest Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  9. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  10. Front Floor Console Rear Trim Panel (2) - Install
  11. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  12. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  13. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    14. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  14. Front Floor Console Rear Cup Holder Liner (1) - Install
