Installation Procedure

  1. GM5572440Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Power Rear Receptacle (1) - Install

  2. GM5575867Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Number 2 Antenna (1) - Install

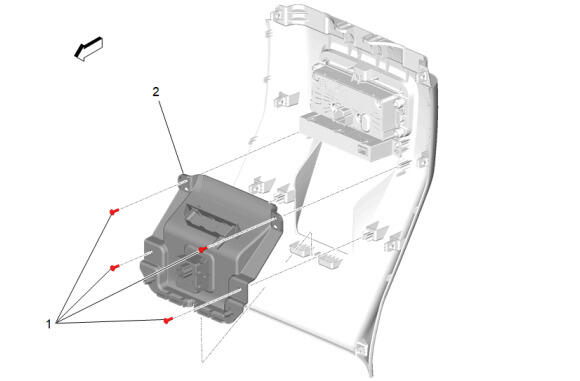

  3. GM5569591Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Trim Plate (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Floor Compartment Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  5. GM5549536Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. Front Floor Console Rear Trim Panel (2) - Install
  7. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  8. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  9. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    10. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  10. Front Floor Console Rear Cup Holder Liner (1) - Install
