Installation Procedure

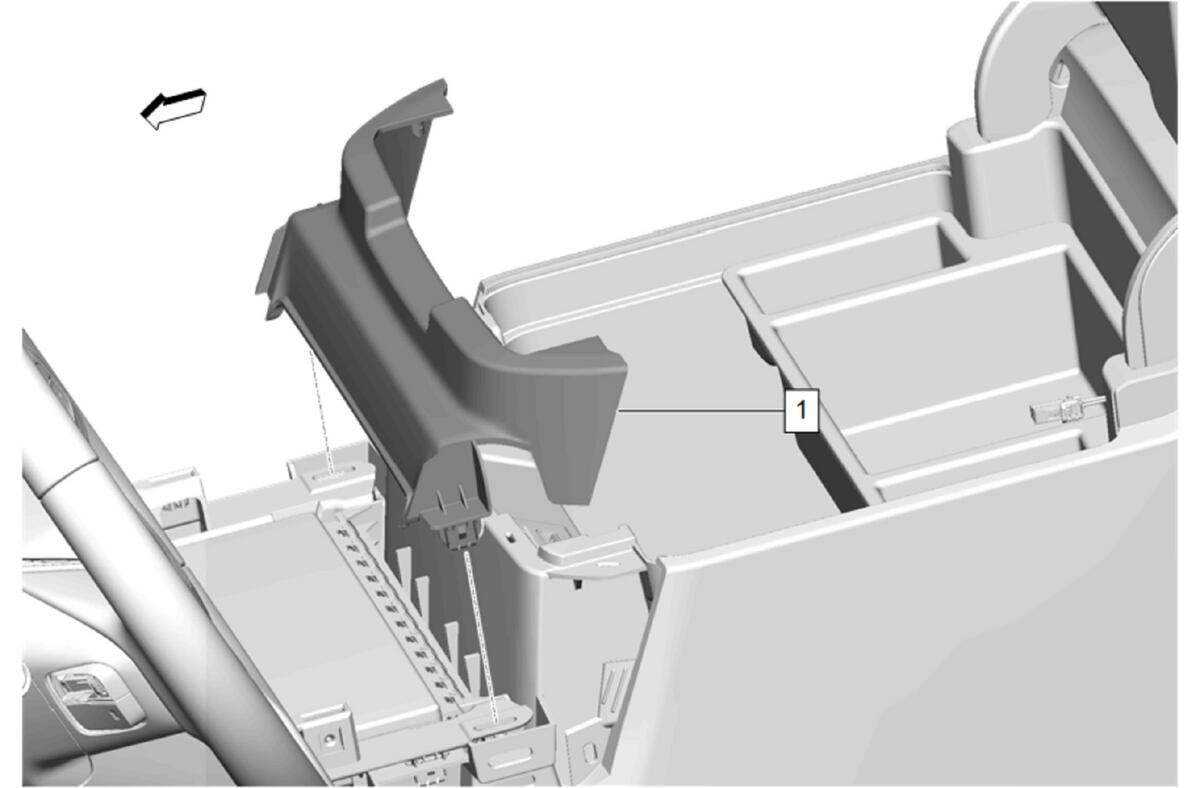

  1. GM5607648Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  2. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  4. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  5. GM5604950Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  6. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  7. GM5604836Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install
