Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder Liner (1) - Remove
Front Floor Console Cup Holder Bolt (2) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Rear Cup Holder (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

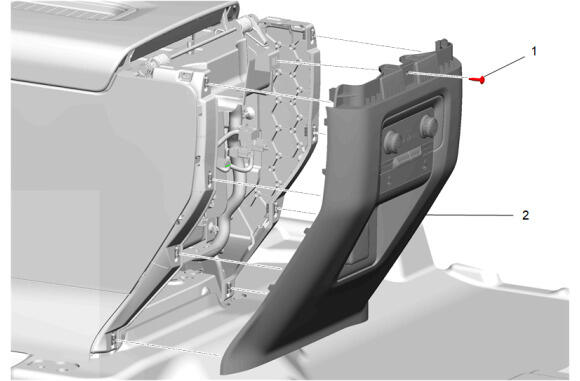

Front Floor Console Rear Cover Bolt (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Rear Trim Panel (2) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

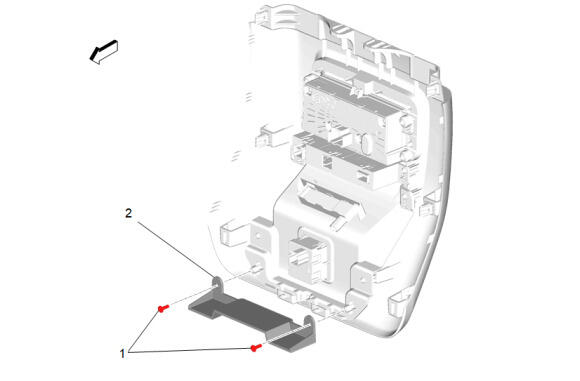

Front Floor Lower Console Bolt (1) - Remove [ 2x ]
Front Floor Console Opening Protector (2) - Remove
