Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

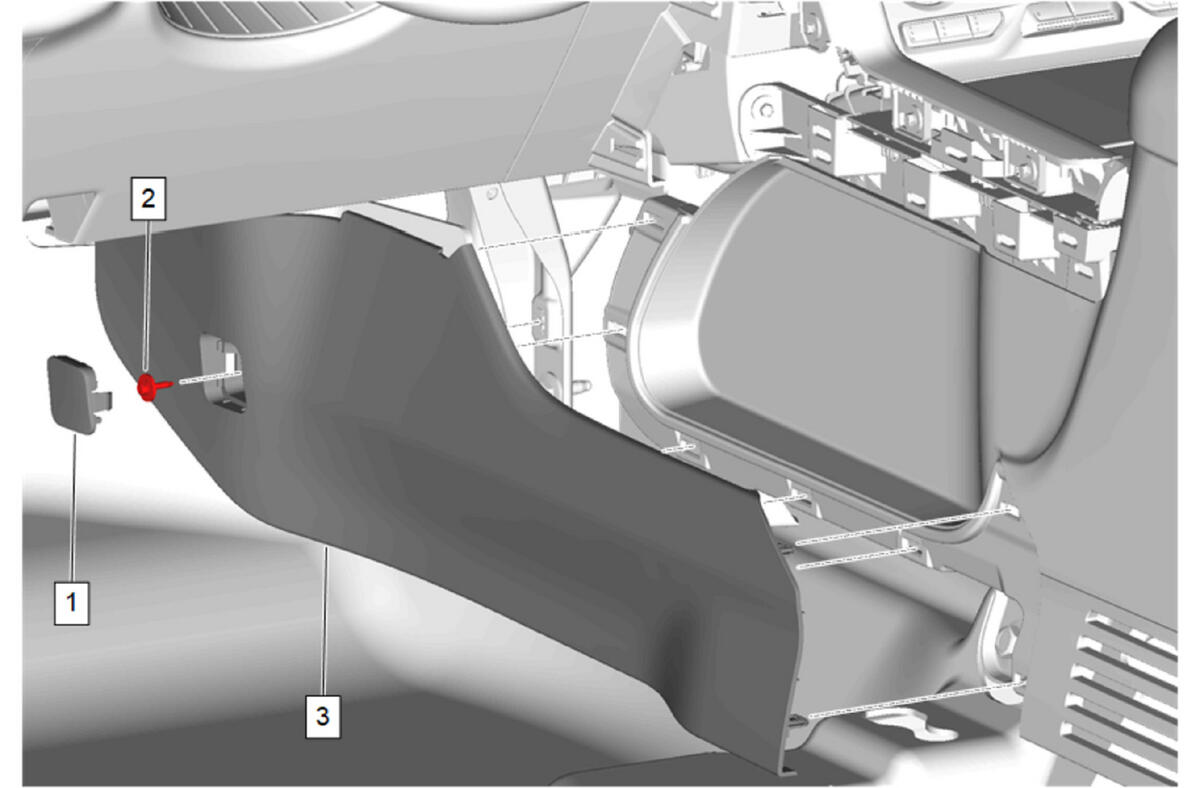

Front Floor Console Extension Panel (3) - Install

CAUTION:

Refer to Fastener Caution .

Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

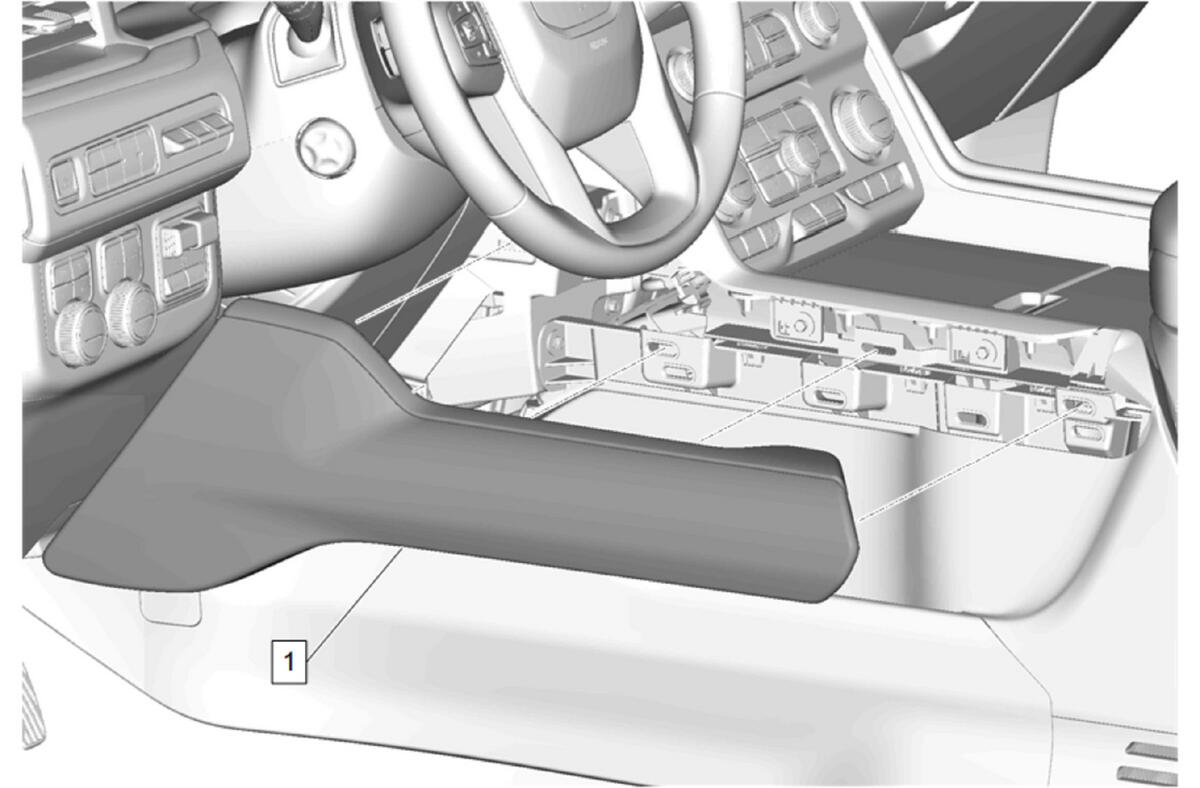

Front Floor Console Applique (1) - Install
