Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

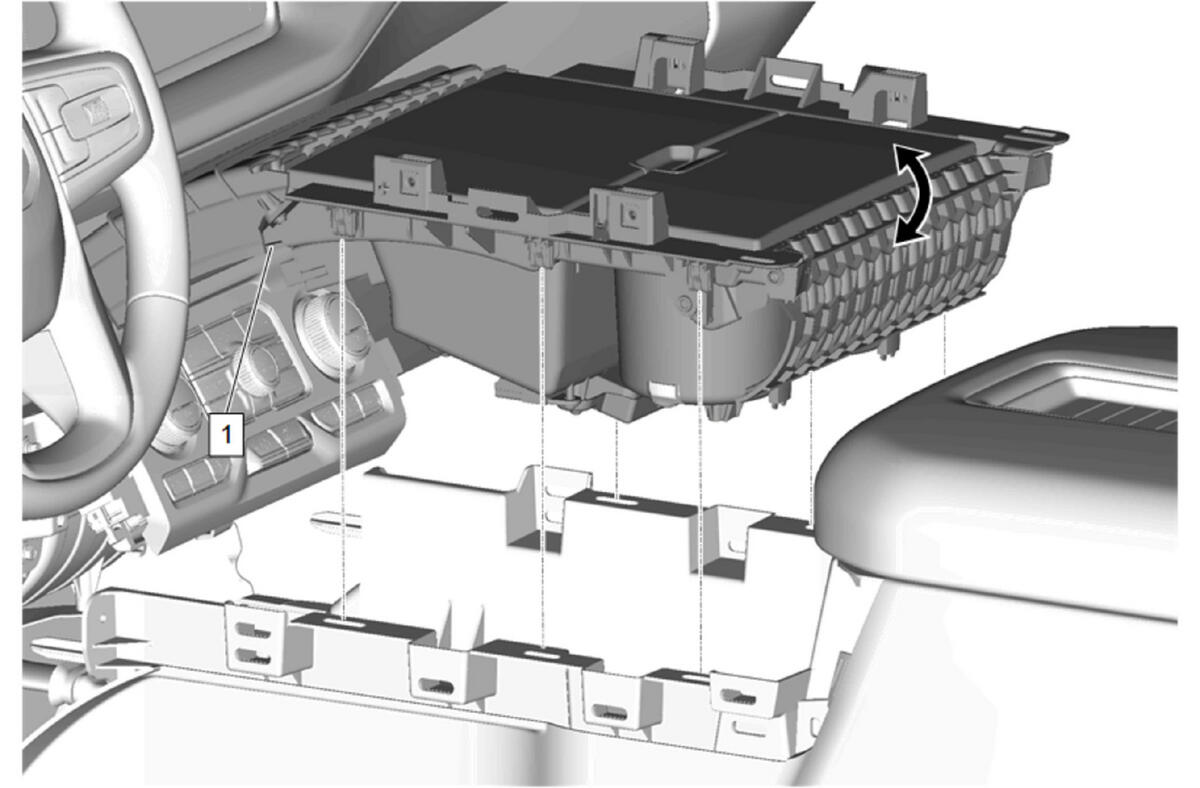

Front Floor Console Cup Holder Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

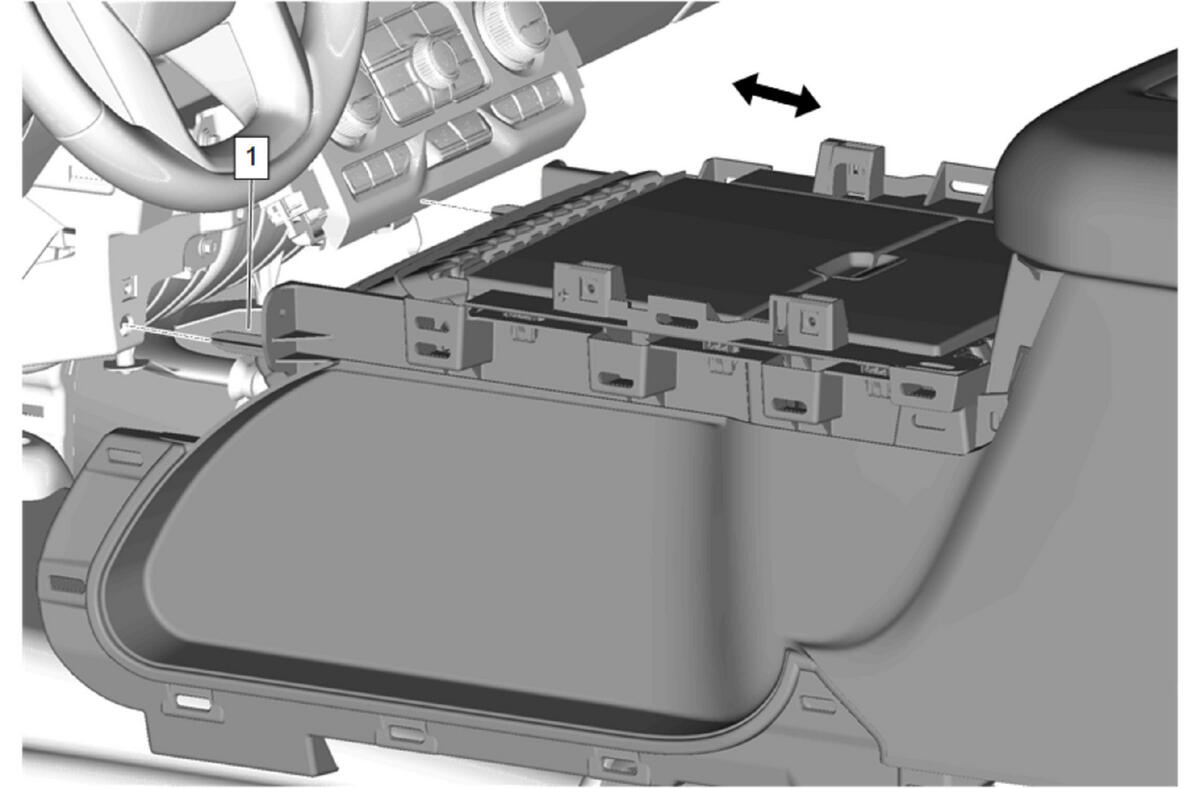

Slide the front floor console (1) back into the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Retainer Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Front Floor Console Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Floor Console Applique (2) - Install
Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (3) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Floor Console Applique (2) - Install
Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat (2) - Install [ 2x ] - Front Seat Removal and Installation
