Installation Procedure

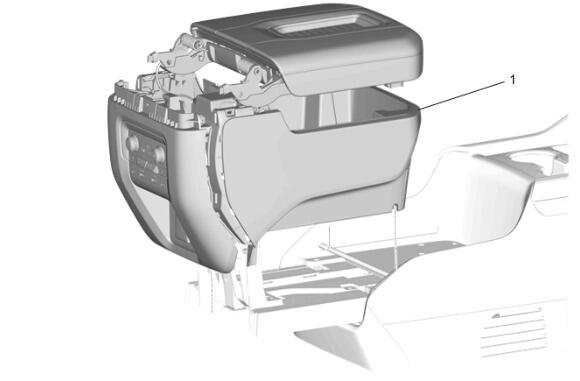

  1. GM5577795Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

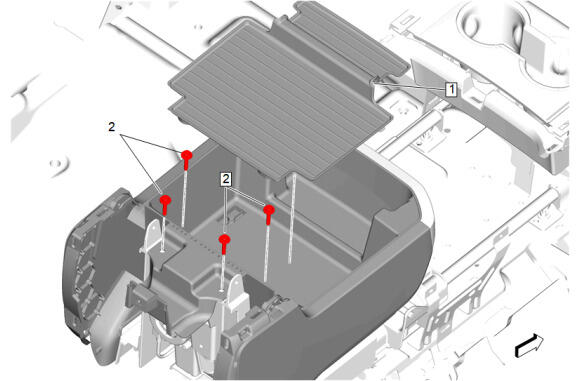

  2. GM5577794Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications

  3. Front Floor Console Compartment Liner (1) - Install

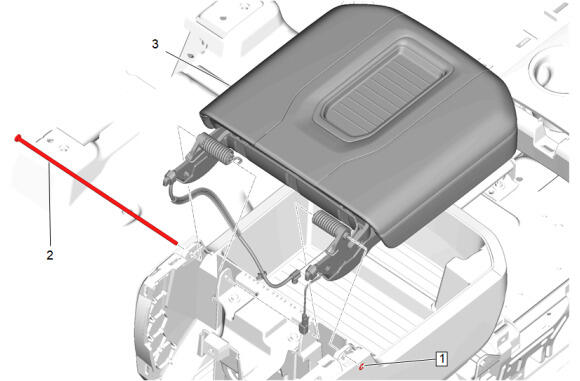

  4. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  5. Front Floor Console Armrest Pivot Pin (2) - Install
  6. Front Floor Console Armrest Hinge Clip (1) - Install

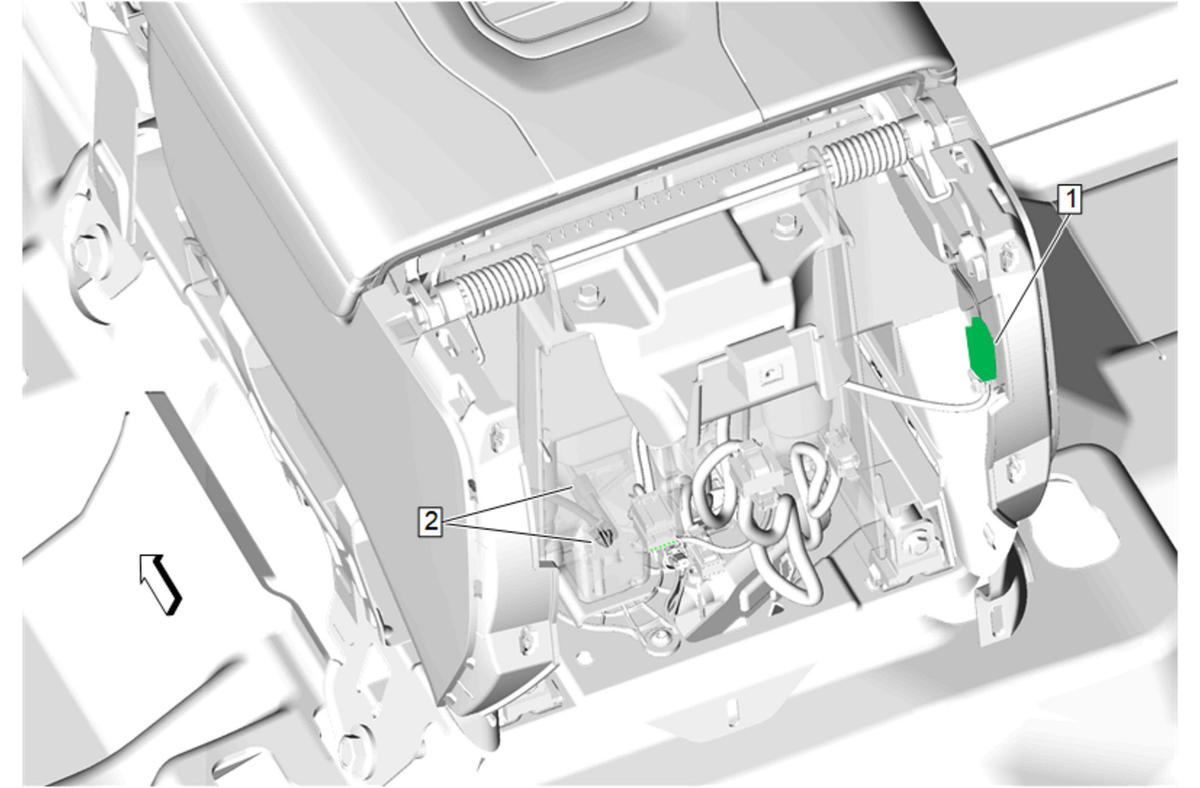

  7. GM5549158Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

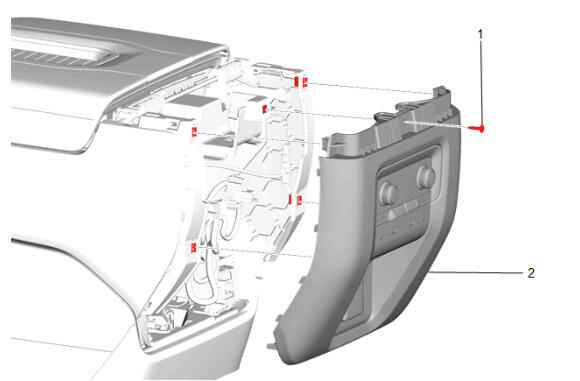

  8. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (2) - Install

  9. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications

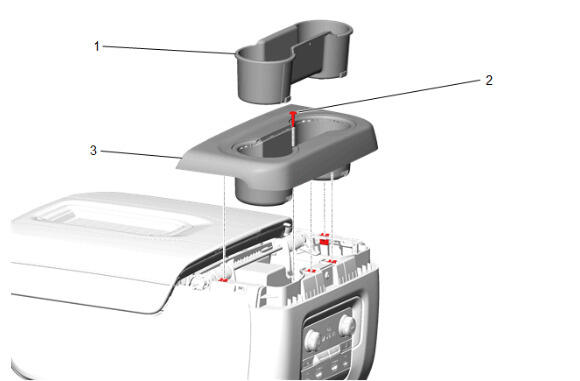

  10. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  11. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    12. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  12. Front Floor Console Rear Cup Holder Liner (1) - Install
