Installation Procedure

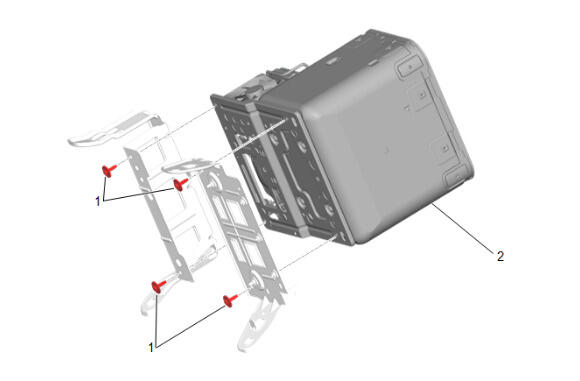

Front Floor Console Compartment Cooler (2) - Install
- Front Floor Console Compartment Cooler Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

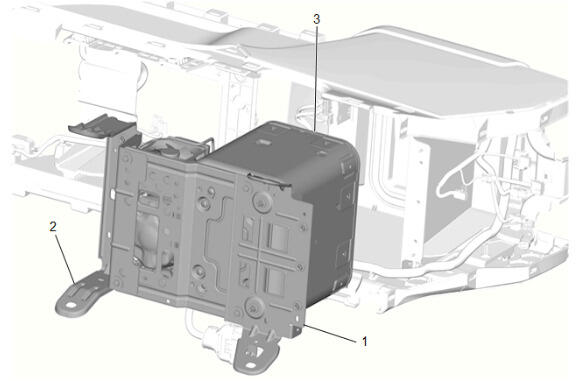

Install front floor console bracket (1), front floor console intermediate bracket (2) and front floor console compartment cooler (3) as an assembly into the front floor console and connect the electrical connector.

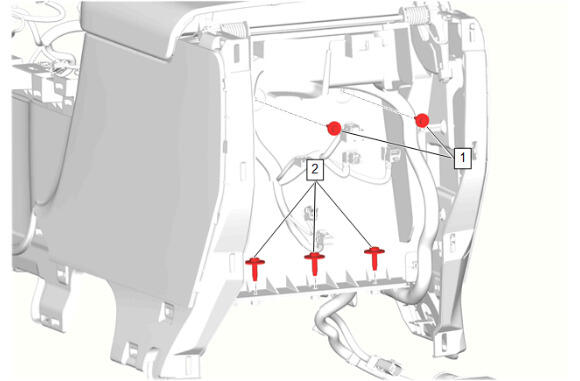

Front Floor Console Compartment Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
- Front Floor Console Rear Bracket Bolt (2) - Install and tighten [ 3x ] - Fastener Specifications

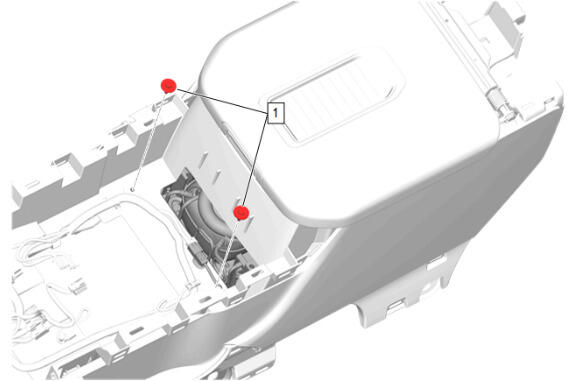

Front Floor Console Intermediate Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Connect the electrical connectors.

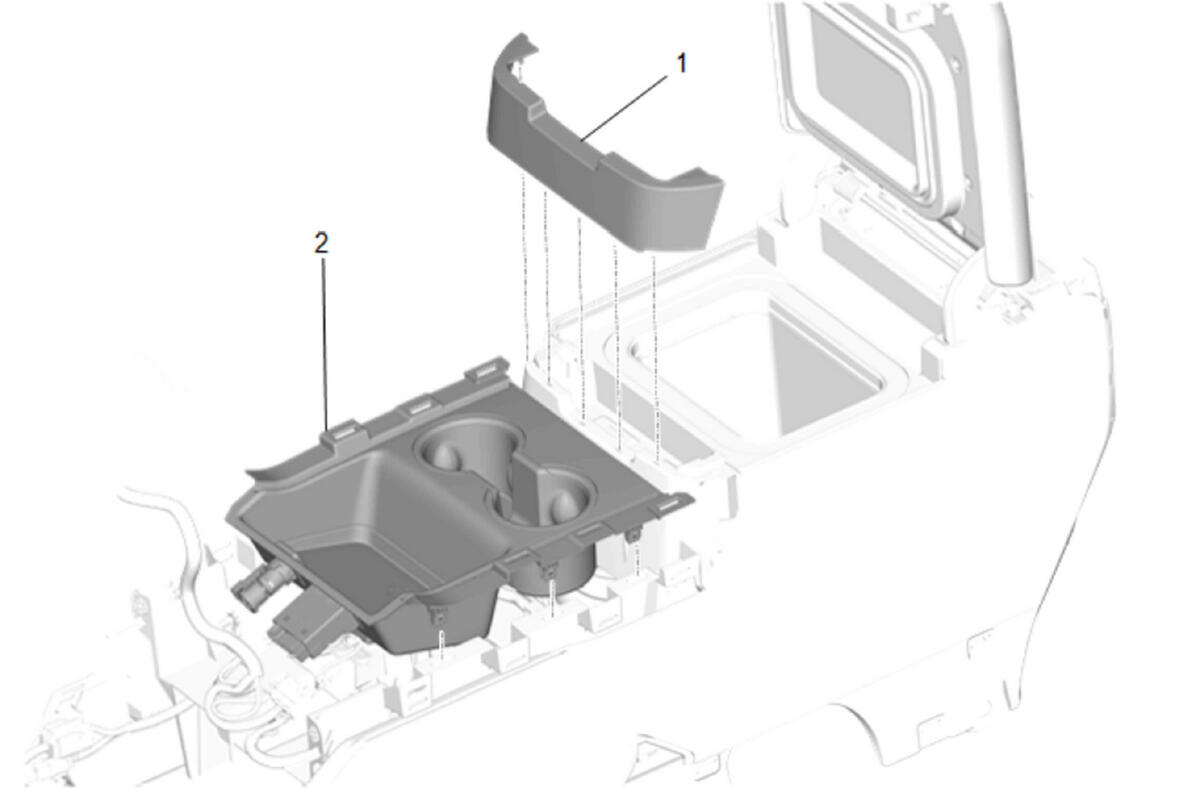

- Front Floor Console Cup Holder Trim Plate (2) - Install
- Front Floor Rear Console Side Trim Panel (1) - Install
Connect the electrical connectors.
- Front Floor Console Rear Trim Panel (2) - Install
- Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
Front Floor Console Rear Cup Holder (3) - Install
- Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Rear Cup Holder Liner (1) - Install

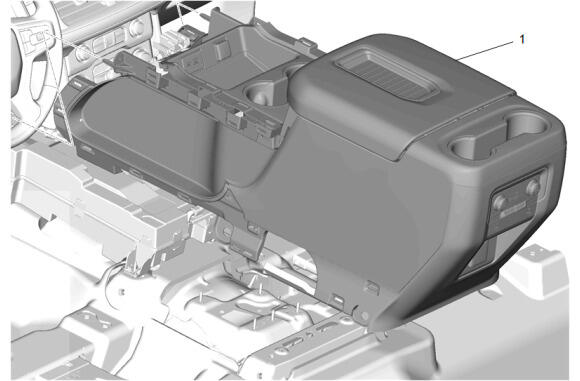

Front Floor Console - Install - Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
- Perform the necessary programming and setup procedure: Control Module References
Refer to Fastener Caution .
Make sure the liner is properly seated under the front floor console compartment bezel.
