Installation Procedure

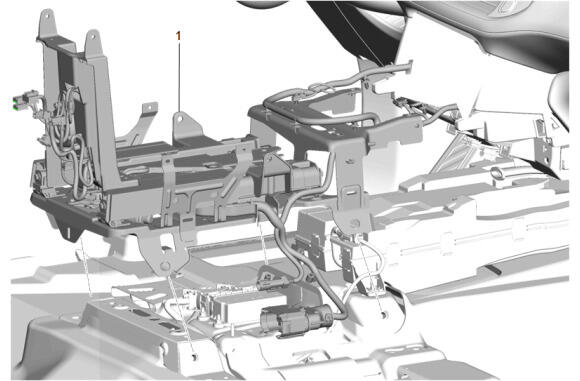

  1. GM5577803Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Base (1) - Install

  2. Connect and position the wiring harness.

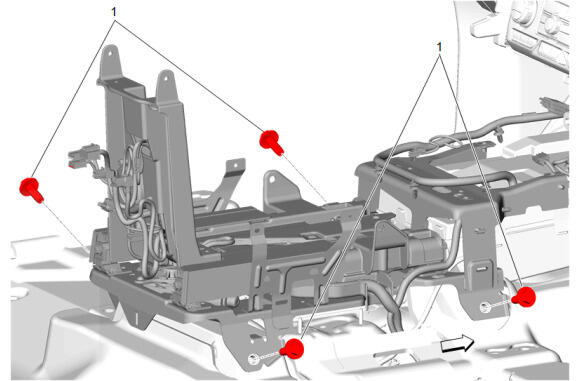

  3. GM5577801Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

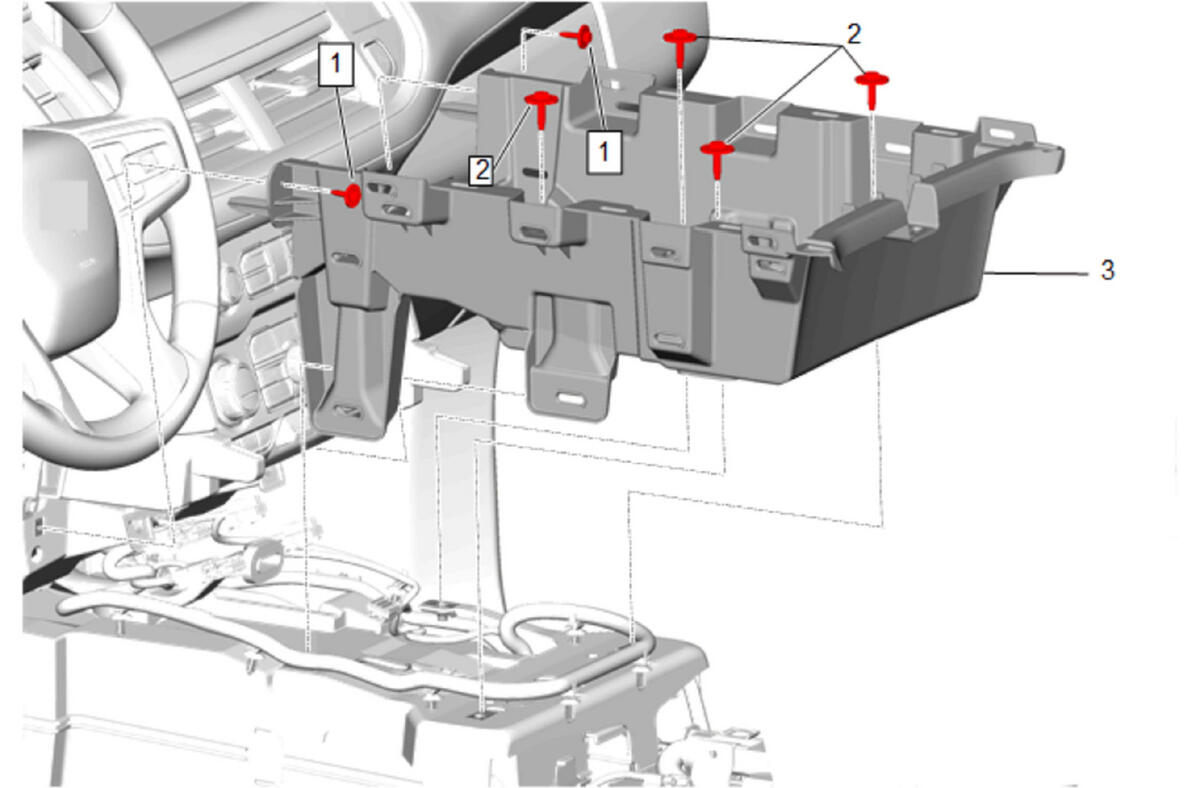

  4. GM5552326Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  5. Front Floor Console Carrier (3) - Install
  6. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
  7. Front Floor Console Retainer Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

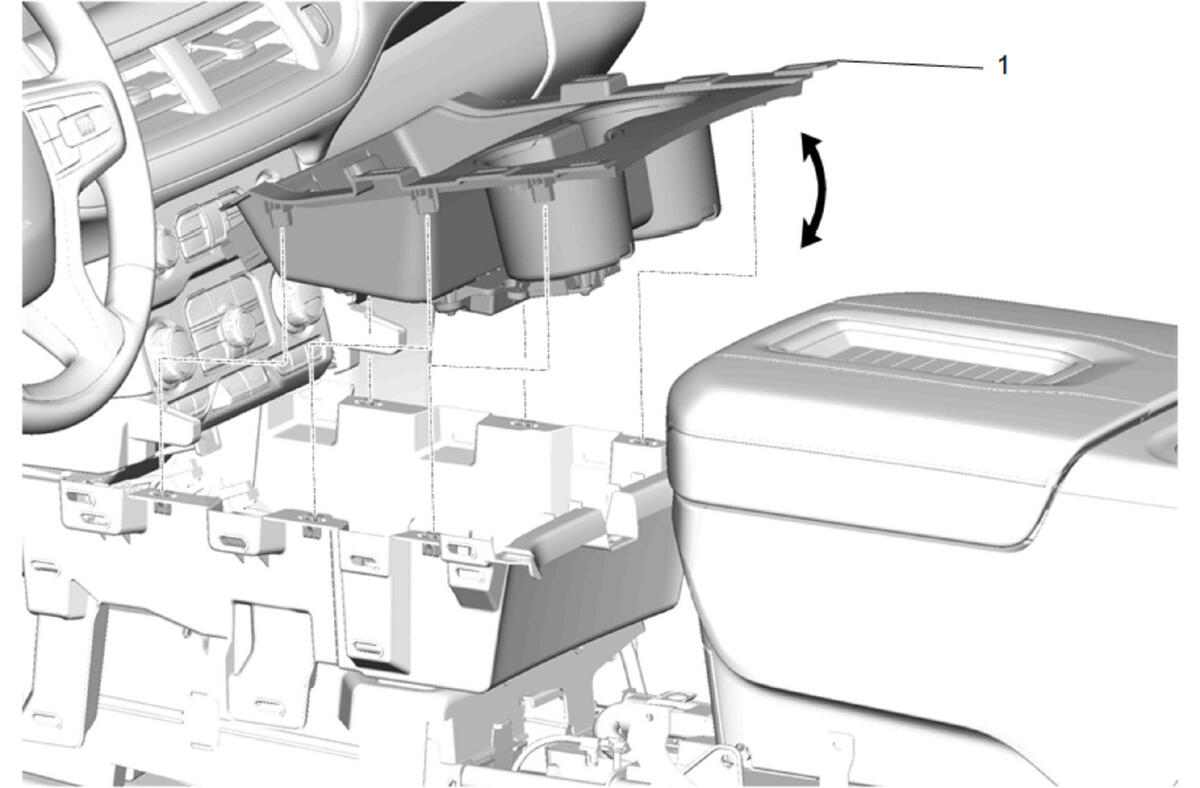

  8. GM5552325Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Front Floor Console Cup Holder Trim Plate (1) - Install

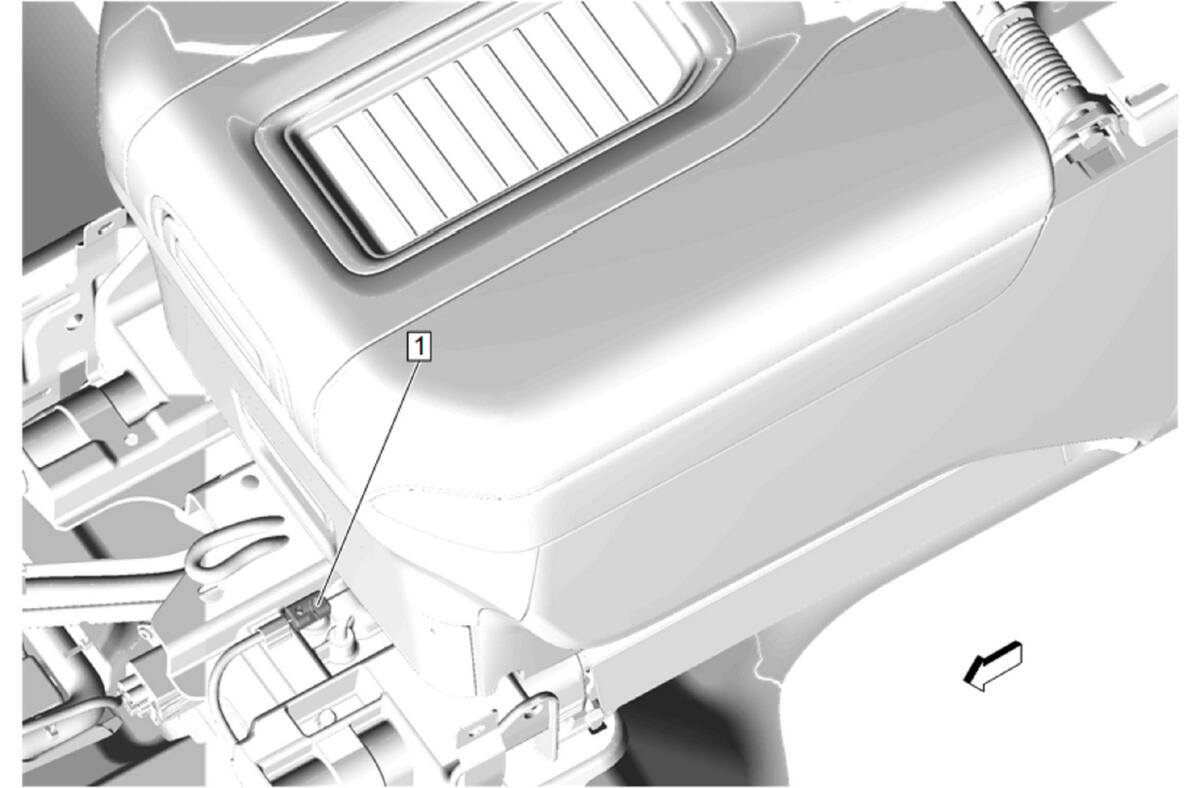

  10. GM5549159Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union and set the front floor console armrest to the side.

    11. NOTE:

    The vehicle may not be equipped with the retainers listed below.

  11. Install the 2 front floor console armrest cable retainers.

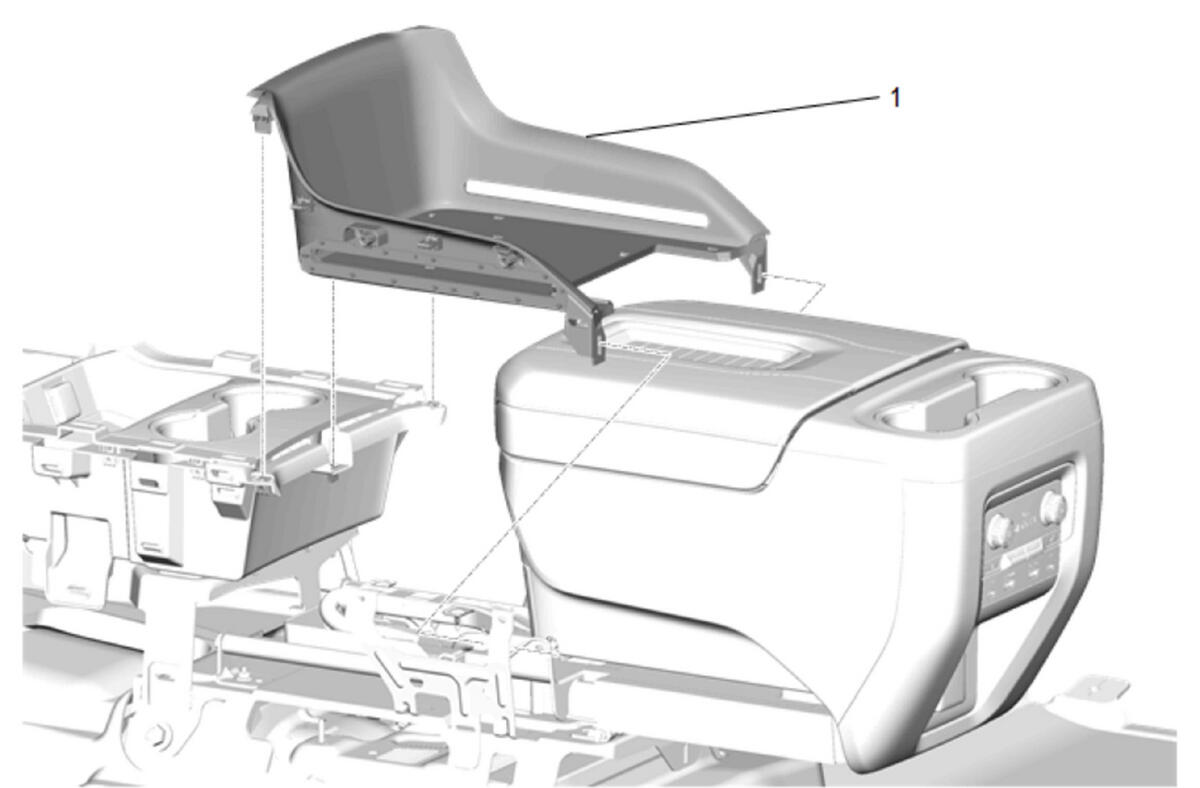

  12. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

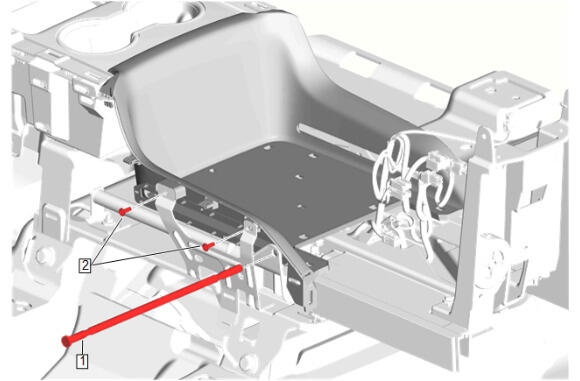

  13. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  14. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

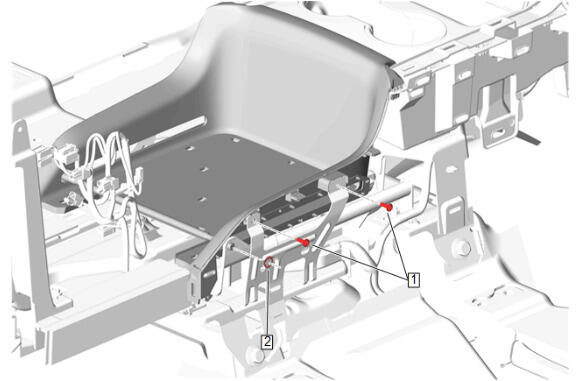

  15. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  16. Front Floor Console Armrest Hinge Clip (2) - Install
  17. GM5577795Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  18. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications

  19. Front Floor Console Compartment Liner (1) - Install
  20. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  21. Front Floor Console Armrest Pivot Pin (2) - Install
  22. Front Floor Console Armrest Hinge Clip (1) - Install
  23. GM5549158Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  24. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  25. Front Floor Console Rear Trim Panel (2) - Install
  26. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  27. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  28. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    29. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  29. Front Floor Console Rear Cup Holder Liner (1) - Install

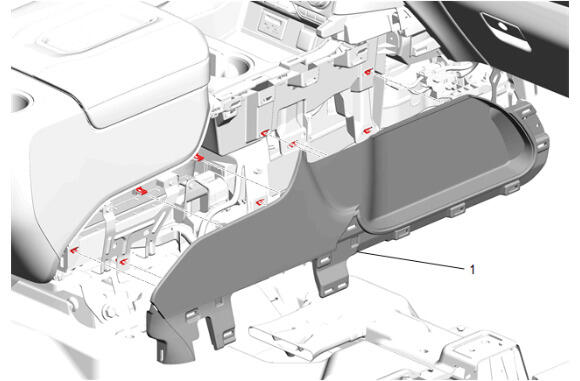

  30. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  31. Front Floor Rear Console Side Trim Panel (1) - Install

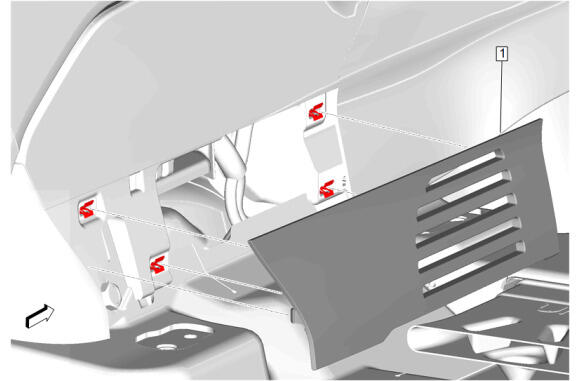

  32. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

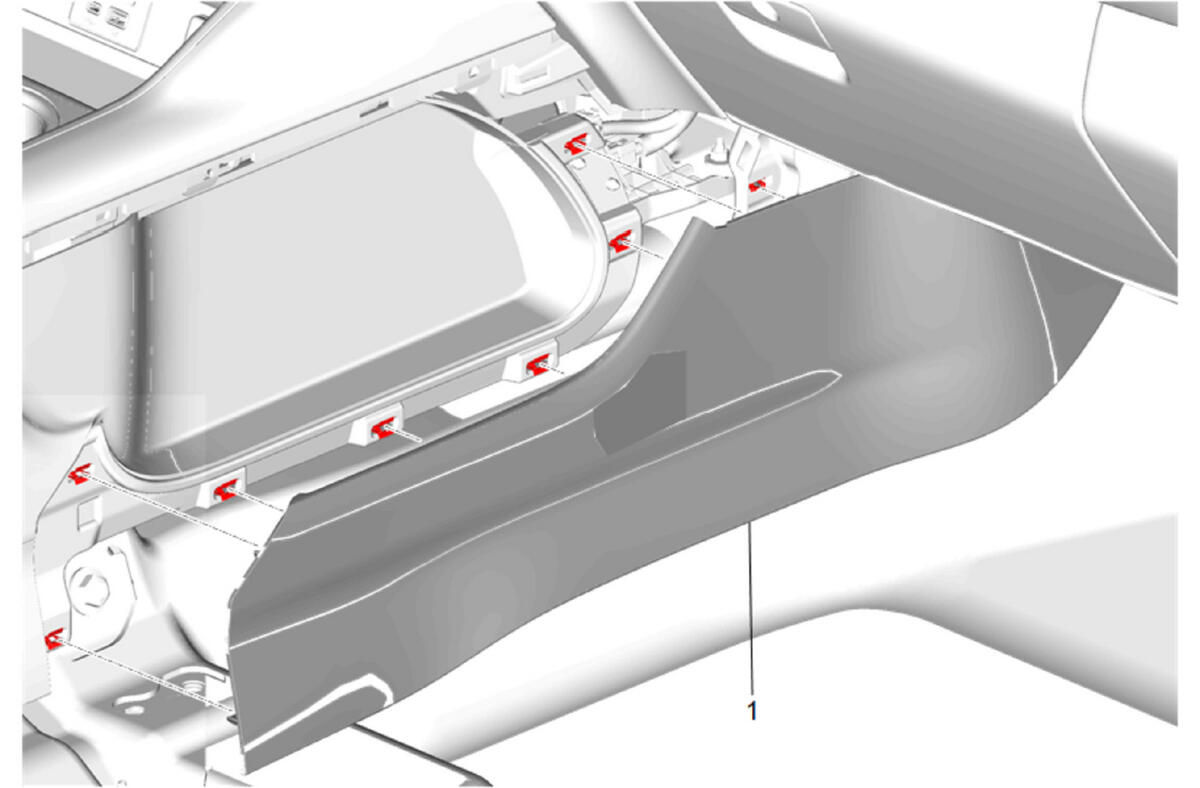

  33. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

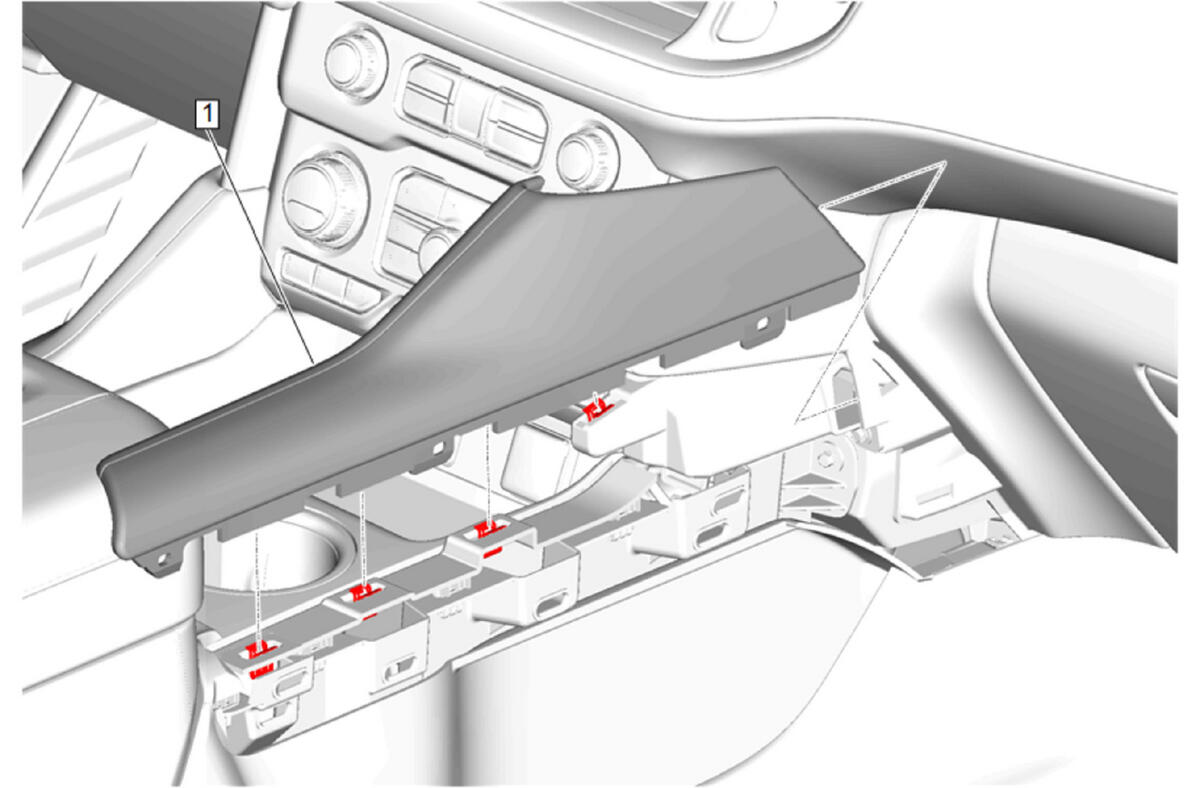

  34. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

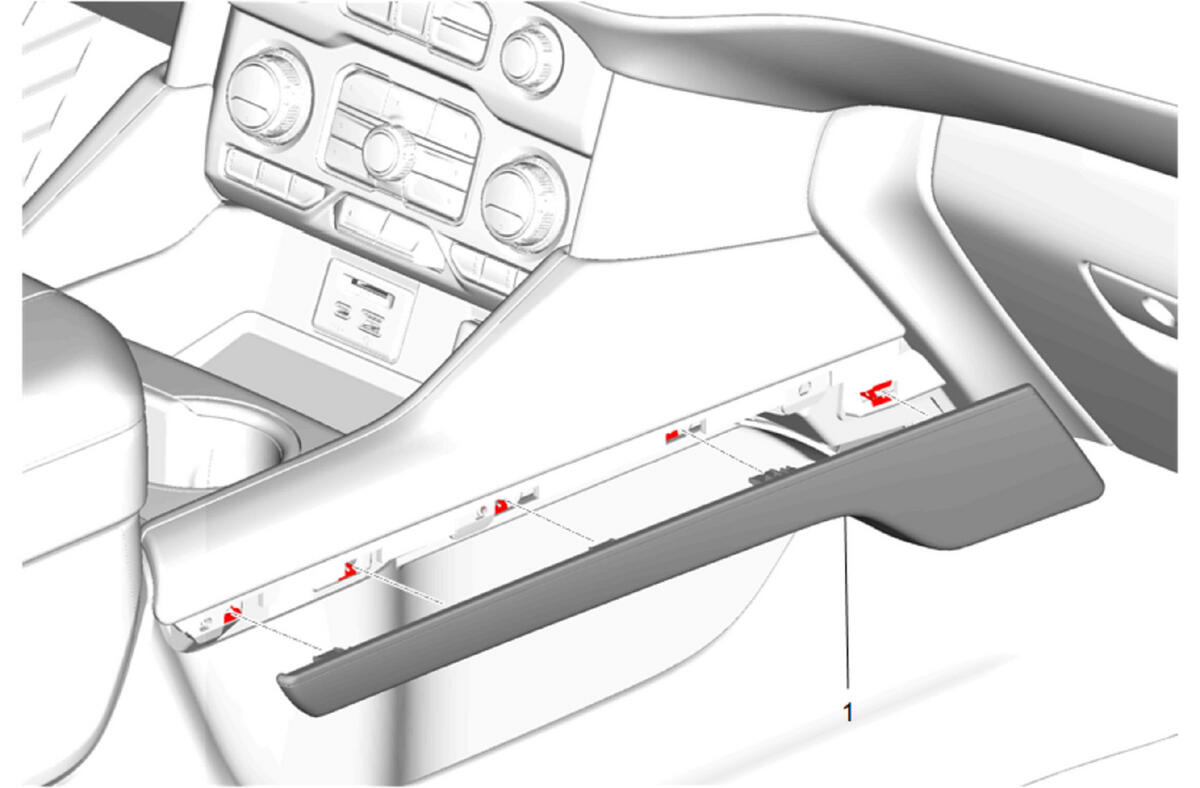

  35. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

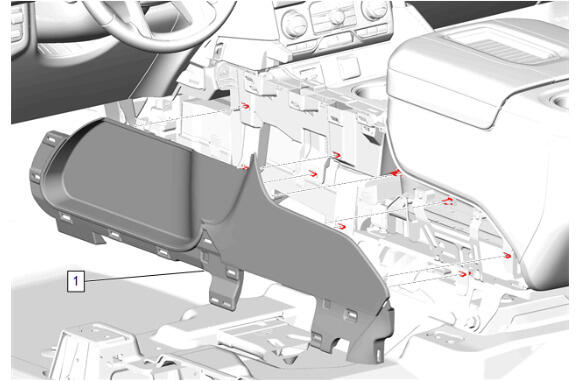

  36. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

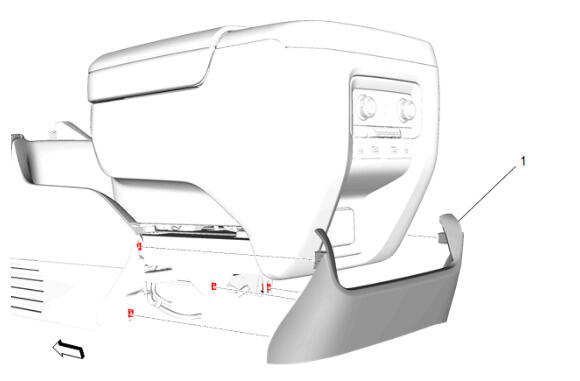

  37. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

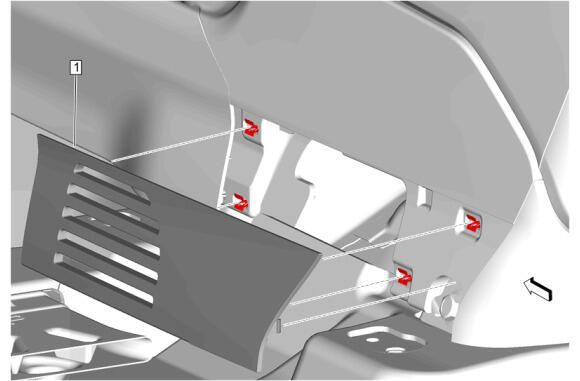

  38. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

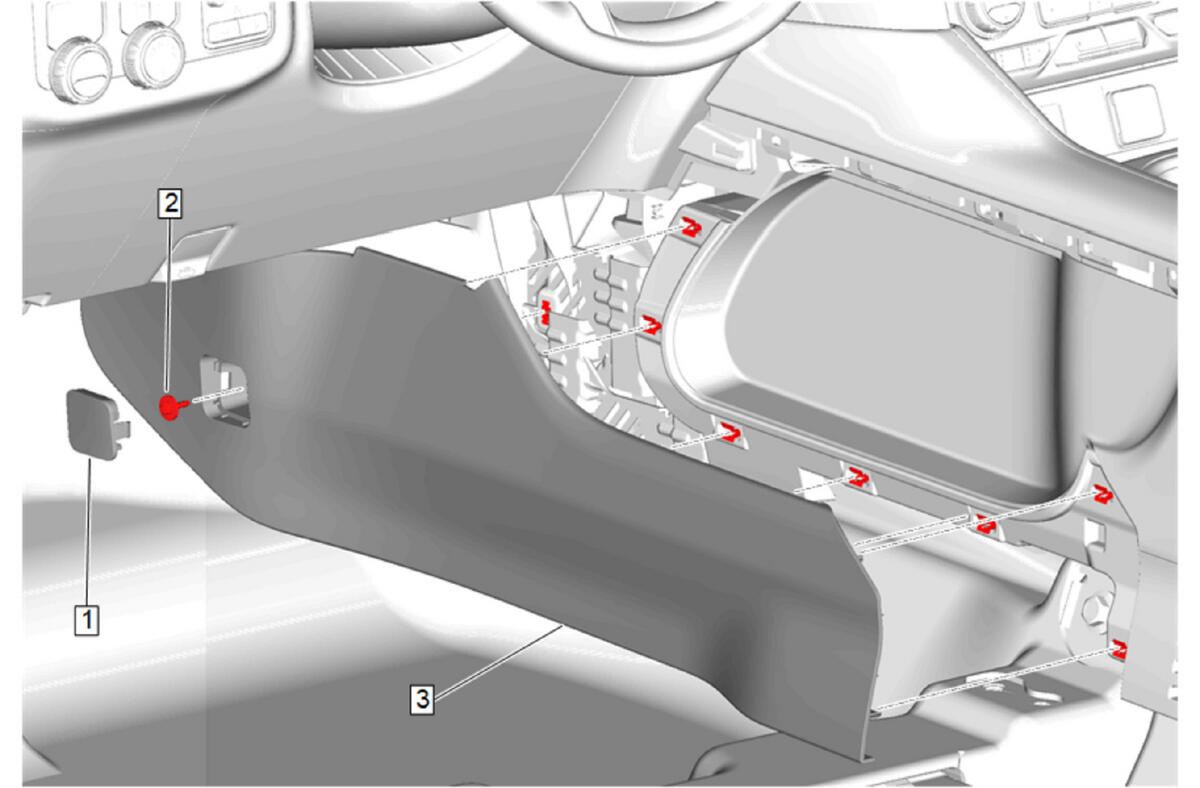

  39. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  40. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  41. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

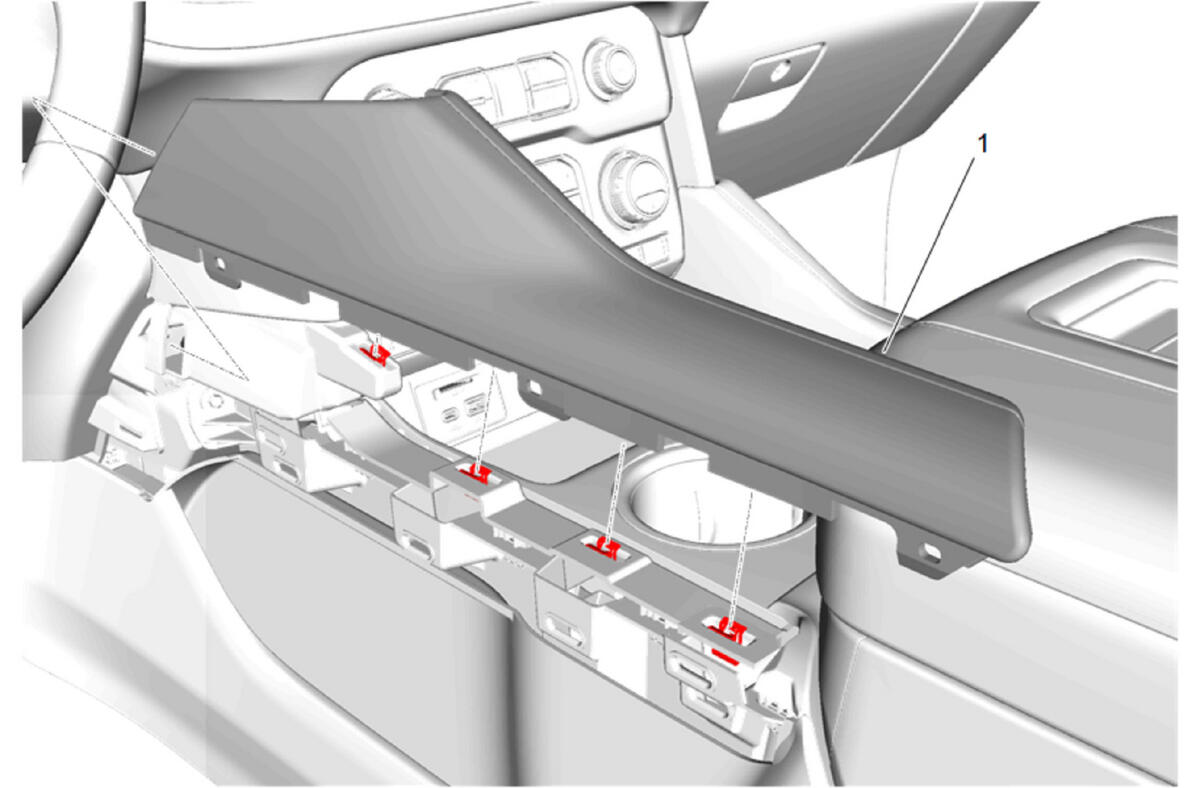

  42. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  43. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  44. Return the armrest compartment to the close position.

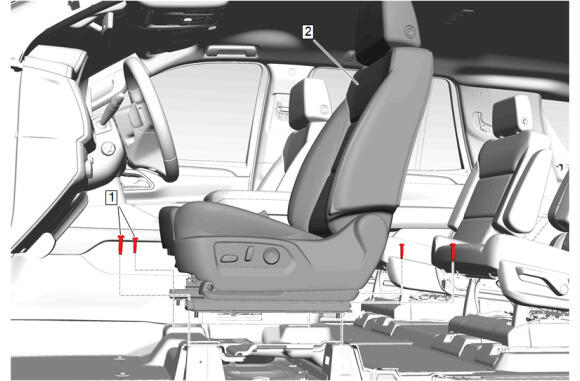

  45. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [ 2x ] - Front Seat Removal and Installation
