Installation Procedure

  1. GM5577803Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Base (1) - Install

  2. Connect and position the wiring harness.

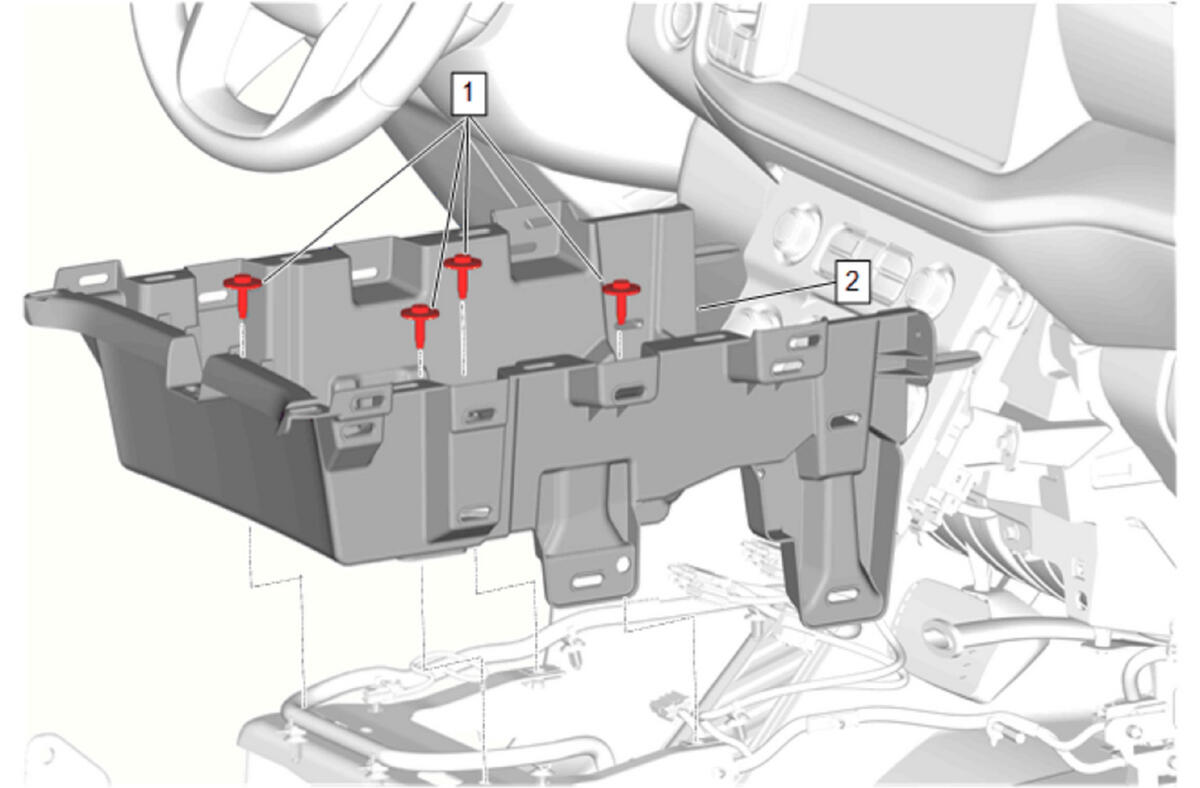

  3. GM5607906Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  4. Front Floor Console Carrier (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Floor Console Intermediate Bracket Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

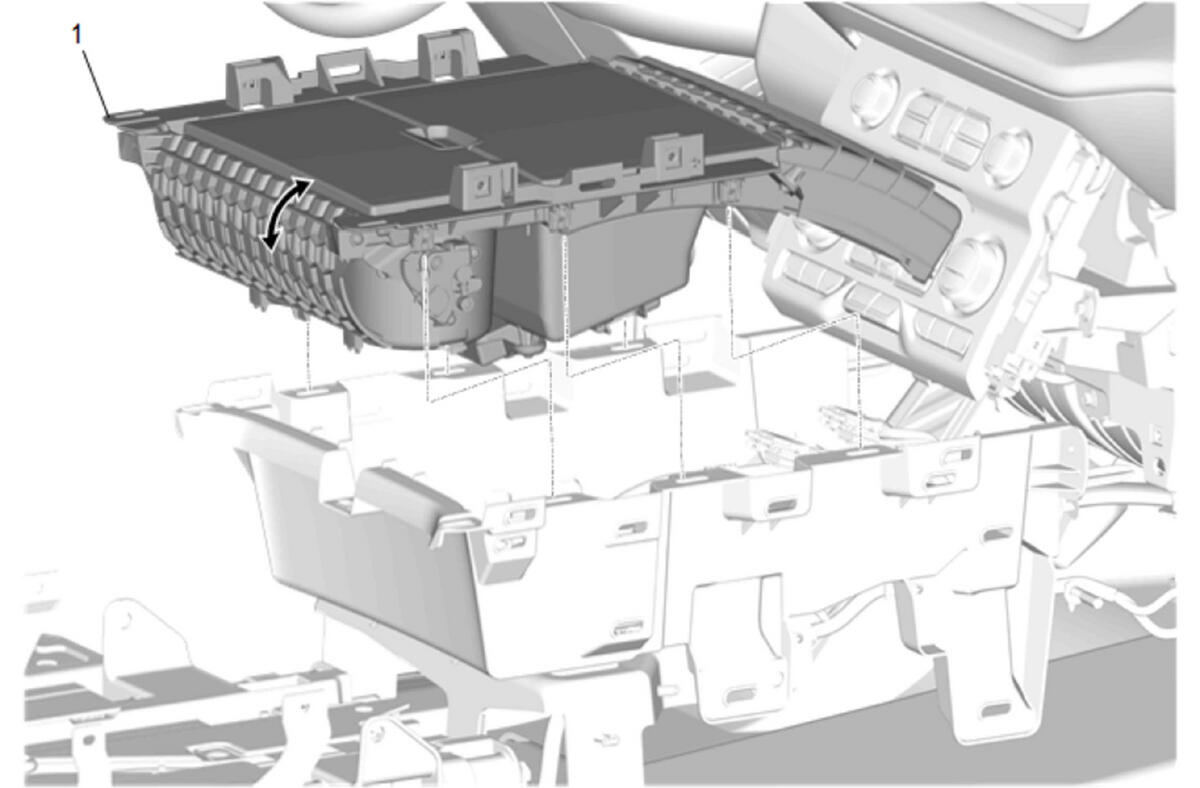

  6. GM5606992Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Front Floor Console Cup Holder Trim Plate (1) - Install

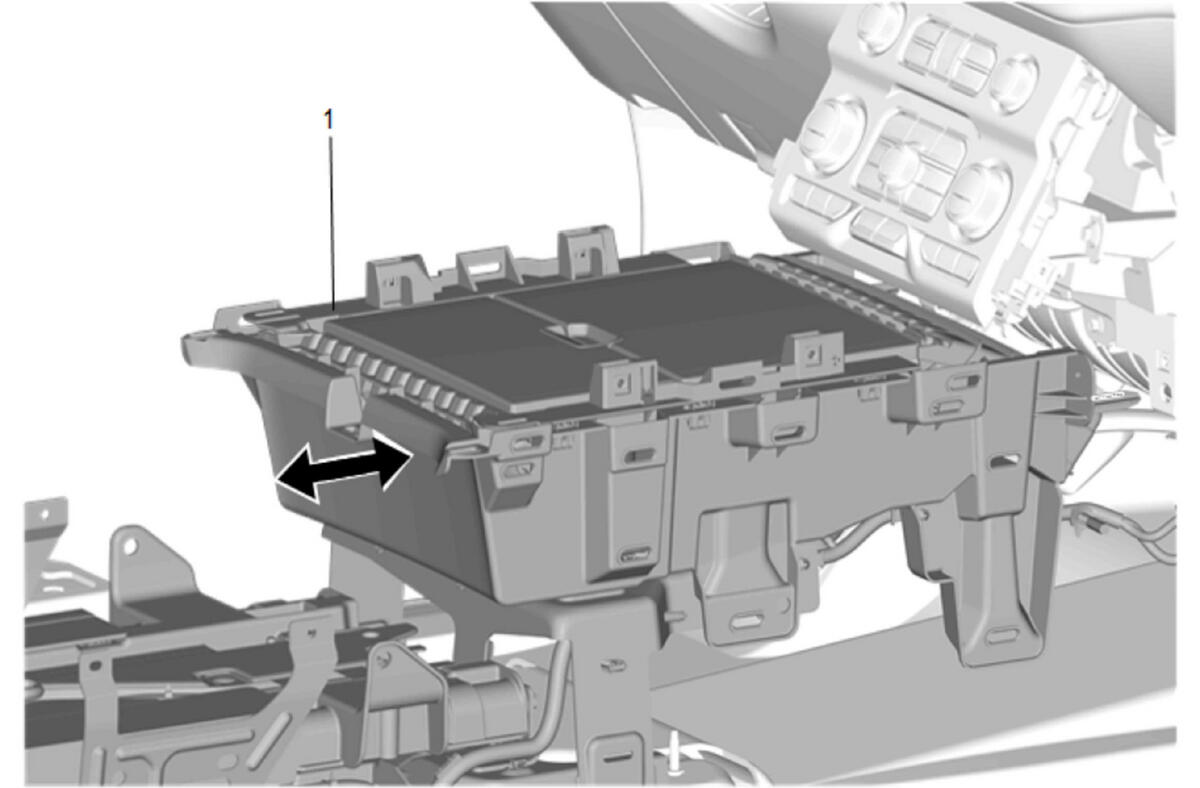

  8. GM5606985Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  9. GM5549159Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union.

  10. Install the 2 front floor console armrest cable retainers.
  11. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  12. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  13. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  14. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  15. Front Floor Console Armrest Hinge Clip (2) - Install
  16. GM5577795Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  17. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications

  18. Front Floor Console Compartment Liner (1) - Install
  19. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  20. Front Floor Console Armrest Pivot Pin (2) - Install
  21. Front Floor Console Armrest Hinge Clip (1) - Install
  22. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  23. Connect the electrical connectors.
  24. Front Floor Console Rear Trim Panel (2) - Install
  25. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  26. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  27. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    28. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  28. Front Floor Console Rear Cup Holder Liner (1) - Install

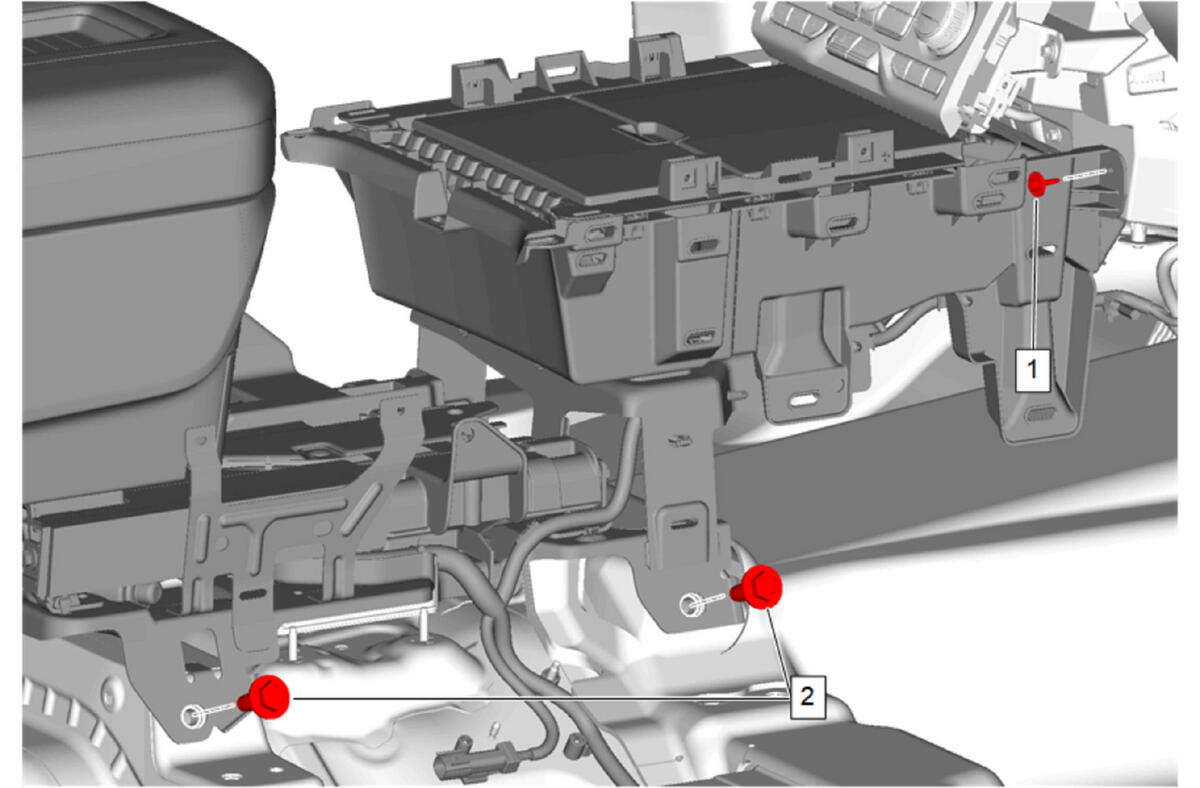

  29. GM5606862Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Retainer Bolt (1) - Install and tighten - Fastener Specifications

  30. Front Floor Console Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

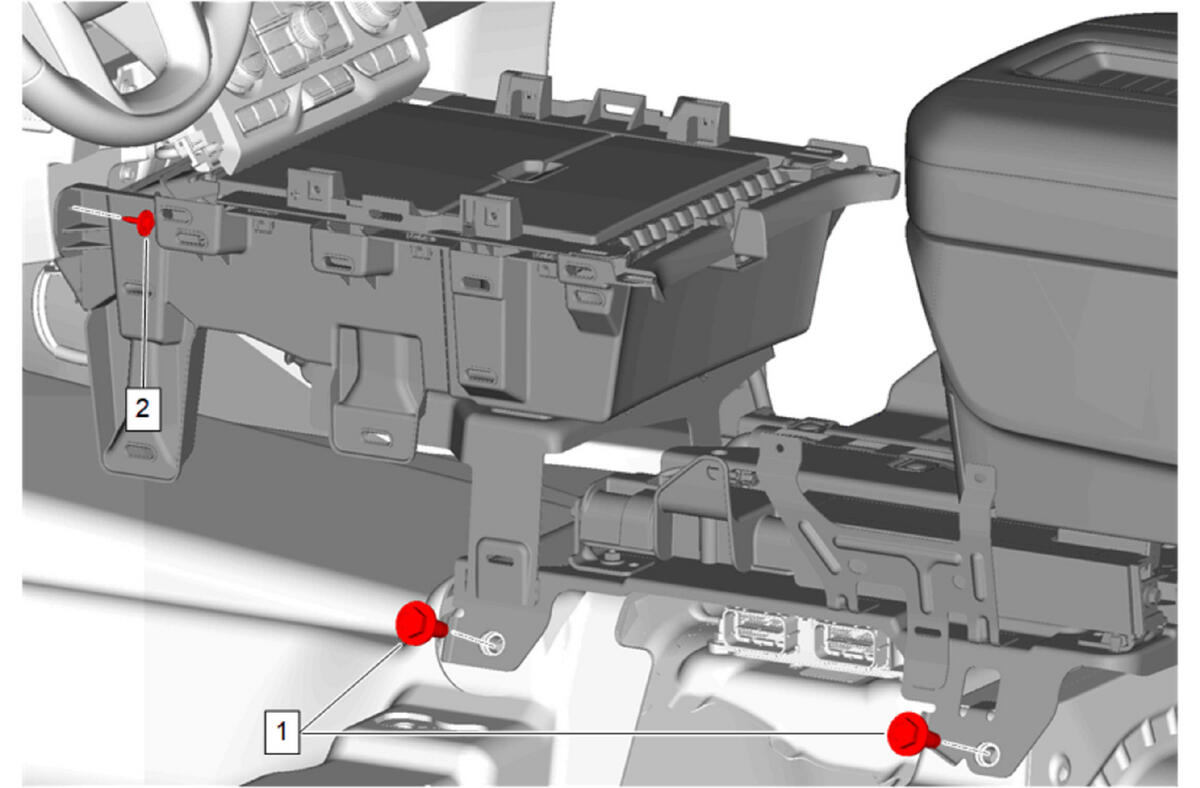

  31. GM5606861Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  32. Front Floor Console Retainer Bolt (2) - Install and tighten - Fastener Specifications
  33. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  34. Front Floor Rear Console Side Trim Panel (1) - Install
  35. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

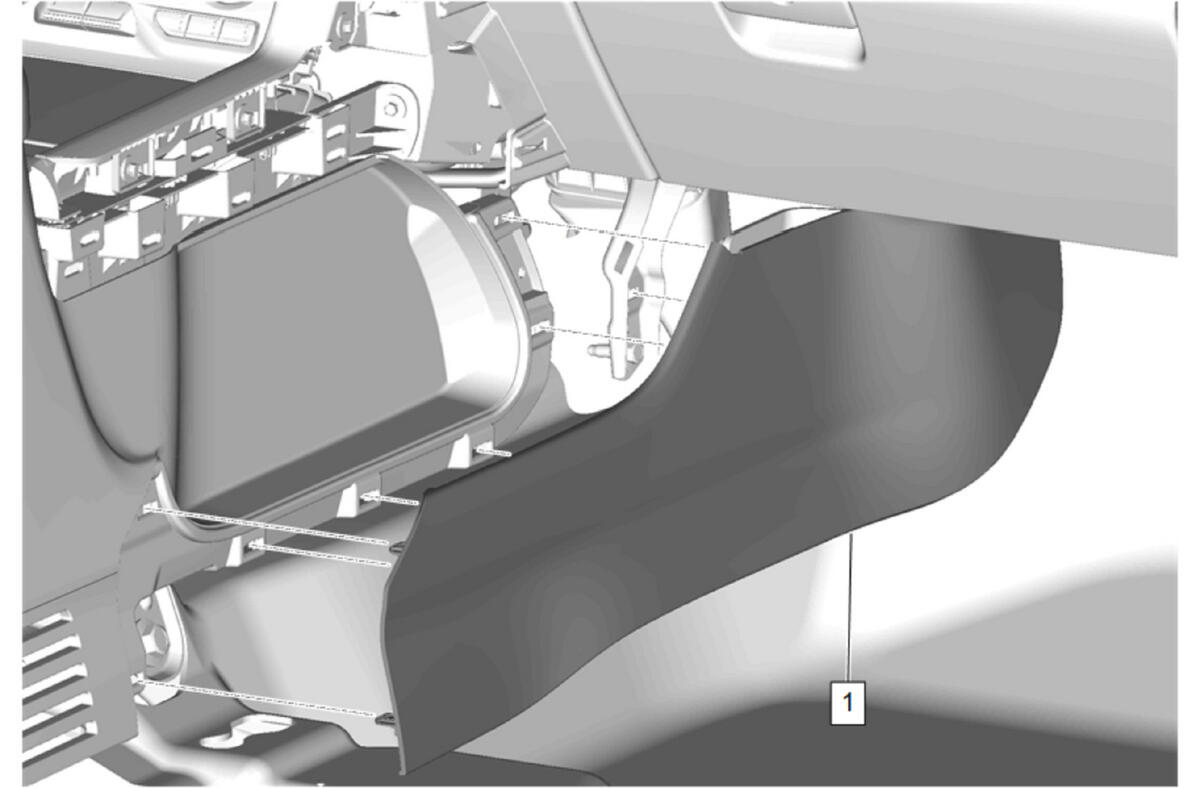

  36. GM5607514Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

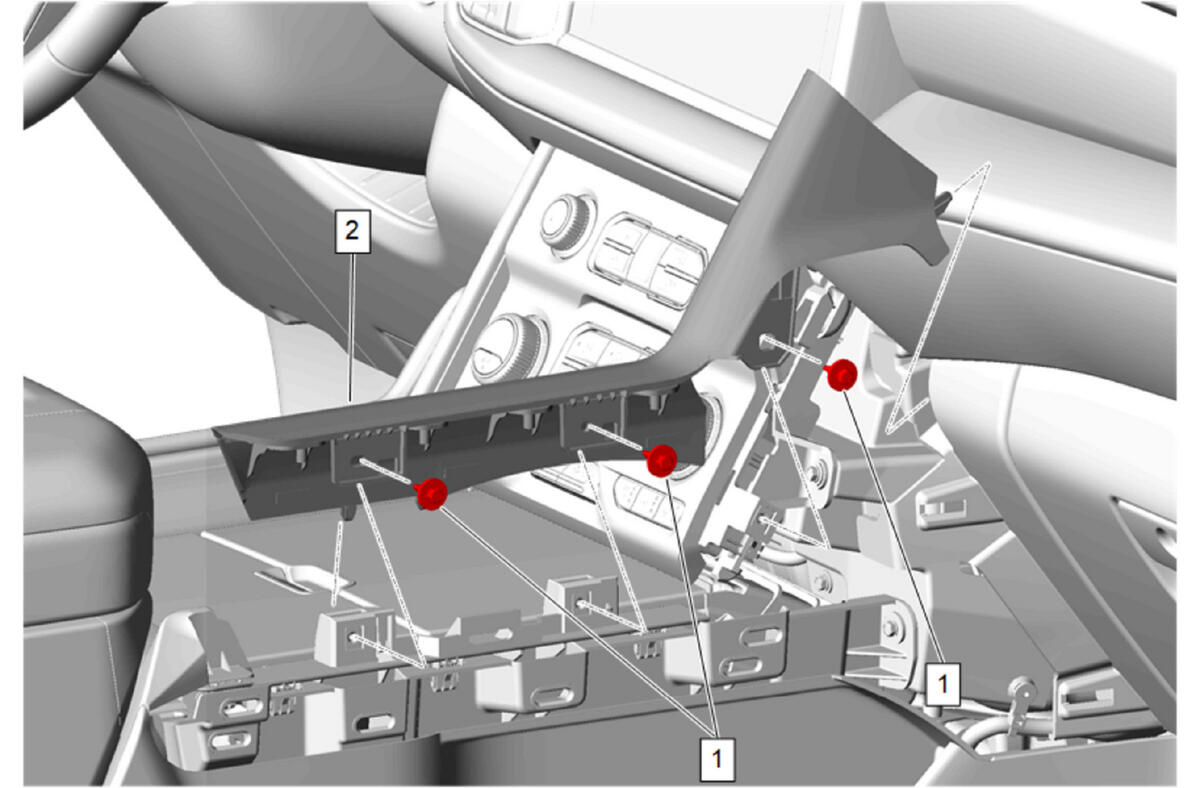

  37. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  38. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

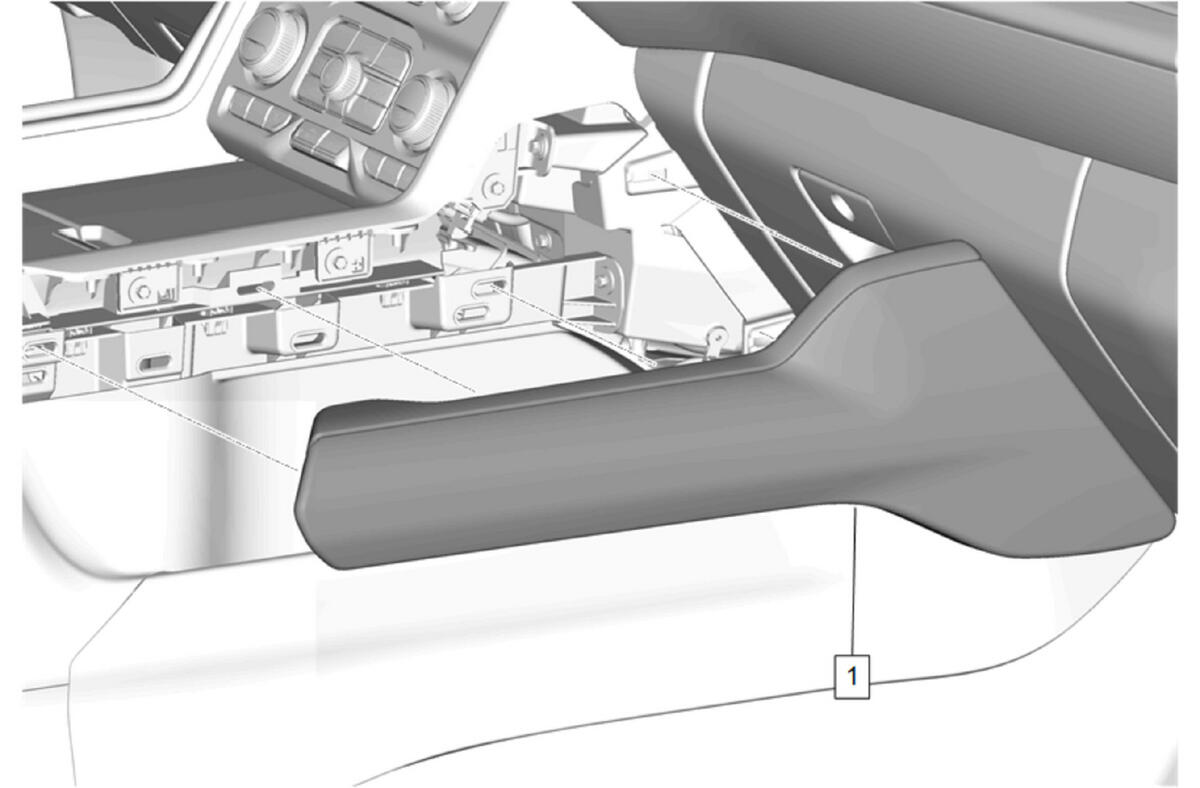

  39. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  40. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  41. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  42. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  43. Return the armrest compartment to the close position.
  44. GM5607511Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  45. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  46. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

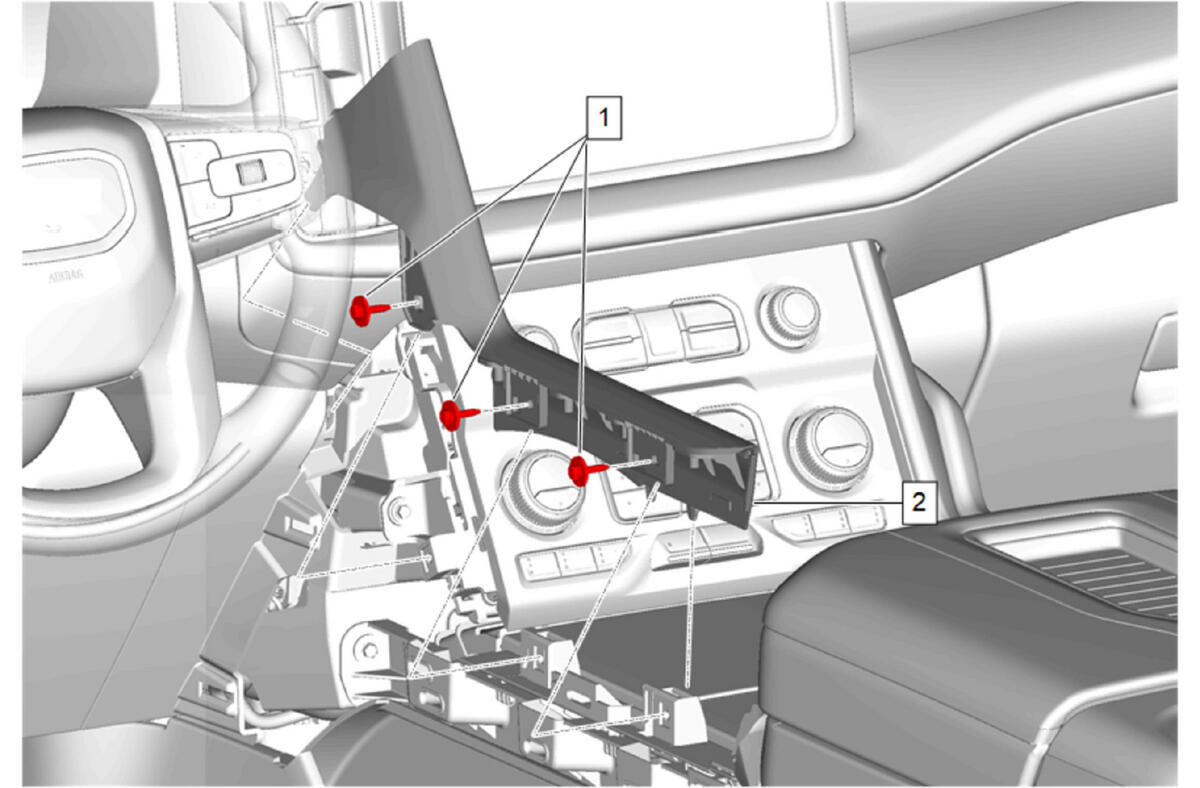

  47. GM5604950Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  48. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  49. GM5604836Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  50. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [ 2x ] - Front Seat Removal and Installation
