Installation Procedure

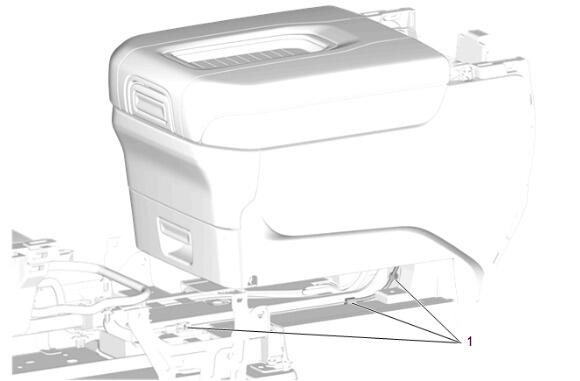

  1. GM5696695Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union and front floor console base.

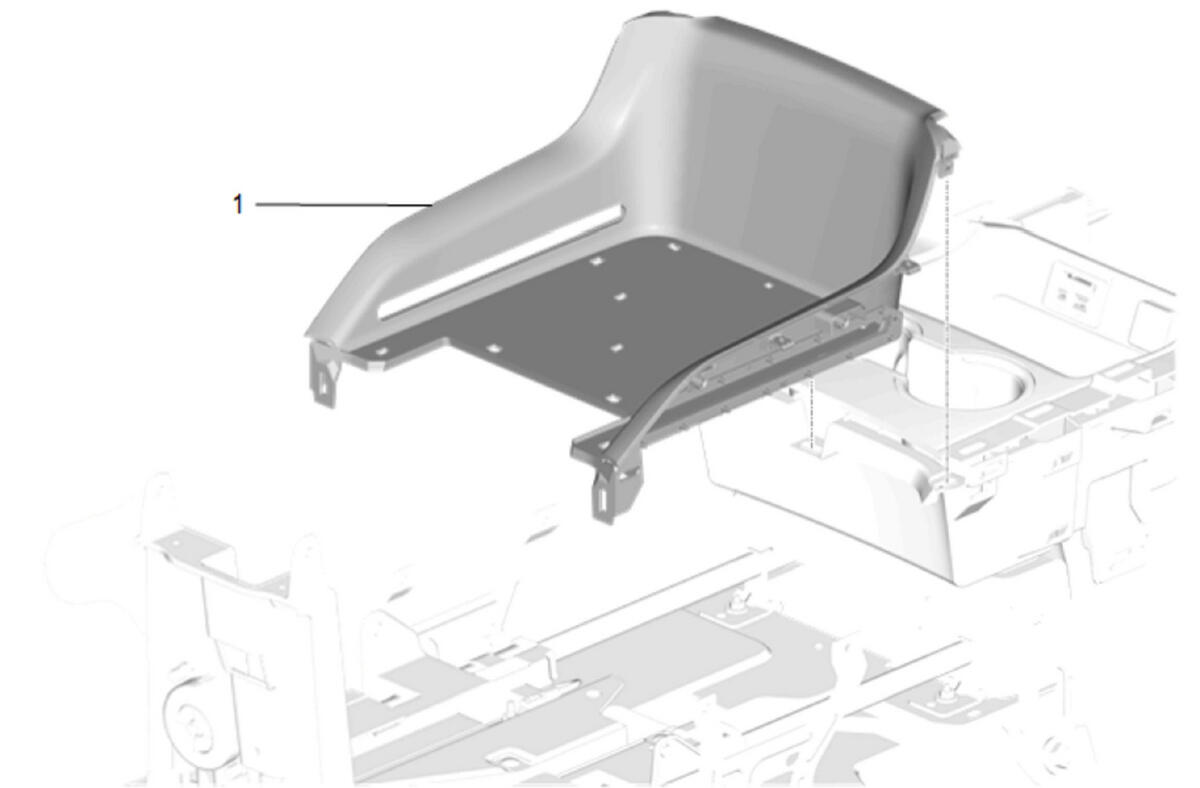

  2. GM5696694Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Stowage Tray (1) - Install

  3. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  4. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  5. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  6. Front Floor Console Armrest Hinge Clip (2) - Install

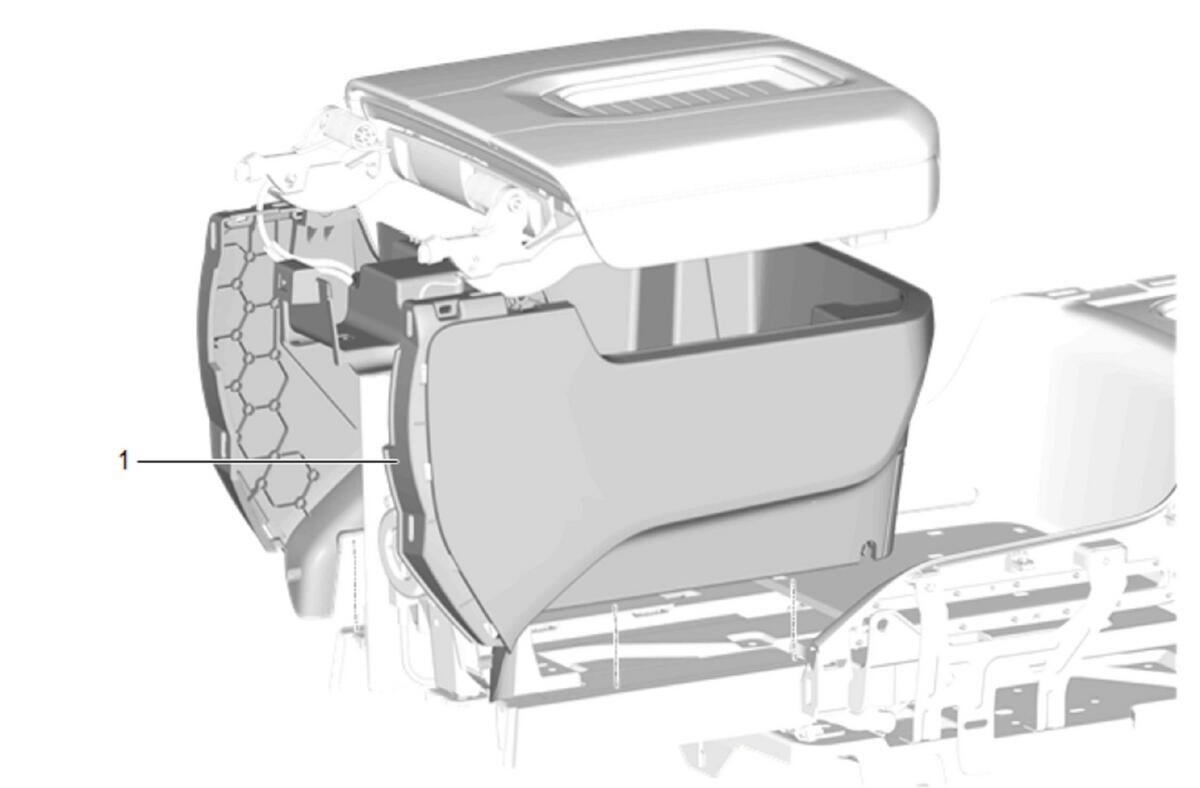

  7. GM5696538Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  8. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications

  9. Front Floor Console Compartment Liner (1) - Install
  10. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  11. Front Floor Console Armrest Pivot Pin (2) - Install
  12. Front Floor Console Armrest Hinge Clip (1) - Install

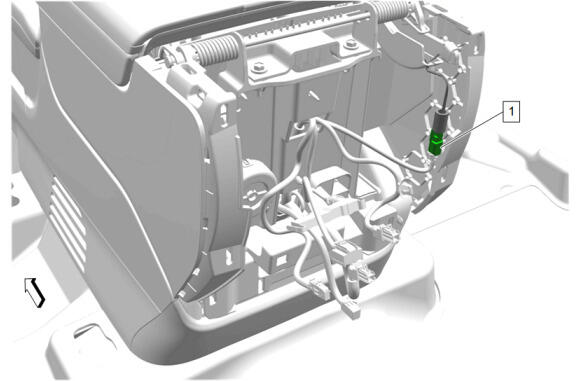

  13. GM5696477Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  14. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (2) - Install

  15. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  16. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  17. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    18. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  18. Front Floor Console Rear Cup Holder Liner (1) - Install
  19. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  20. Front Floor Rear Console Side Trim Panel (1) - Install
  21. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  22. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  23. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  24. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  25. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  26. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  27. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  28. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  29. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  30. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  31. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  32. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  33. Return the armrest compartment to the close position.
  34. Return the seat to its original position.
