Installation Procedure

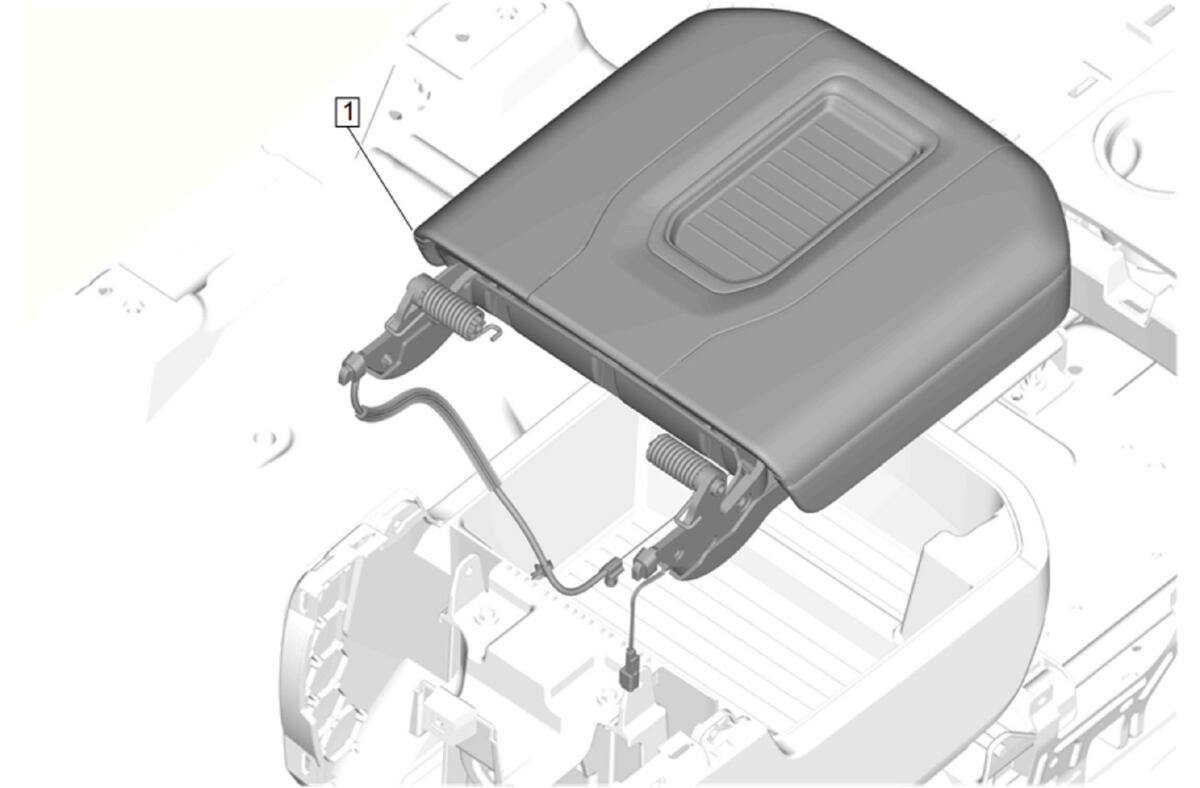

  1. GM5816618Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (1) - Loosely install

  2. GM5549159Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union.

  3. Install the 2 front floor console armrest cable retainers.
  4. Front Floor Console Armrest - Install
  5. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  6. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  7. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  8. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  9. Front Floor Console Armrest Hinge Clip (2) - Install
  10. GM5577795Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  11. GM5577794Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bracket Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications

  12. Front Floor Console Compartment Liner (1) - Install
  13. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  14. Front Floor Console Armrest Pivot Pin (2) - Install
  15. Front Floor Console Armrest Hinge Clip (1) - Install
  16. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  17. Front Floor Console Rear Trim Panel (2) - Install
  18. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  19. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  20. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    21. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  21. Front Floor Console Rear Cup Holder Liner (1) - Install
  22. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  23. Front Floor Rear Console Side Trim Panel (1) - Install
  24. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  25. GM5607514Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  26. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  27. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  28. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  29. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  30. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  31. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  32. GM5607511Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  33. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  34. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  35. GM5604950Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  36. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  37. GM5604836Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  38. Return the armrest compartment to the close position.
  39. Return the seats to original position.
