Installation Procedure

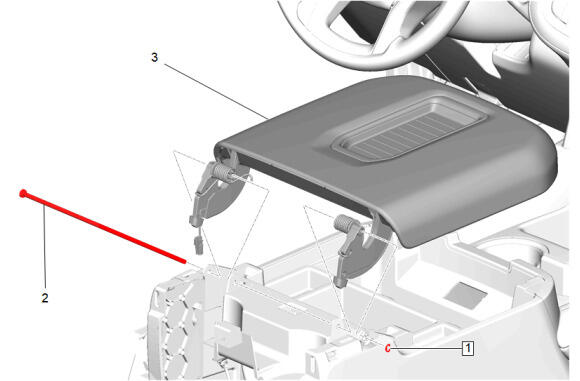

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (3) - Install
Connect the electrical connector.
Front Floor Console Armrest Pivot Pin (2) - Install
Front Floor Console Armrest Hinge Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console Rear Trim Panel (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder (3) - Install
Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications

NOTE:

Make sure the liner is properly seated under the front floor console compartment bezel.

Front Floor Console Rear Cup Holder Liner (1) - Install
