Installation Procedure

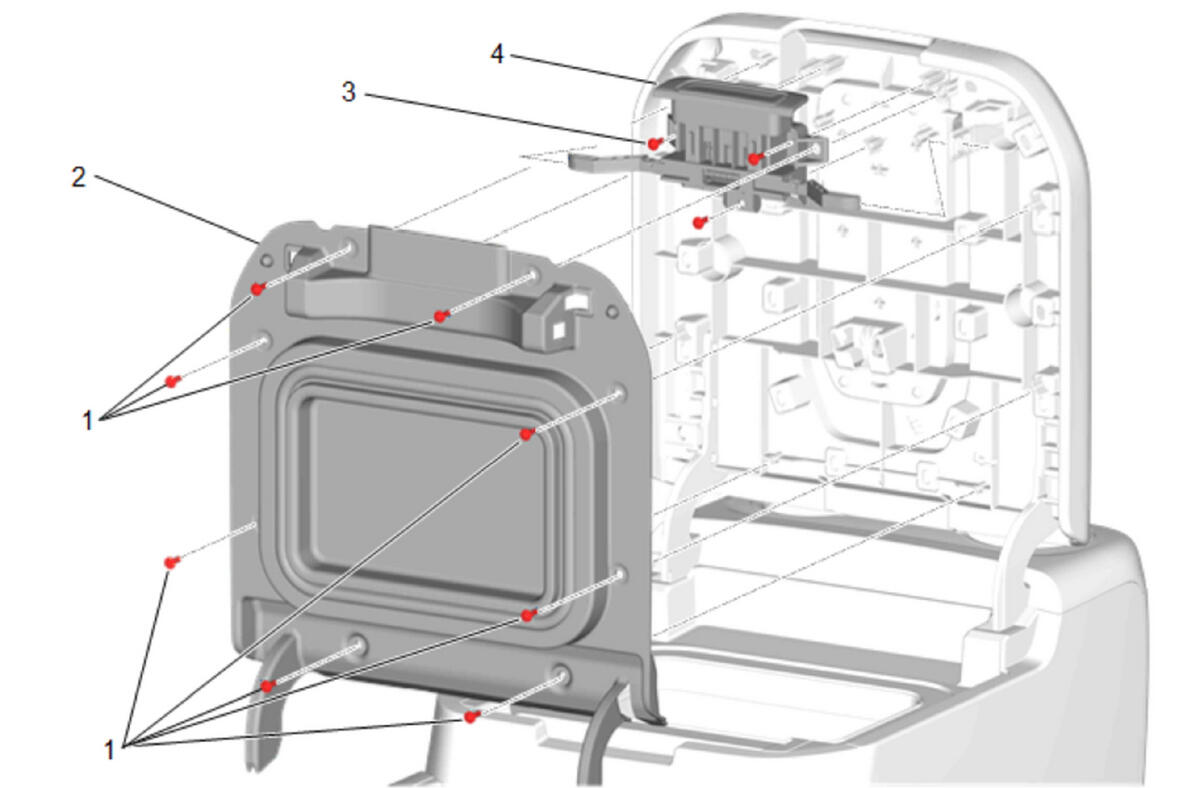

  1. GM5687493Courtesy of GENERAL MOTORS COMPANY

    Depress the latch rod.

  2. Front Floor Console Armrest Latch (4) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Floor Console Armrest Bolt (3) - Install and tighten [ 3x ] - Fastener Specifications
  4. Hold the latch release button in.
  5. Front Floor Console Armrest Hinge Cover (2) - Install
  6. Front Floor Console Armrest Bolt (1) - Install and tighten [ 8x ] - Fastener Specifications
