Installation Procedure

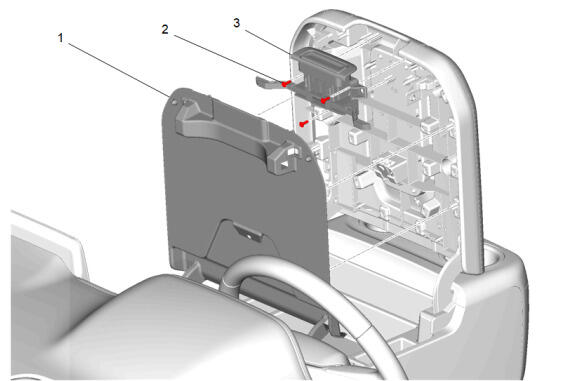

  1. GM5569159Courtesy of GENERAL MOTORS COMPANY

    Depress the latch rod.

  2. Front Floor Console Armrest Latch (3) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Floor Console Armrest Bolt (2) - Install and tighten [ 3x ] - Fastener Specifications
    4. NOTE:

    Hold the latch release button in.

  4. Front Floor Console Armrest Hinge Cover (1) - Install
