X917 Liftgate Harness to Left Strobe Light Blunt
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

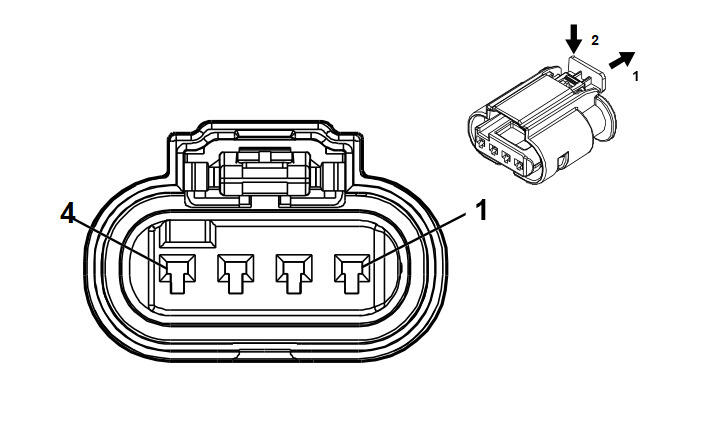

Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 33351631
- Service Connector: Service by Harness -
- Description: 4-Way F 1.2 MCON-CB Series, Sealed (BK)
|

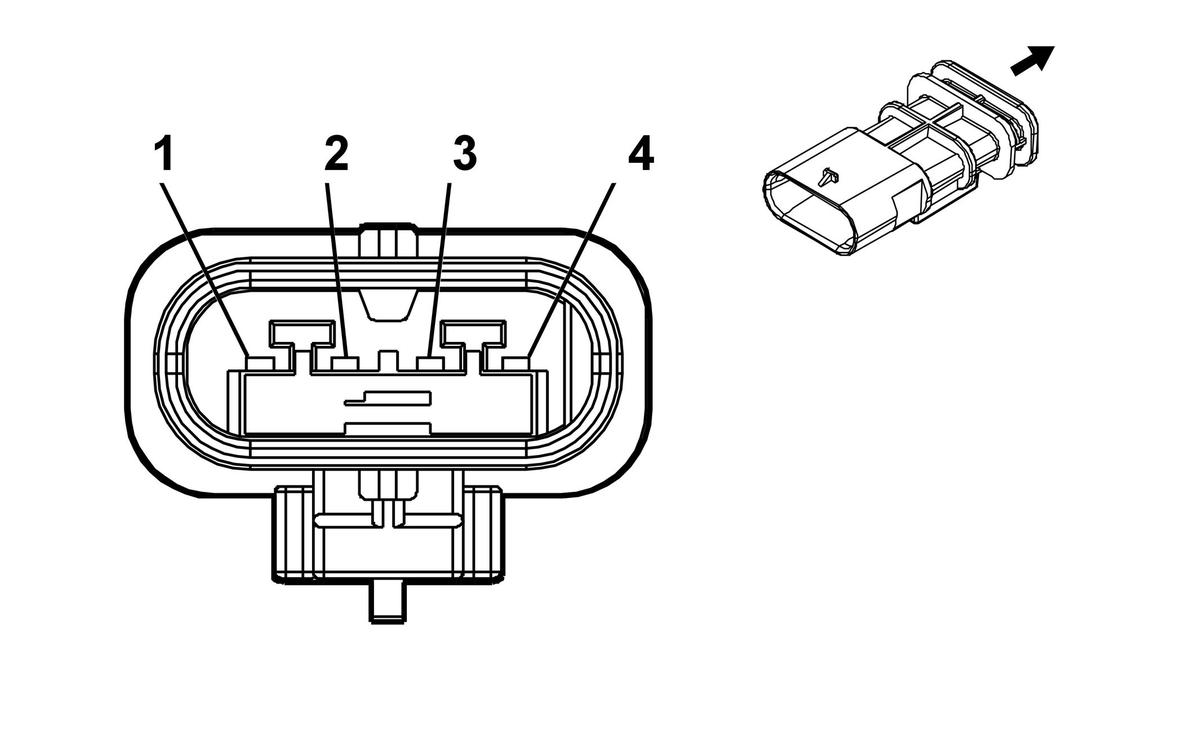

Connector Part Information
- Harness Type: Left Strobe Light Blunt
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 4-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
VT |
8866 |
I |
- |
Police Liftgate Strobe Control |
1 |
0.75 |
VT |
8866 |
II |
- |
| 2 |
0.75 |
BK |
2050 |
I |
- |
Ground |
2 |
0.75 |
BK |
2050 |
II |
- |
| 3 |
0.75 |
WH |
8867 |
I |
- |
Police Liftgate Strobe Synchronization Signal |
3 |
0.75 |
WH |
8867 |
II |
- |
| 4 |
- |
- |
- |
- |
- |
Not Occupied |
4 |
- |
- |
- |
- |
- |
