X909 Rearview Camera Harness to Liftgate Extension Harness (UV2+DRZ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

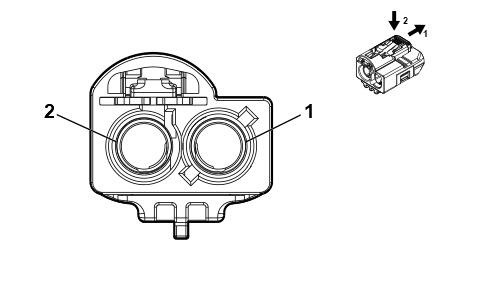

Connector Part Information
- Harness Type: Rearview Camera
- OEM Connector: 13532516
- Service Connector: Service by Cable Assembly -
- Description: 2-Way F Coax Type
|

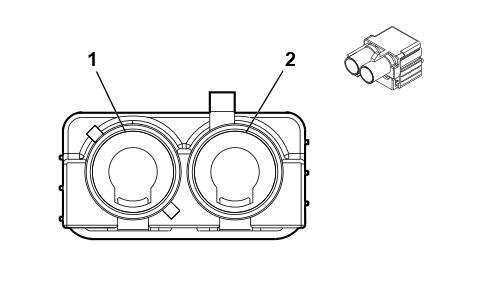

Connector Part Information
- Harness Type: Liftgate Extension
- OEM Connector: 33351073
- Service Connector: Service by Cable Assembly -
- Description: 2-Way M Coax Type (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| II |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
Coax Cable |
- |
I |
- |
Rear Vision Camera Coaxial Video Signal |
1 |
- |
Coax Cable |
- |
II |
- |
| 2 |
- |
Coax Cable |
- |
I |
- |
Full Display Mirror Rear Camera Coaxial Video Signal |
2 |
- |
Coax Cable |
- |
II |
- |
