X416 Chassis Harness to Chassis Rear Extension Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

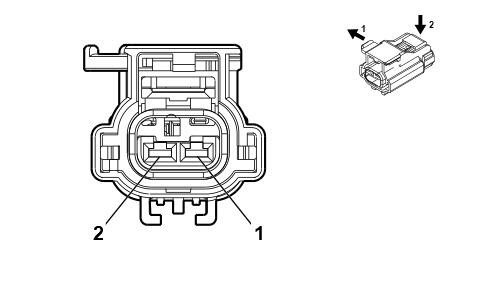

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 15380781
- Service Connector: 84867144
- Description: 2-Way F 2.8 APEX Series, Sealed (GY)
|

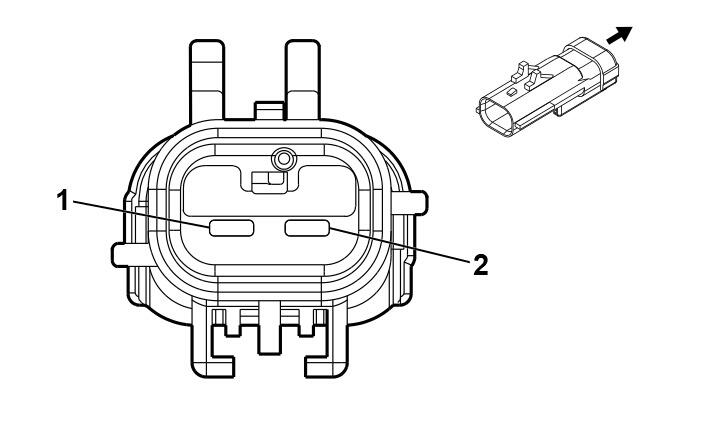

Connector Part Information
- Harness Type: Chassis Rear Extension
- OEM Connector: 13512891
- Service Connector: Service by Harness -
- Description: 2-Way M 2.8 APEX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| II |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
GY |
4368 |
I |
- |
Right Park Brake Motor Low Reference |
1 |
2.5 |
GY |
4368 |
II |
- |
| 2 |
2 |
GN/VT |
1988 |
I |
- |
Right Park Brake Motor Apply Control |
2 |
2.5 |
GN/VT |
1988 |
II |
- |
