X406 Chassis Harness to Chassis Rear Extension Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

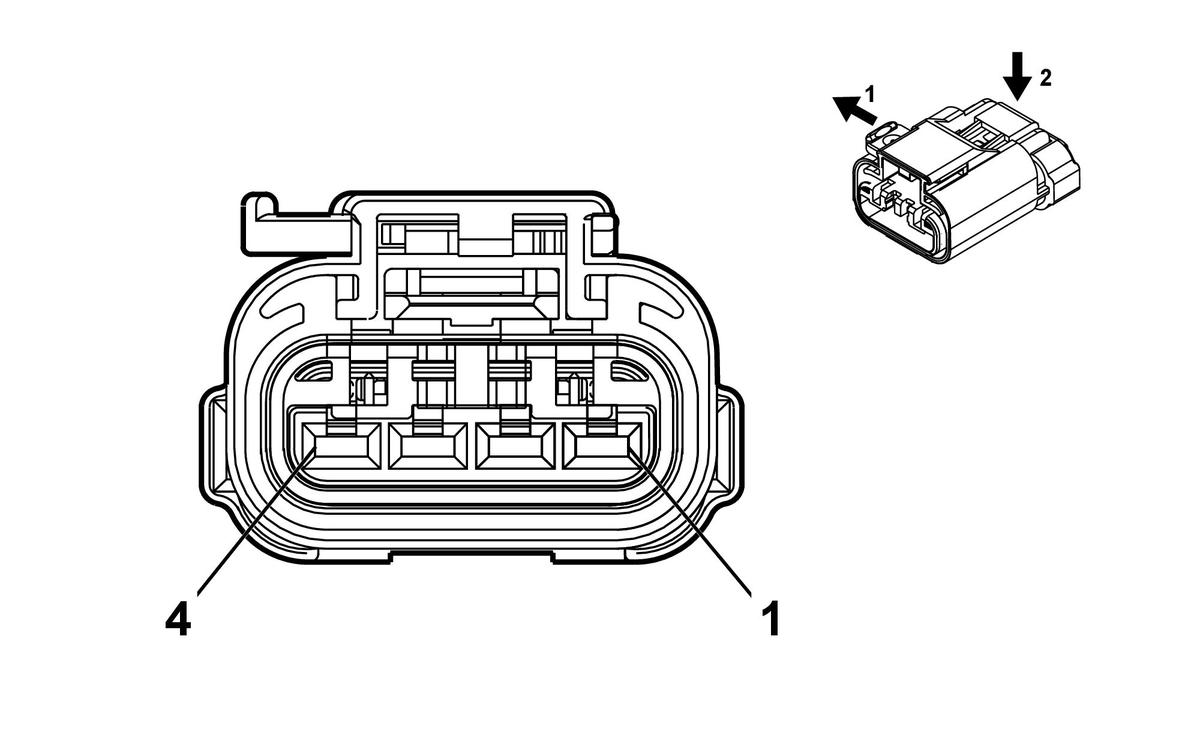

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 15324787
- Service Connector: 15306349
- Description: 4-Way F 2.8 APEX Series, Sealed (GY)
|

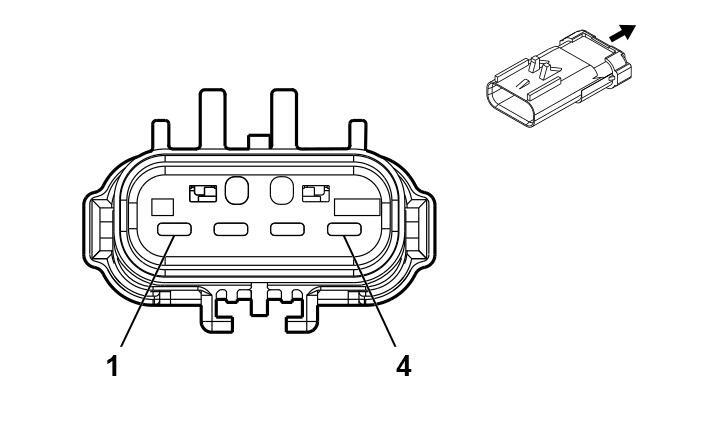

Connector Part Information
- Harness Type: Chassis Rear Extension
- OEM Connector: 13518460
- Service Connector: Service by Harness -
- Description: 4-Way M 2.8 APEX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| III |
Not required |
J-35616-35 (VT) |
No Tool Required |
| IV |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN/YE |
1616 |
I |
- |
Rear Brake Pad Wear Sensor Signal |
1 |
0.75 |
GN/YE |
1616 |
III |
- |
| 2 |
0.75 |
BK |
2050 |
I |
- |
Ground |
2 |
0.75 |
BK |
2050 |
III |
- |
| 3 |
4 |
GY/BK |
4369 |
II |
- |
Left Park Brake Motor Low Reference |
3 |
2.5 |
GY/BK |
4369 |
IV |
- |
| 4 |
2.5 |
WH |
2001 |
II |
- |
Left Park Brake Motor Apply Control |
4 |
2.5 |
WH |
2001 |
IV |
- |
