X183 Power Steering Harness to Power Steering Jumper Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

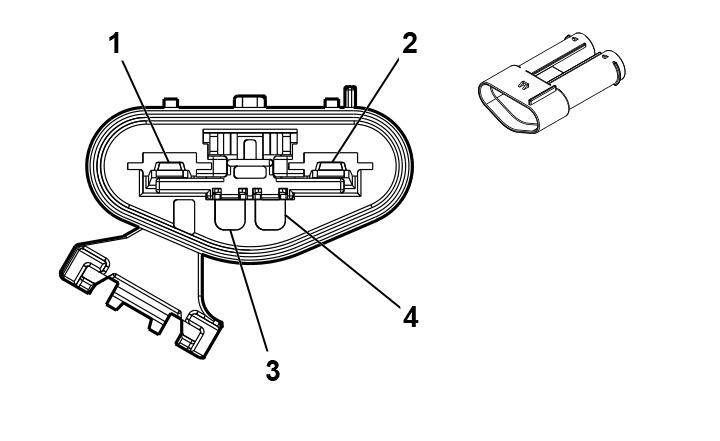

Connector Part Information
- Harness Type: Power Steering
- OEM Connector: 13508902
- Service Connector: Service by Harness -
- Description: 4-Way F 1.2, 2.8 MAK Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 13582138
- Service Connector: Service by Harness -
- Description: 4-Way M 1.2, 2.8 MAK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| II |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
BK |
350 |
I |
- |
Ground |
1 |
- |
BK |
350 |
II |
- |
| 2 |
- |
RD/VT |
3542 |
I |
- |
Battery Positive Voltage |
2 |
- |
RD/VT |
3542 |
II |
- |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
