X122 Body Harness to Right Police Provisional (5W4/9C1)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

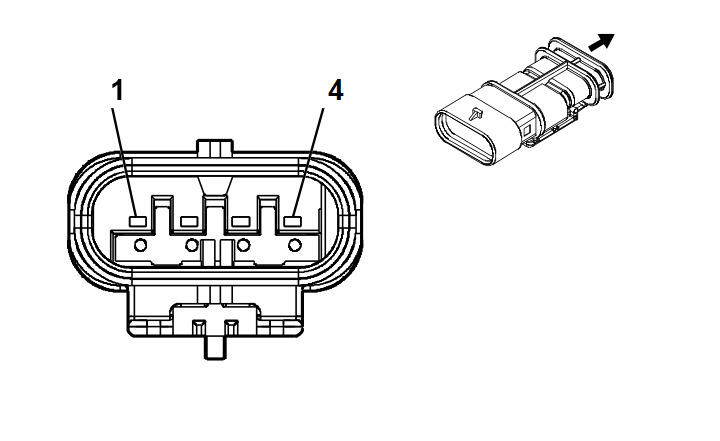

Connector Part Information
- Harness Type: Body
- OEM Connector: 33351631
- Service Connector: 19371202
- Description: 4-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Right Police Provisional
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 4-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU |
8890 |
I |
- |
Police Front Corner Light Control |
1 |
0.75 |
BU |
8890 |
II |
- |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
| 3 |
0.75 |
BU/WH |
8891 |
I |
- |
Police Corner Strobe Synchronization Signal |
3 |
0.75 |
BU/WH |
8891 |
II |
- |
| 4 |
0.75 |
VT |
8893 |
I |
- |
Police Front Corner Strobe Control |
4 |
0.75 |
VT |
8893 |
II |
- |
