X51R Instrument Panel Wiring Harness Junction Block - Right X3
 Courtesy of GENERAL MOTORS COMPANY
|

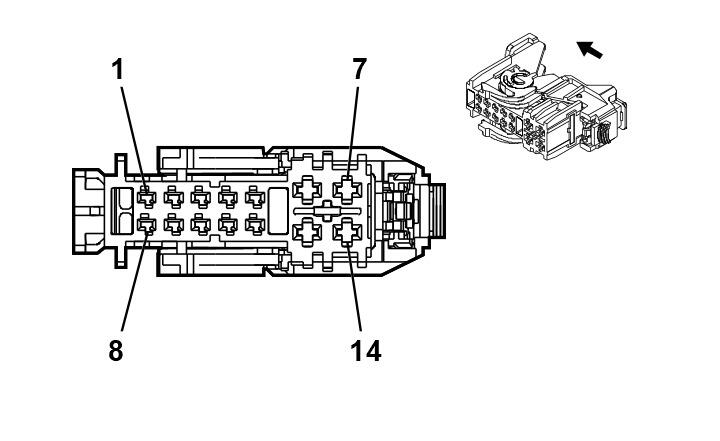

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 33377074
- Service Connector: 13525315
- Description: 14-Way F 1.5, 2.8 MCP Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19332366 |
J-35616-35 (VT) |
J-38125-212 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
1 |
RD / YE |
240 |
Battery Positive Voltage |
I |
- |
| 8 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
