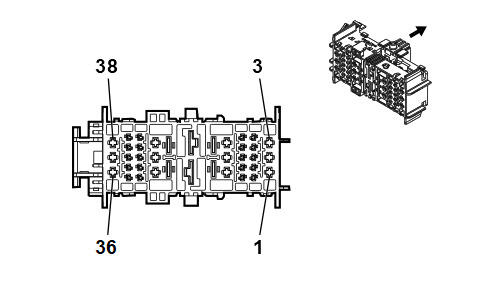

X51R Instrument Panel Wiring Harness Junction Block - Right X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 35264615
- Service Connector: 84941450
- Description: 38-Way F 1.5, 2.8, 6.3 CTS, 9.5 MCON-LL Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19332366 |
J-35616-35 (VT) |
J-38125-212 |
| II |
19371175 |
J-35616-2A (GY) |
J-38125-11A |
| III |
84764078 |
J-35616-42 (RD) |
J-38125-215A |
| IV |
Not required |
J-35616-22 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
RD / GN |
1840 |
Battery Positive Voltage |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
RD / GN |
4440 |
Battery Positive Voltage |
II |
- |
| 6 |
0.5 |
VT |
4701 |
Retained Accessory Power Control |
II |
- |
| 7 |
0.5 |
VT |
2801 |
Retained Accessory Power Control |
II |
- |
| 8 |
0.5 |
VT |
4701 |
Retained Accessory Power Control |
II |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
GY / GN |
4083 |
Retained Accessory Power Relay 2 Coil Control |
II |
- |
| 11 |
0.5 |
RD / VT |
340 |
Battery Positive Voltage |
II |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
YE / BK |
5813 |
Park Enable Control |
II |
- |
| 14 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
2.5 |
RD / YE |
2172 |
12V Regulated Supply Voltage 1 |
III |
- |
| 18 |
2.5 |
RD / YE |
8140 |
Battery Positive Voltage |
III |
- |
| 19 |
5 |
RD / YE |
1442 |
Battery Positive Voltage |
IV |
- |
| 20 |
10 |
RD / WH |
342 |
Battery Positive Voltage |
IV |
- |
| 21 |
2.5 |
RD / GN |
2173 |
12V Regulated Supply Voltage 2 |
III |
- |
| 22 |
2.5 |
RD / WH |
8040 |
Battery Positive Voltage |
III |
- |
| 23 |
2.5 |
RD / BN |
4240 |
Battery Positive Voltage |
I |
- |
| 24 |
2.5 |
RD / BN |
4240 |
Battery Positive Voltage |
I |
- |
| 25 |
2.5 |
RD / GY |
3540 |
Battery Positive Voltage |
I |
- |
| 26 |
0.5 |
RD / BN |
3640 |
Battery Positive Voltage |
II |
- |
| 27 |
0.5 |
RD / VT |
340 |
Battery Positive Voltage |
II |
- |
| 28 |
- |
- |
- |
Not Occupied |
- |
- |
| 29 |
0.5 |
RD / BU |
5240 |
Battery Positive Voltage |
II |
- |
| 30 |
0.5 |
RD / VT |
1940 |
Battery Positive Voltage |
II |
- |
| 31 |
0.35 |
RD / WH |
7240 |
Battery Positive Voltage |
II |
- |
| 32 |
0.5 |
YE |
6812 |
Out of Park Signal |
II |
- |
| 33 |
0.35 |
GY / GN |
4083 |
Retained Accessory Power Relay 2 Coil Control |
II |
- |
| 34 - 35 |
- |
- |
- |
Not Occupied |
- |
- |
| 36 |
1.5 |
VT |
1701 |
Retained Accessory Power Control |
I |
- |
| 37 |
2.5 |
RD / GY |
3540 |
Battery Positive Voltage |
I |
- |
| 38 |
- |
- |
- |
Not Occupied |
- |
- |
