S70R Radio Control Switch - Steering Wheel
 Courtesy of GENERAL MOTORS COMPANY
|

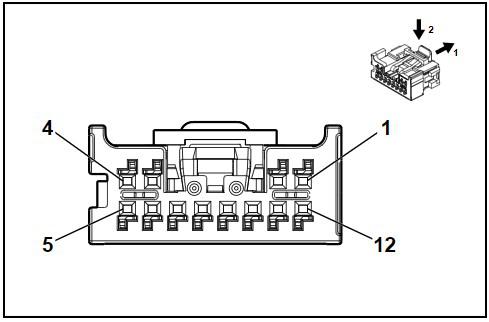

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13541204
- Service Connector: Service by Harness -
- Description: 12-Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
5140 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
PK |
3893 |
Steering Wheel LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
GN / BK |
3894 |
Instrument Cluster LIN Bus 1 |
I |
- |
| 6 |
0.35 |
BK / WH |
6051 |
Steering Wheel Ground |
I |
- |
| 7 |
0.35 |
WH / YE |
4313 |
Radio Favorite Forward Switch Signal |
I |
- |
| 8 |
0.35 |
YE / BU |
4312 |
Radio Favorite Back Switch Signal |
I |
- |
| 9 |
0.35 |
BK / RD |
3892 |
Indicator Dimming Control 2 |
I |
- |
| 10 |
0.35 |
BU / RD |
4315 |
Radio Volume Up Switch Signal |
I |
- |
| 11 |
0.35 |
GN / BN |
4314 |
Radio Volume Down Switch Signal |
I |
- |
