S70F Radio Volume Switch - Steering Wheel
 Courtesy of GENERAL MOTORS COMPANY
|

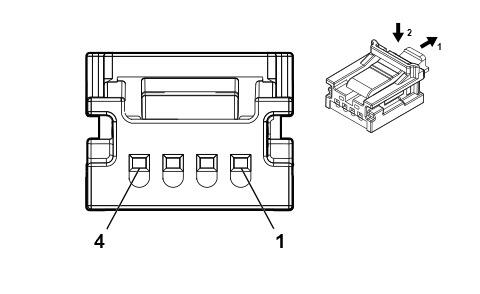

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13507115
- Service Connector: Service by Harness -
- Description: 4-Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK / WH |
6051 |
Steering Wheel Ground |
I |
- |
| 2 |
0.35 |
BU / RD |
4314 |
Radio Volume Down Switch Signal |
I |
- |
| 3 |
0.35 |
GN / BN |
4315 |
Radio Volume Up Switch Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
