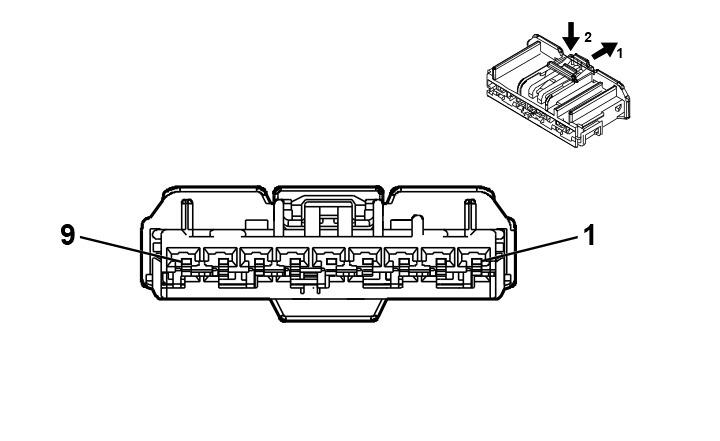

S65D Front Seat Lumbar Switch - Driver (AL9)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7289-6875-40
- Service Connector: Service by Harness -
- Description: 9-Way F 2.8 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BK |
1150 |
Ground |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
1.5 |
RD / YE |
5040 |
Battery Positive Voltage |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.75 |
BU |
611 |
Driver Seat Lumbar Support Motor Forward Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.75 |
VT |
610 |
Driver Seat Lumbar Support Motor Backward Control |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
