Q18B Fuel Pressure Regulator 2 (LM2)
 Courtesy of GENERAL MOTORS COMPANY
|

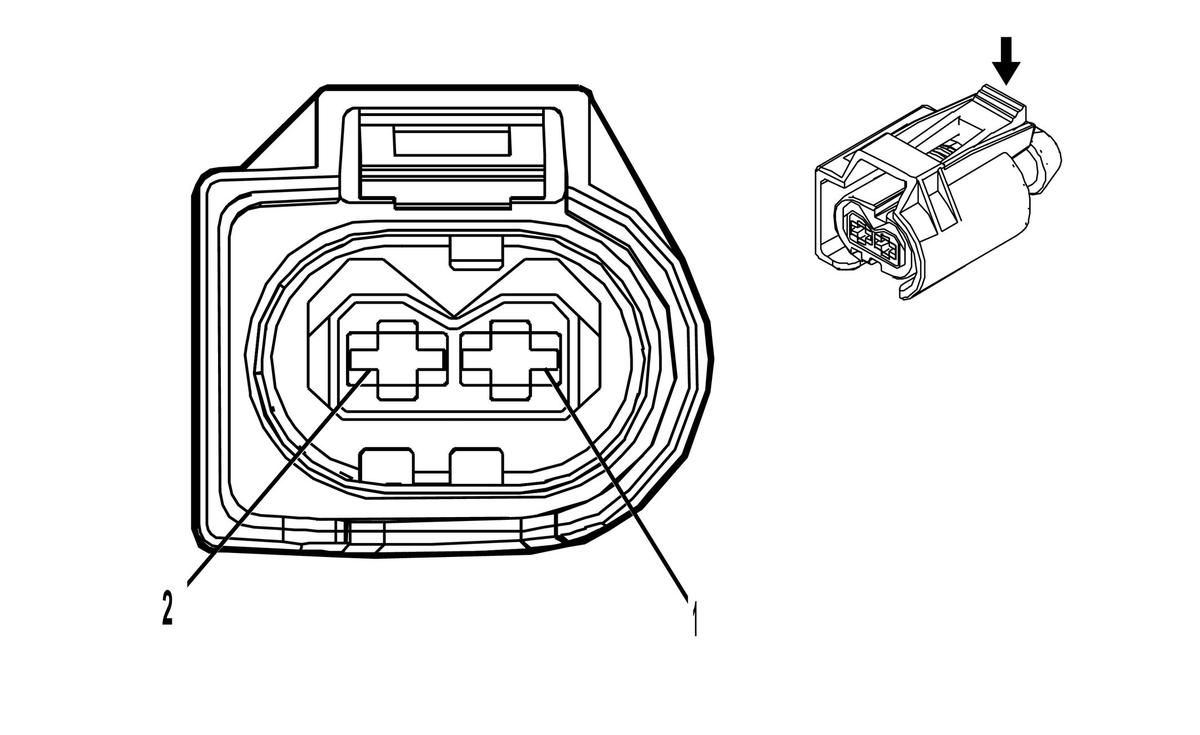

Connector Part Information
- Harness Type: Engine
- OEM Connector: 33163309
- Service Connector: 84616656
- Description: 2-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / YE |
2834 |
Fuel Rail Pressure Solenoid Valve Low Reference |
I |
- |
| 2 |
0.5 |
BU / WH |
2530 |
Fuel Rail Pressure Solenoid Valve Control |
I |
- |
