P22E Video Display - Left Front Seat Back X1 (UW9)
 Courtesy of GENERAL MOTORS COMPANY
|

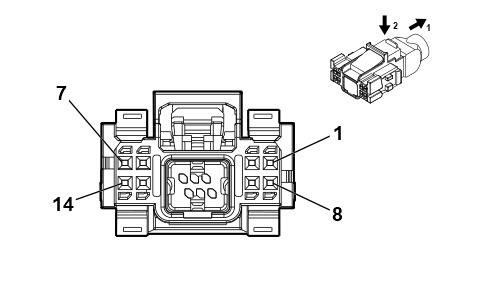

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13532130
- Service Connector: Service by Harness -
- Description: 14-Way F 0.5 MQS, High Speed Autolink Series Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| II |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / BN |
3640 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
BK / WH |
1451 |
Signal Ground |
I |
- |
| 3 |
0.01 |
BARE |
4819 |
Rear Seat Infotainment Display 2 LVDS (Low Voltage Differential Signaling) Low Reference |
II |
- |
| 4 |
0.01 |
BU |
4820 |
Passenger Seat Back Video Display Signal [+] |
II |
- |
| 5 |
0.01 |
WH |
4821 |
Rear Seat Infotainment Display 2 LVDS (Low Voltage Differential Signaling) Signal [-] |
II |
- |
| 6 |
0.35 |
GN / YE |
7066 |
Entertainment Remote Enable Signal |
I |
- |
| 7 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
