G10R Engine Cooling Fan Motor - Right (LM2)
 Courtesy of GENERAL MOTORS COMPANY
|

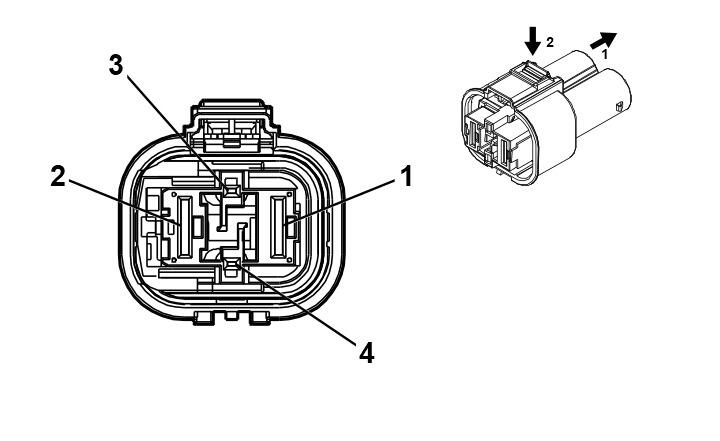

Connector Part Information
- Harness Type: Engine
- OEM Connector: 35194180
- Service Connector: Service by Harness -
- Description: 4-Way F 1.2, 9.5 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-22 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD / YE |
1442 |
Battery Positive Voltage |
II |
- |
| 2 |
8 |
BK |
450 |
Ground |
II |
- |
| 3 |
0.5 |
GN / VT |
4621 |
Engine Control Module LIN Bus 1 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
