E40 Air Heater X1 (C3A)

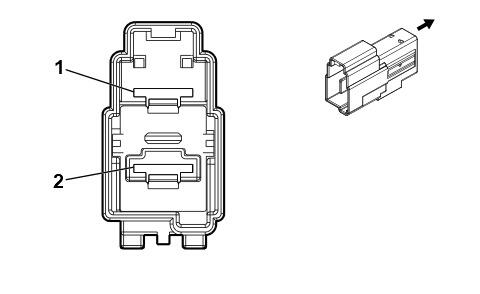

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-21 (RD) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 16 | BK | 1050 | Ground | I | - |
| 2 | 16 | RD / GY | 642 | Battery Positive Voltage | I | - |
