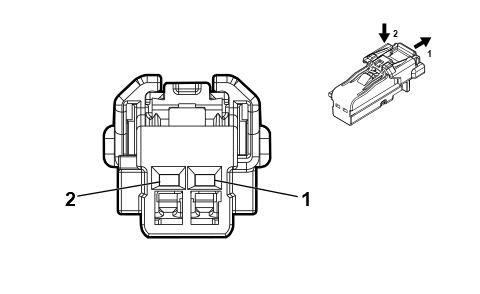

E31L Sunshade Mirror Lamp - Left
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 35327306
- Service Connector: 84867147
- Description: 2-Way F 1.2 MCON Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU / GN |
4785 |
Interior Lamp Overhead Enable Signal |
I |
- |
| 2 |
0.5 |
BK |
1850 |
Ground |
I |
- |
