Rear Door Trim Harnesses

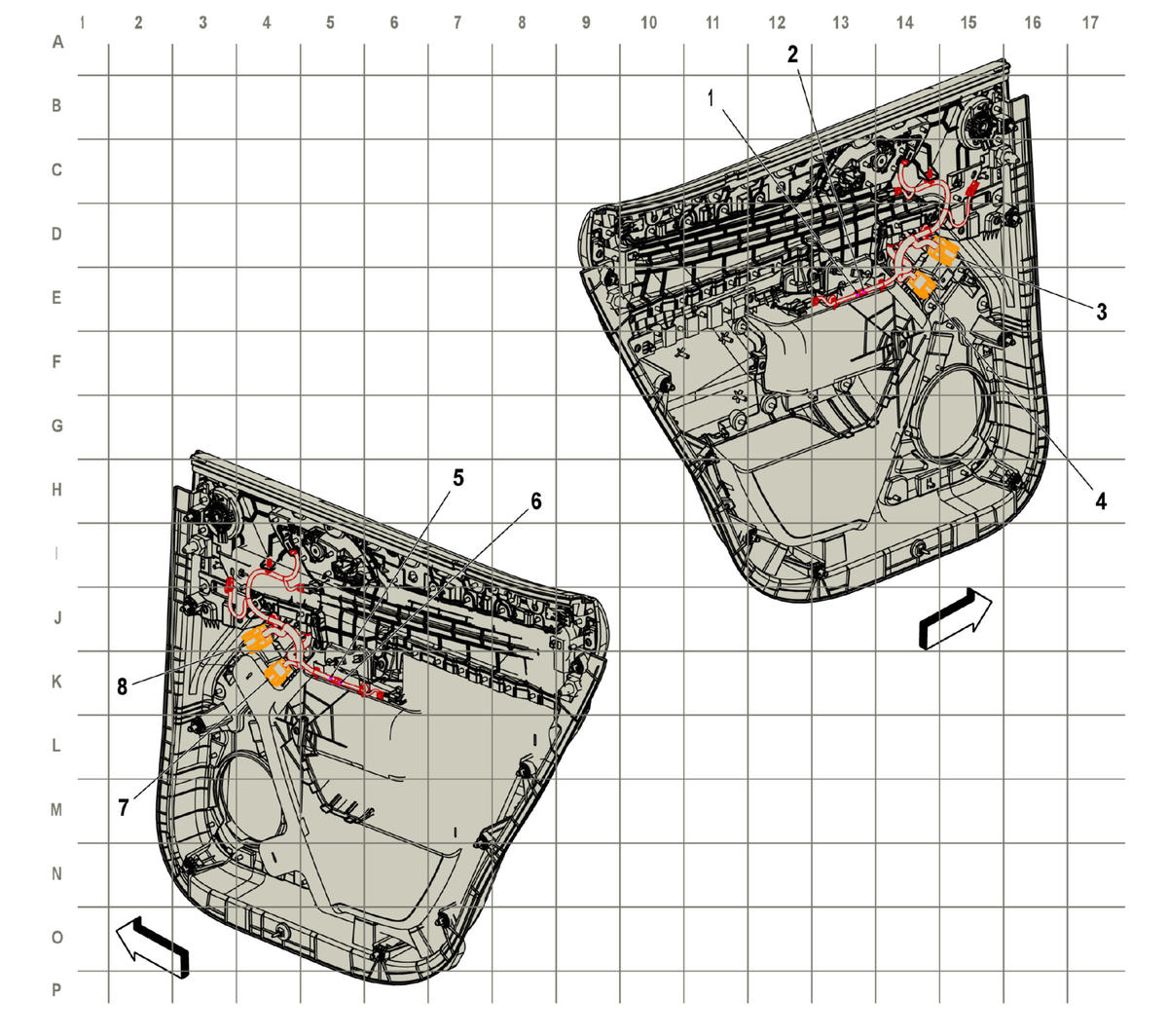

Rear Door Trim Harnesses
| Harness Name | Callout |
|---|---|
| J806 Right Rear Door Trim Harness | 1 |
| J805 Right Rear Door Trim Harness | 2 |
| X806 Right Rear Door Harness to Right Rear Door Trim Harness X806 Right Rear Door Harness to Right Rear Door Trim Harness | 3 |
| X805 Right Rear Door Harness to Right Rear Door Trim Harness X805 Right Rear Door Harness to Right Rear Door Trim Harness | 4 |
| J705 Left Rear Door Trim Harness | 5 |
| J706 Left Rear Door Trim Harness | 6 |
| X705 Left Rear Door Harness to Left Rear Door Trim Harness X705 Left Rear Door Harness to Left Rear Door Trim Harness | 7 |
| X706 Left Rear Door Harness to Left Rear Door Trim Harness X706 Left Rear Door Harness to Left Rear Door Trim Harness | 8 |
