Rear Door Harnesses (SWB)
Rear Door Harnesses (SWB)

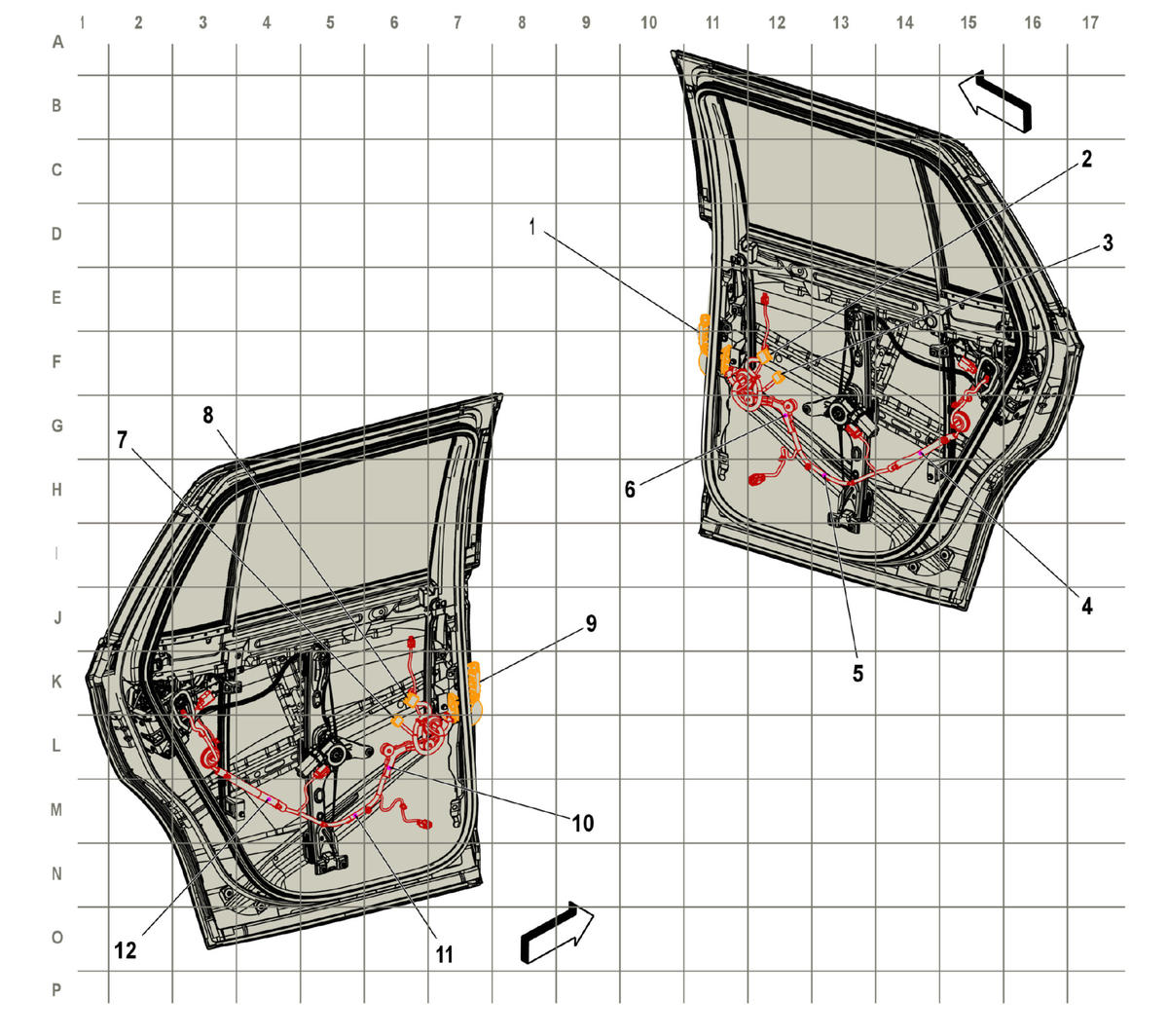

| Harness Name | Callout |
|---|---|
| X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness | 1 |
| X806 Right Rear Door Harness to Right Rear Door Trim Harness X806 Right Rear Door Harness to Right Rear Door Trim Harness | 2 |
| X805 Right Rear Door Harness to Right Rear Door Trim Harness X805 Right Rear Door Harness to Right Rear Door Trim Harness | 3 |
| J802 Right Rear Door Harness | 4 |
| J800 Right Rear Door Harness | 5 |
| J801 Right Rear Door Harness | 6 |
| X705 Left Rear Door Harness to Left Rear Door Trim Harness X705 Left Rear Door Harness to Left Rear Door Trim Harness | 7 |
| X706 Left Rear Door Harness to Left Rear Door Trim Harness X706 Left Rear Door Harness to Left Rear Door Trim Harness | 8 |
| X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness | 9 |
| J700 Left Rear Door Harness | 10 |
| J701 Left Rear Door Harness | 11 |
| J702 Left Rear Door Harness | 12 |
