Passenger Door Trim Harness

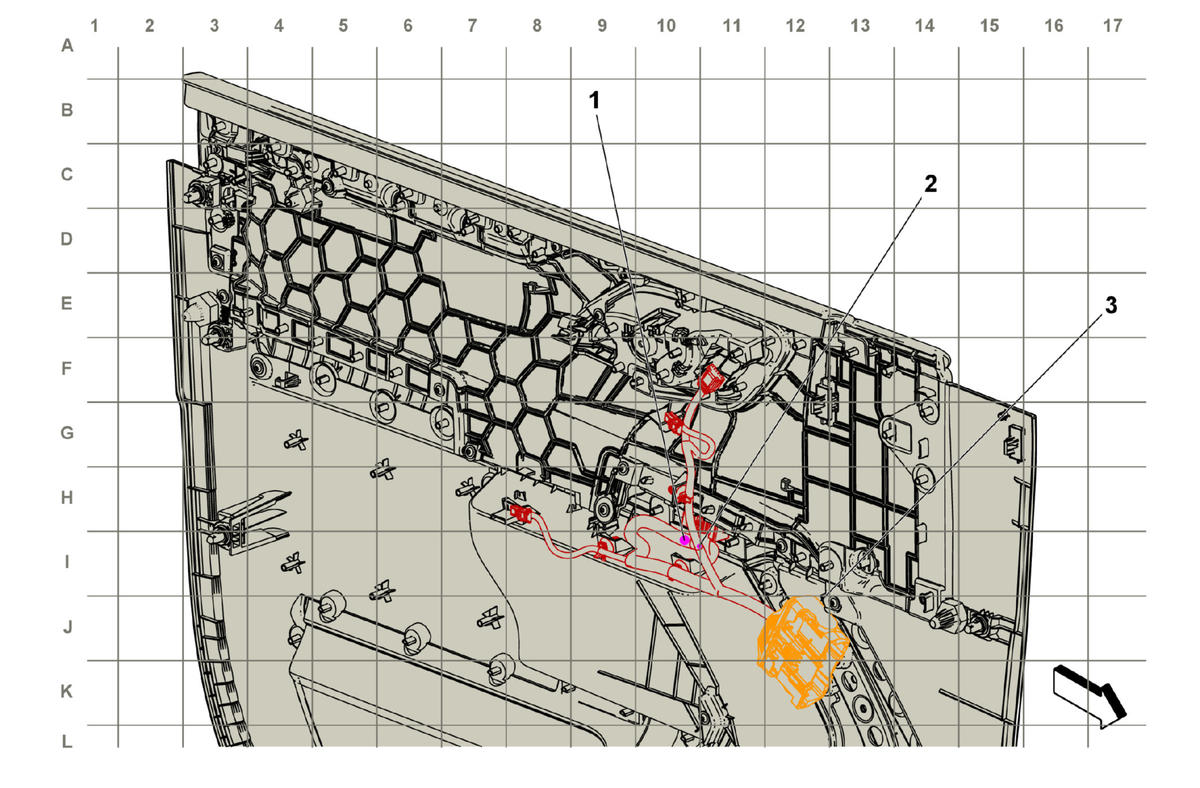

GM5515652Courtesy of GENERAL MOTORS COMPANY
Passenger Door Trim Harness

Harness Name Callout
J606 Passenger Door Trim Harness 1
J605 Passenger Door Trim Harness 2
X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness 3
