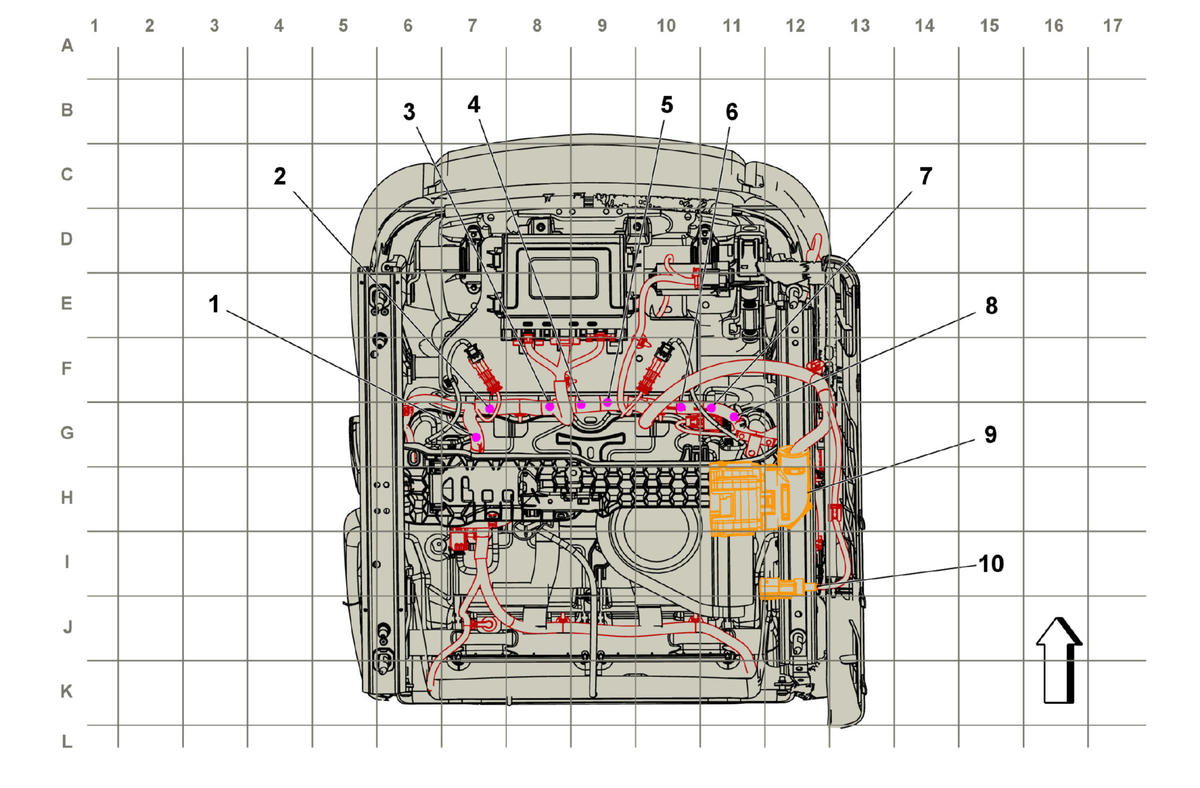

Passenger Compartment - Driver Seat Harness
Passenger Compartment - Driver Seat Harness
| Harness Name | Callout |
|---|---|
| J312 Driver Seat Harness (AVK) | 1 |
| J316 Driver Seat Harness (A45) | 2 |
| J315 Driver Seat Harness (KQV) | 3 |
| J310 Driver Seat Harness (A45/AUN) | 4 |
| J313 Driver Seat Harness | 5 |
| J311 Driver Seat Harness (A45/AVU) | 6 |
| J314 Driver Seat Harness | 7 |
| J317 Door Sill Plate Lamp Accessory Harness (S0M) | 8 |
| X310 Driver Seat Harness to Body Harness X310 Driver Seat Harness to Body Harness | 9 |
| X311 Body Harness to Driver Seat Harness (UW9) X311 Body Harness to Driver Seat Harness (UW9) | 10 |
