Passenger Compartment - 3rd Row Seat Harness

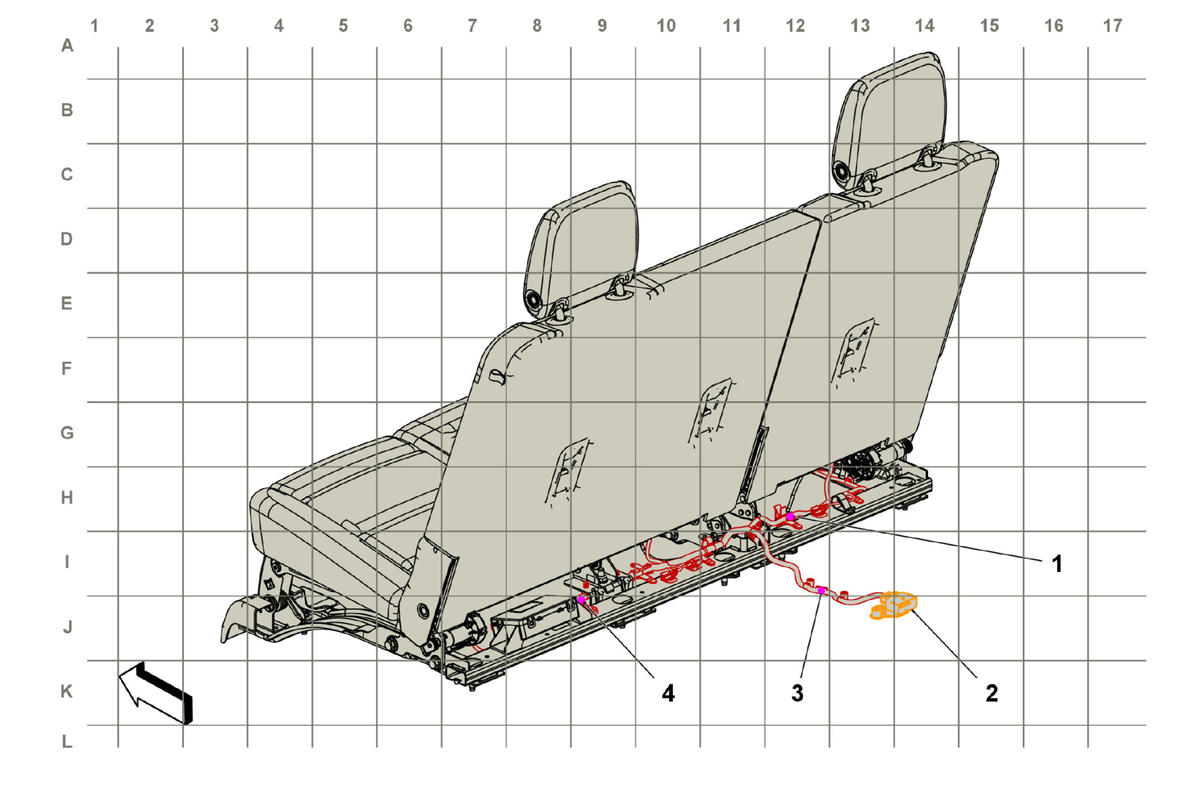

GM5834968Courtesy of GENERAL MOTORS COMPANY
Passenger Compartment - 3rd Row Seat Harness

Harness Name Callout
J440 Row 3 Seat Harness (AS8) 1
X346 Body Harness to 3rd Row Seat Harness (AS8) X346 Body Harness to 3rd Row Seat Harness (AS8) 2
J366 3rd Row Seat Harness (UH6) 3
J441 Row 3 Seat Harness (AS8) 4
