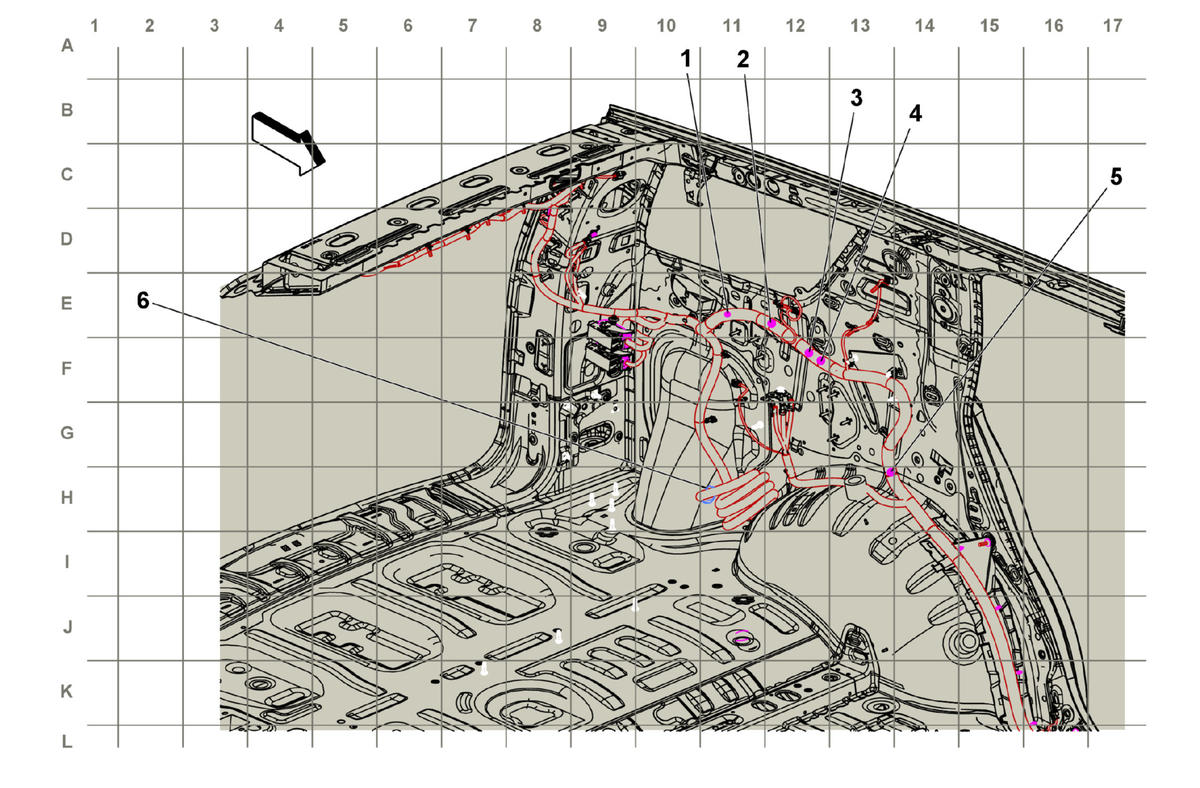

Luggage Compartment - Body Harness - Left Rear (5W4/9C1)
 Courtesy of GENERAL MOTORS COMPANY
|
Luggage Compartment - Body Harness - Left Rear (5W4/9C1)
| Harness Name |
Callout |
| J337 Body Harness (5W4/9C1) |
1 |
| J417 Body Harness (5W4/9C1) |
2 |
| J416 Body Harness (5W4/9C1) |
3 |
| J415 Body Harness (5W4/9C1) |
4 |
| J400 Body Harness |
5 |
| W12RCL Blunt Cut - Left Rear Cargo Trim (5W4/9C1) |
6 |
