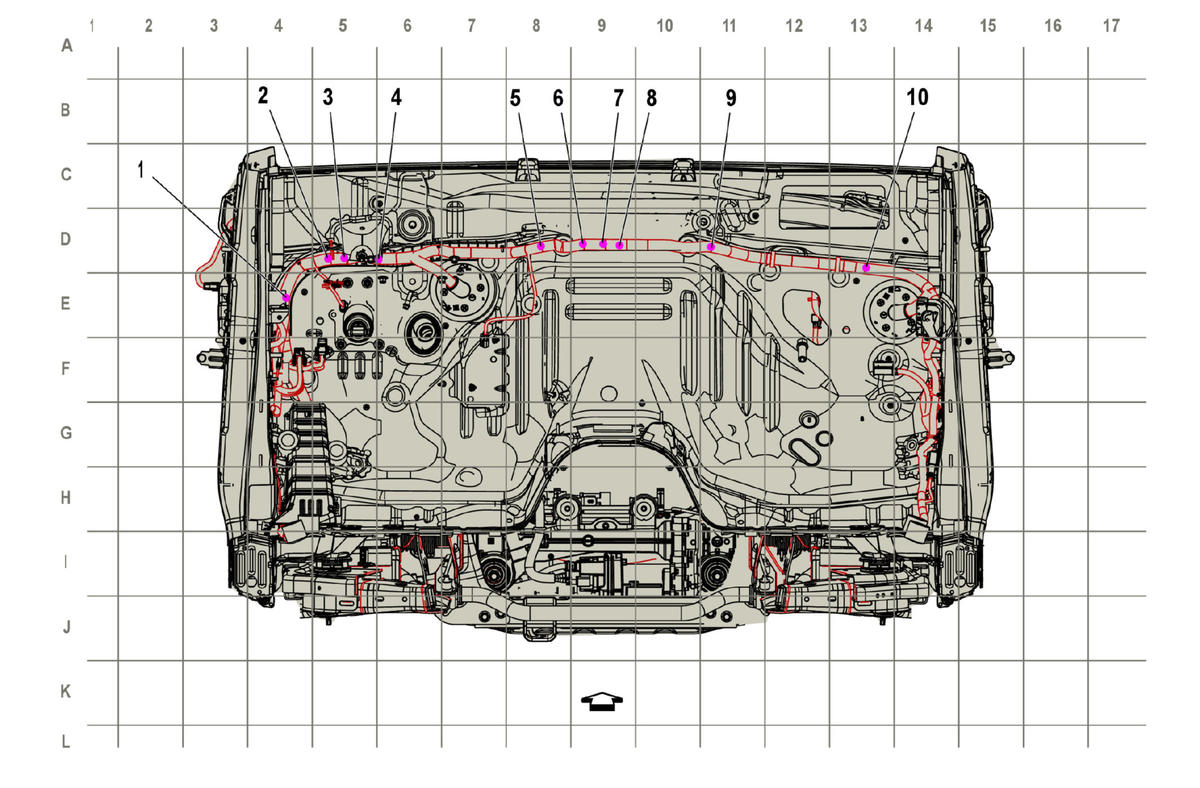

Instrument Panel - Body Harness - Front (5W4/9C1)
 Courtesy of GENERAL MOTORS COMPANY
|
Instrument Panel - Body Harness - Front (5W4/9C1)
| Harness Name |
Callout |
| J210 Body Harness |
1 |
| J209 Body Harness |
2 |
| J208 Body Harness |
3 |
| J207 Body Harness |
4 |
| J201 Body Harness |
5 |
| J434 Body Harness (5W4/9C1) |
6 |
| J203 Body Harness |
7 |
| J433 Body Harness (5W4/9C1) |
8 |
| J265 Body Harness |
9 |
| J261 Body Harness |
10 |
