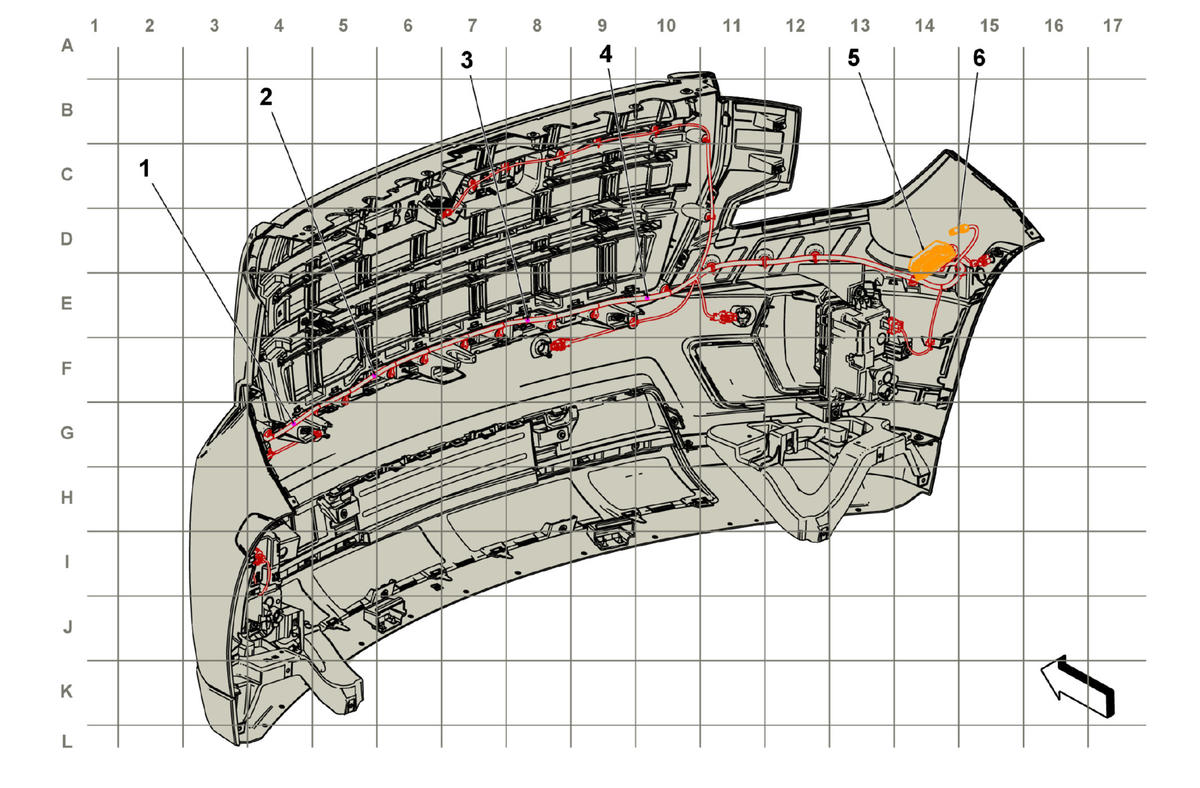

Front of Vehicle - Front Fascia Harness (Z88)
Front of Vehicle - Front Fascia Harness (Z88)
| Harness Name | Callout |
|---|---|
| J105 Front Fascia (T40) | 1 |
| J103 Front Fascia (UD5) | 2 |
| J106 Front Fascia (T40) | 3 |
| J102 Front Fascia (UD5) | 4 |
| X108 Front Fascia Harness to Body Harness X108 Front Fascia Harness to Body Harness | 5 |
| X107 Front Fascia Harness to Body Harness (UV2) X107 Front Fascia Harness to Body Harness (UV2/UVS) | 6 |
