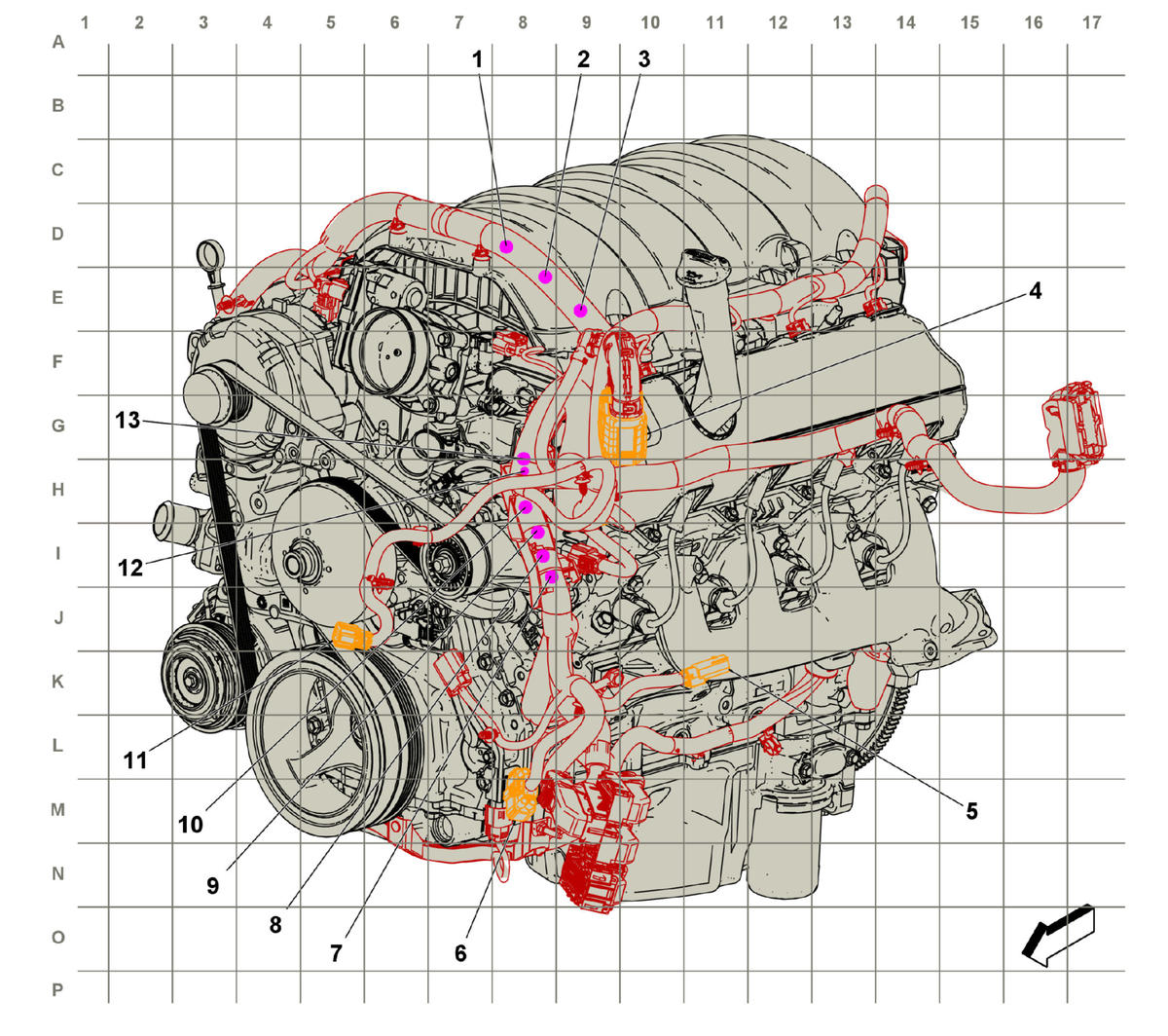

Engine Compartment - Engine Harness - Left Front (L84/L87)
Engine Compartment - Engine Harness - Left Front (L84/L87)
| Harness Name | Callout |
|---|---|
| J161 Engine Harness (L84/L87) | 1 |
| J158 Engine Harness | 2 |
| J159 Engine Harness | 3 |
| X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness | 4 |
| X116 Front Axle Harness to Engine Harness (NP0/NQH) X116 Front Axle Harness to Engine Harness (NP0/NQH) | 5 |
| X126 Engine Harness to Chassis Harness X126 Engine Harness to Chassis Harness | 6 |
| J152 Engine Harness (L84/L87) | 7 |
| J151 Engine Harness (L84/L87) | 8 |
| J154 Engine Harness | 9 |
| J157 Engine Harness (L84/L87) | 10 |
| X114 Engine Harness to Active Grille Air Shutter Harness (VTI/WMI) X114 Engine Harness to Active Grille Air Shutter (VTI+(L84/L87)) | 11 |
| J155 Engine Harness (L84/L87) | 12 |
| J156 Engine Harness (L84/L87) | 13 |
