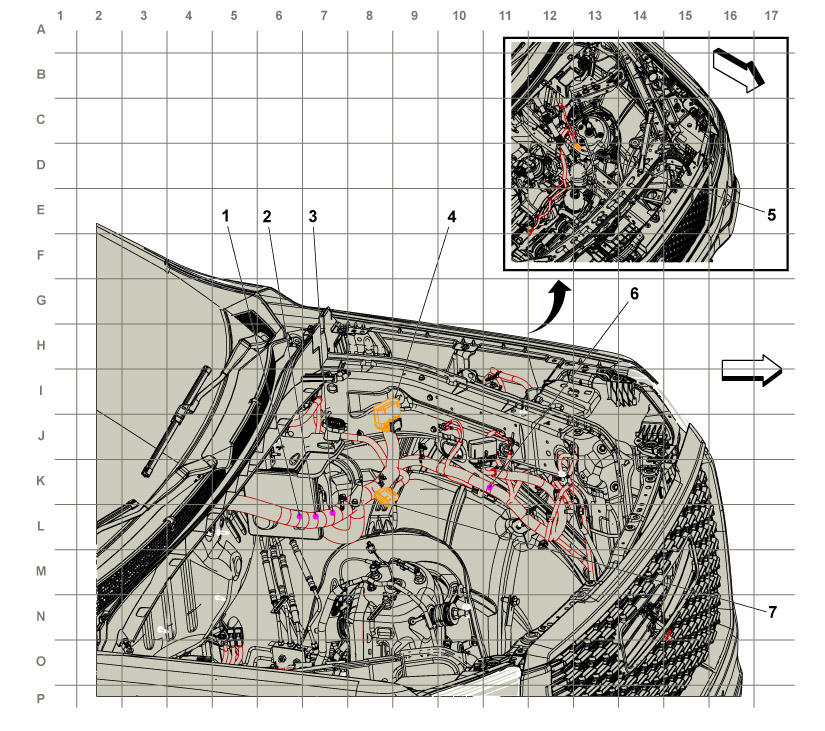

Engine Compartment - Body Harness - Right
Engine Compartment - Body Harness - Right
| Harness Name | Callout |
|---|---|
| J134 Body Harness | 1 |
| J133 Body Harness | 2 |
| J132 Body Harness | 3 |
| X140 Chassis Harness to Body Harness X140 Chassis Harness to Body Harness | 4 |
| X116 Front Axle Harness to Engine Harness (NP0/NQH) X116 Front Axle Harness to Engine Harness (NP0/NQH) | 5 |
| J131 Body Harness | 6 |
| X138 Body Harness to Chassis Harness X138 Body Harness to Chassis Harness | 7 |
