Driver Door Harness
Driver Door Harness

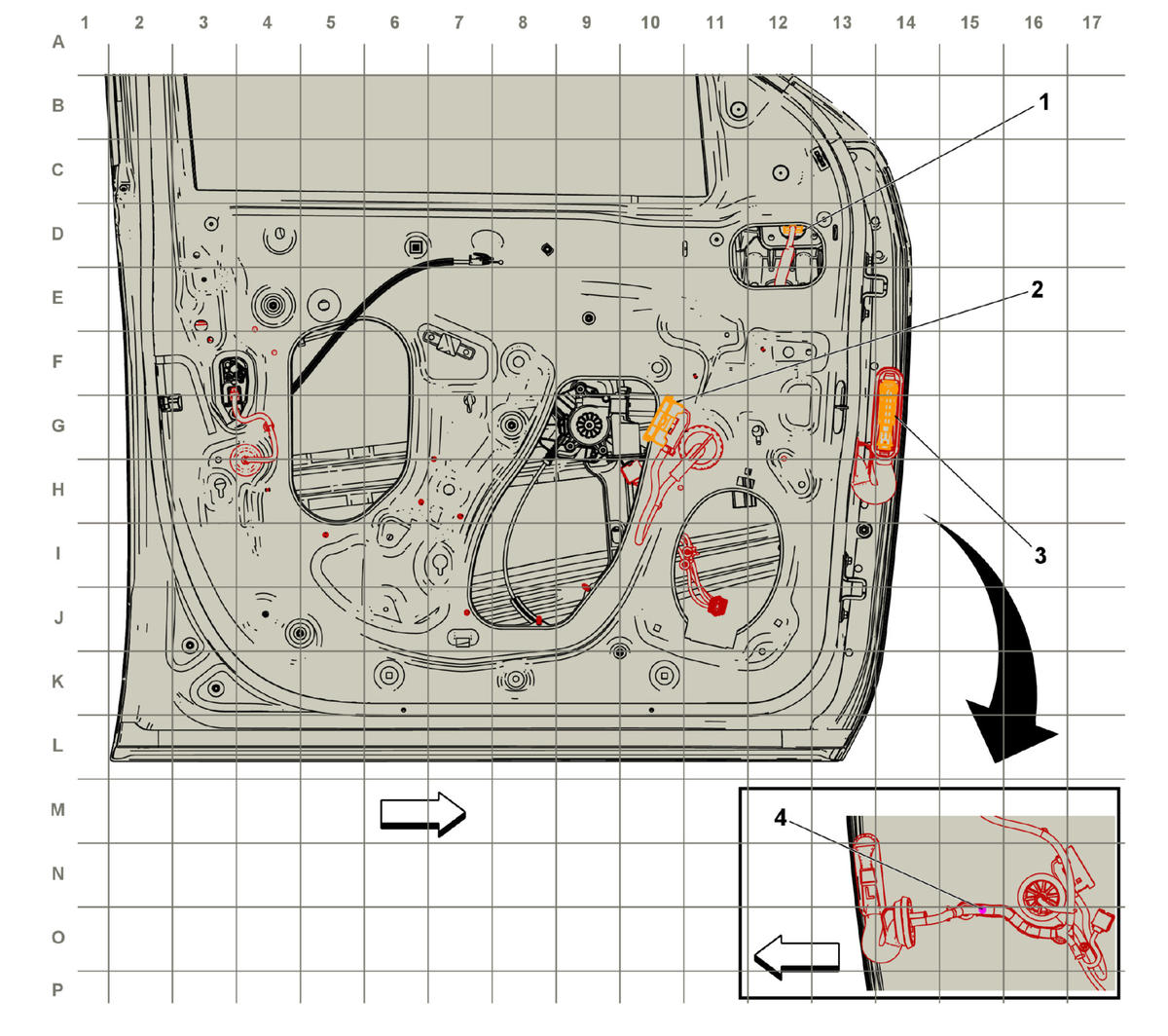

| Harness Name | Callout |
|---|---|
| X510 Driver Door Harness to Driver Outside Rearview Mirror Harness X510 Driver Door Harness to Driver Outside Rearview Mirror | 1 |
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness | 2 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness | 3 |
| J500 Driver Door Harness | 4 |
