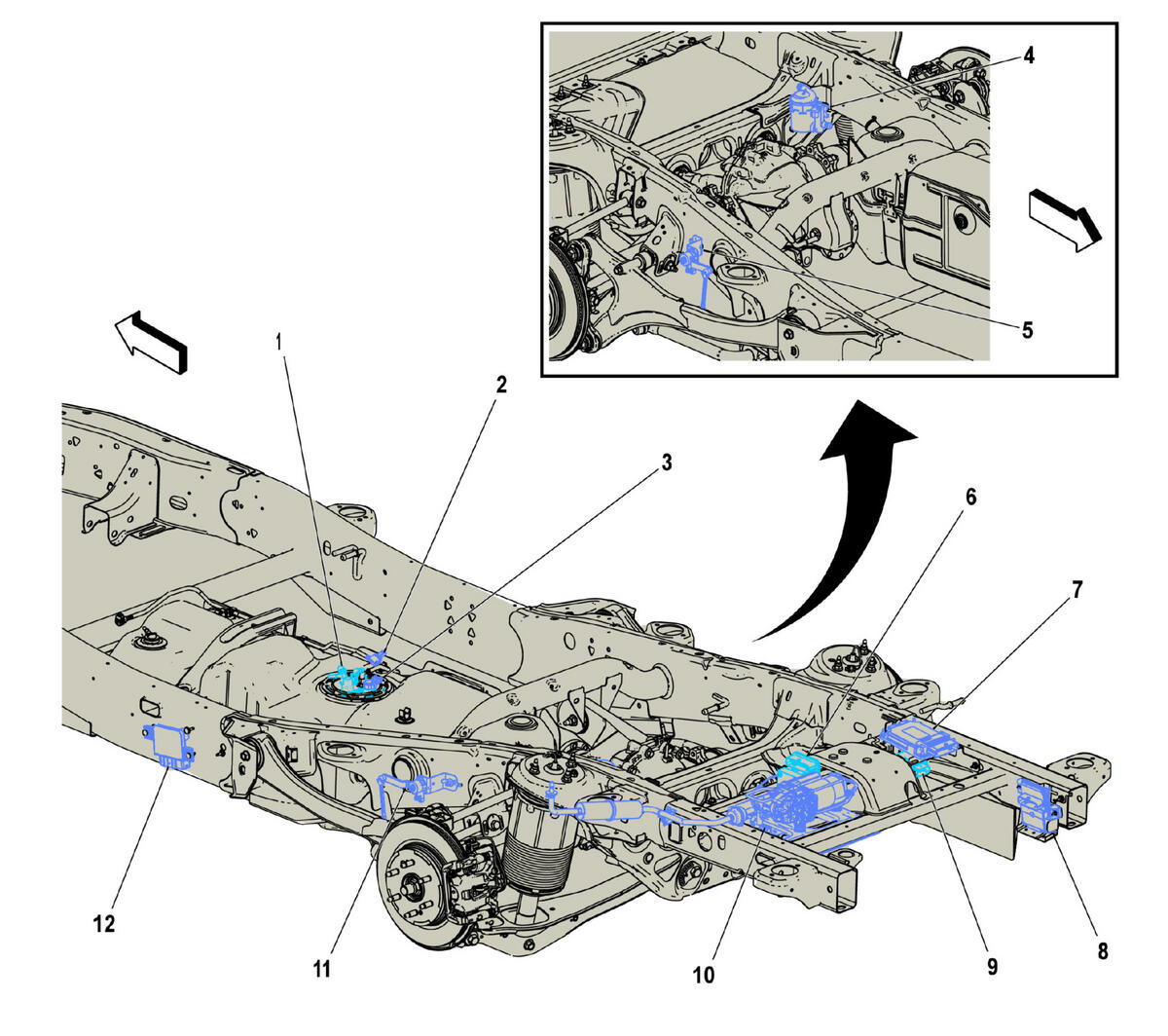

Underbody Components - Rear
Underbody Components - Rear
| Items |
|---|
| 1. A7 Fuel Tank Fuel Pump Module A7 Fuel Tank Fuel Pump Module |
| 2. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor (L84/L87) , or B47 Fuel Pressure Sensor (LM2) . |
| 3. B150 Fuel Tank Pressure Sensor (L84/L87) B150 Fuel Tank Pressure Sensor |
| 4. Q13 Evaporative Emission Canister Vent Solenoid Valve Q13 Evaporative Emission Canister Vent Solenoid Valve (L84/L87) |
| 5. B11RR Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - Right (F47) B11RR Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - Right (F47) |
| 6. K5 Automatic Level Control Module (F47) K5 Automatic Level Control Module (F47) |
| 7. K19 Suspension Control Module (Z95) K19 Suspension Control Module (Z95) |
| 8. K68 Trailer Lamp Control Module (U1D) K68 Trailer Lamp Control Module (U1D) |
| 9. K67 Trailer Brake Control Module (JL1) K67 Trailer Brake Control Module (JL1) |
| 10. G4 Automatic Level Control Air Compressor (F47) G4 Automatic Level Control Air Compressor (F47) |
| 11. B11LR Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - Left (F47) B11LR Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - Left (F47) |
| 12. K111 Fuel Pump Power Control Module K111 Fuel Pump Power Control Module |
