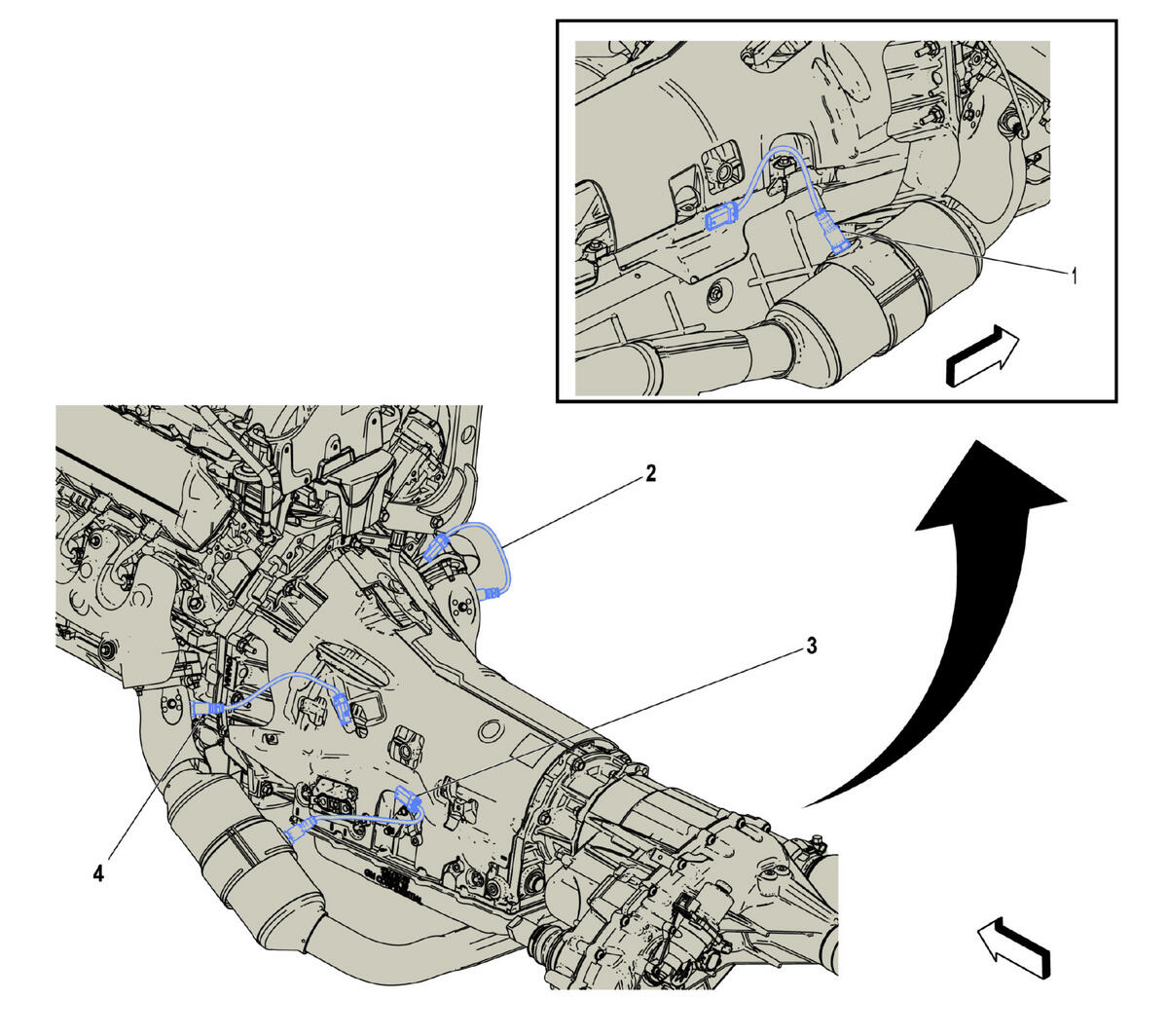

Engine Components - Oxygen Sensors (L84/L87)
Engine Components - Oxygen Sensors (L84/L87)
| Component Name | Callout |
|---|---|
| B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L84/L87) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L84/L87) | 1 |
| B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L84/L87) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L84/L87) | 2 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (L84/L87) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (L84/L87) | 3 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L84/L87) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L84/L87) | 4 |
