Passenger Compartment Components - Right Rear

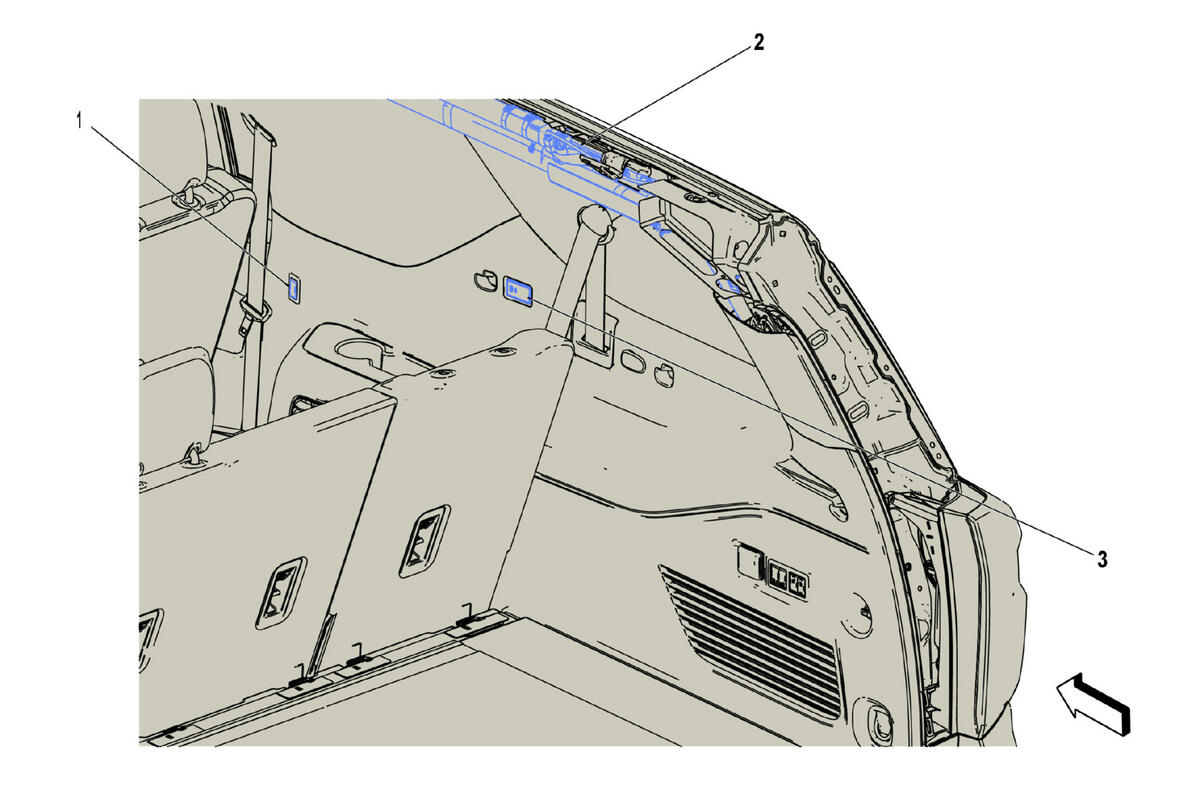

GM5548914Courtesy of GENERAL MOTORS COMPANY
Passenger Compartment Components - Right Rear

Component Name Callout
S143R Rear Seat Back Folding Switch - 2nd Row Right (ATN/ATT) S143R Rear Seat Back Folding Switch - 2nd Row Right (ATN/ATT) 1
F105RA Front and Rear and 3rd Row Roof Rail Airbag - Right F105RA Front and Rear and 3rd Row Roof Rail Airbag - Right 2
X92BCR USB Receptacle - 3rd Row Seat Right (USS) X92BCR USB Receptacle - 3rd Row Seat Right (USS) 3
