Instrument Panel Accent Lamps

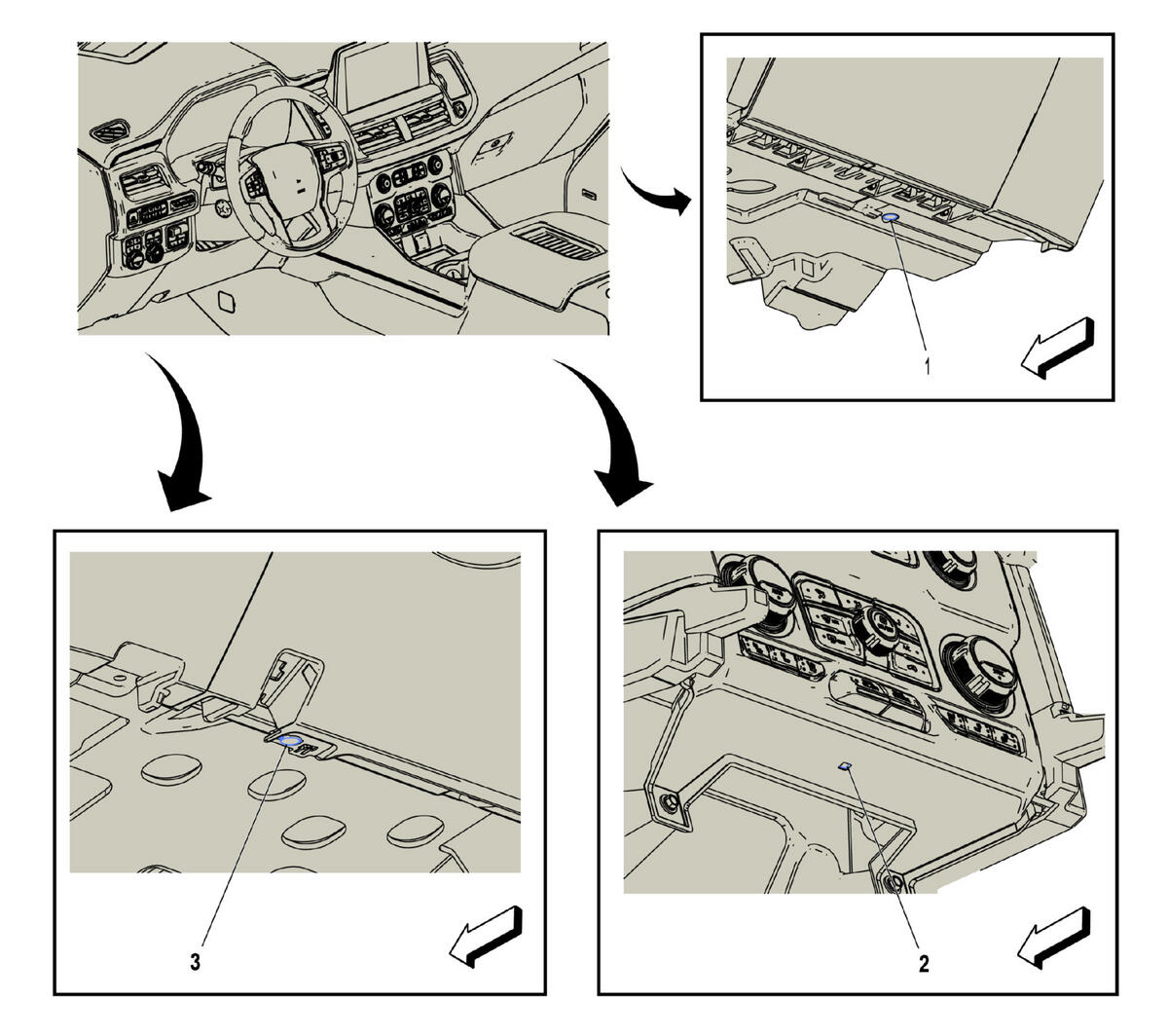

GM5508907Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Accent Lamps

Harness Name Callout
E8VA Front Floor Courtesy Lamp - Left E8VA Front Floor Courtesy Lamp - Left 1
E88 Front Floor Console Bin Lamp (D07/DCK) E88 Front Floor Console Bin Lamp (D07/DCK) 2
E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right 3
